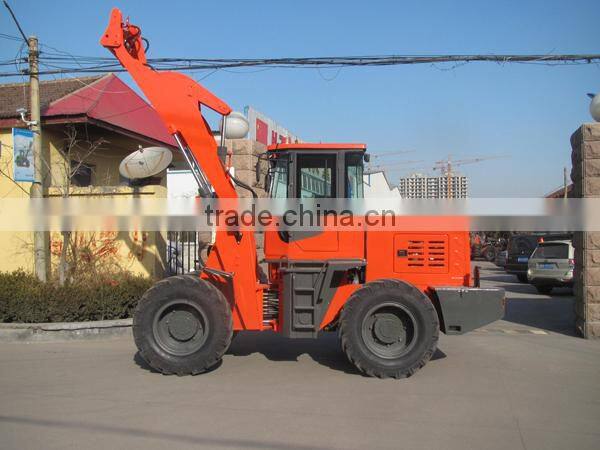

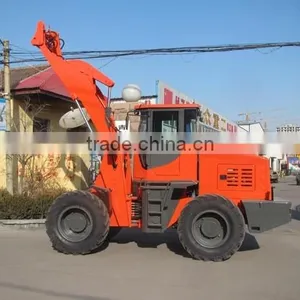

Help CenterRussia NEO Wheel Loader Supplier Manufacturer S300 / S200 / 200 / 300 and S180 With PT Certification
Related Products
-
HZM932 3.2ton Strong Power Front End Loader With ceNegotiableMOQ: 1 Set -
HZM 932 Wheel Loader With 6 Cylinders Engine in DubaiNegotiableMOQ: 1 Set
-
Qingzhou 3ton Cheap Front Loader HZM S300A Hot in Russia With ceNegotiableMOQ: 1 Set
-
NEO S300 Russian Front Loader Hot With YTO EngineNegotiableMOQ: 1 Set
-
Hot Sale Qingzhou Pay Loader ce NEO S300 Chinese Loader for Sale ZL28FNegotiableMOQ: 1 Set
Specifications
CE ISO9001Fully hydraulic steering system
Hydaulic quick change
Floating position function
Agricultural tires 16/70-24
Specification | overall weight(kg) | 6200KG |
L×W×H(mm) | 6700x2105x2900 | |
rated bucket capacity(m3) | 1.2 | |
Rated load(kg) | 3000 | |
Maximum dump height (mm) | 3200/3500 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 48.8KN | |

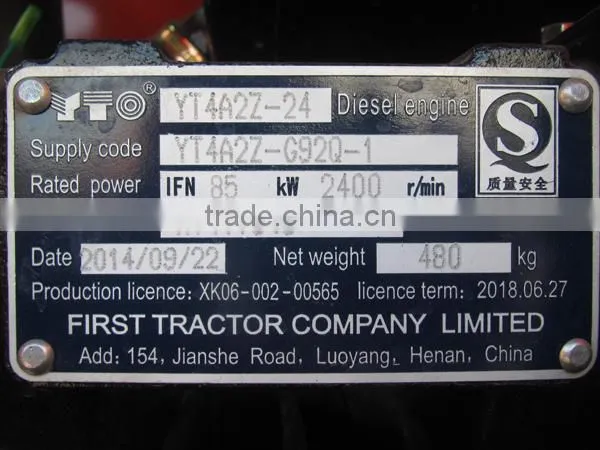

Engine | Model | weichai 4RMAZG / YTO 4A2-24 |
Type | In-line arrangement, direct injection, Water cooling, four-stroke | |
Rated power(kw) |
83kw / 85kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ280 |
Type | single grade three componets | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF20.2C |
Working pump | CBF18 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc on four wheel |

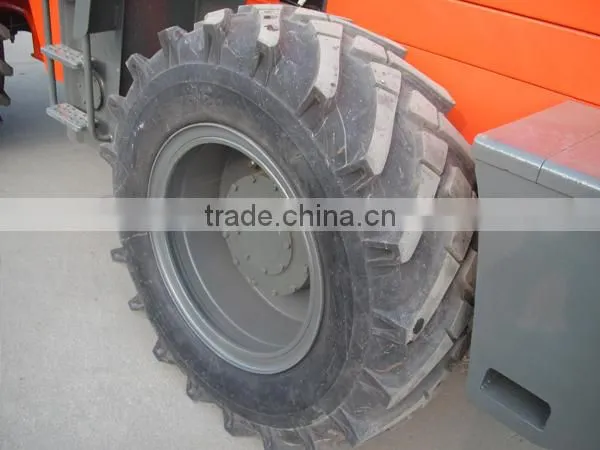

Tyres | Standard tyres | 16/70-24 |
Optional wide tyres |
|

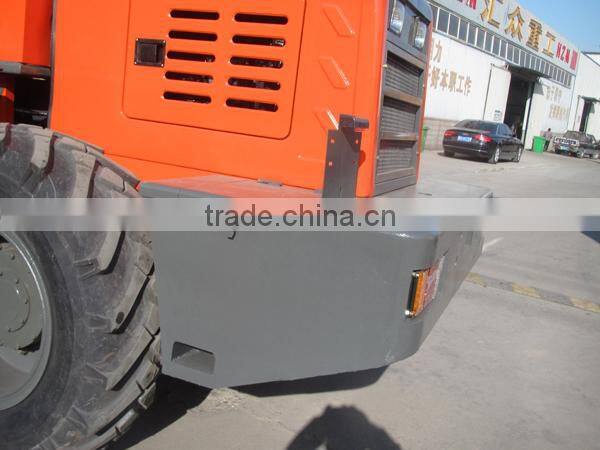

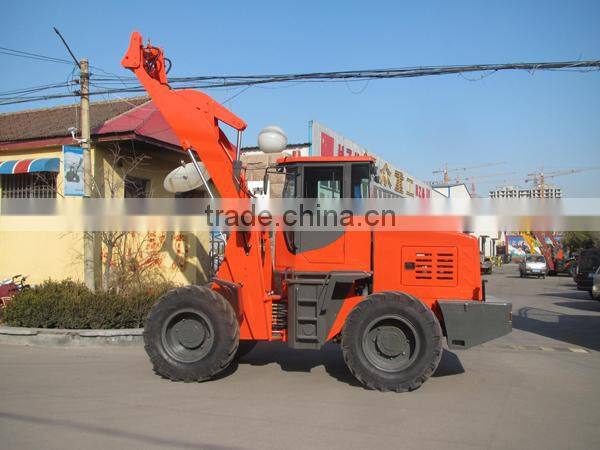

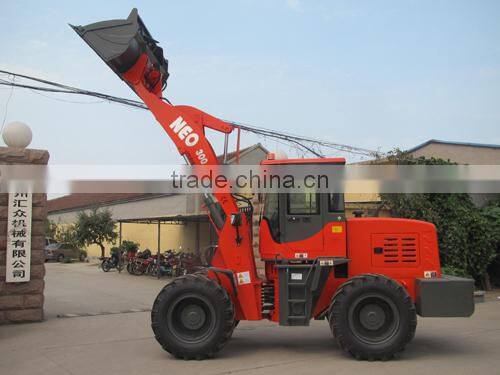

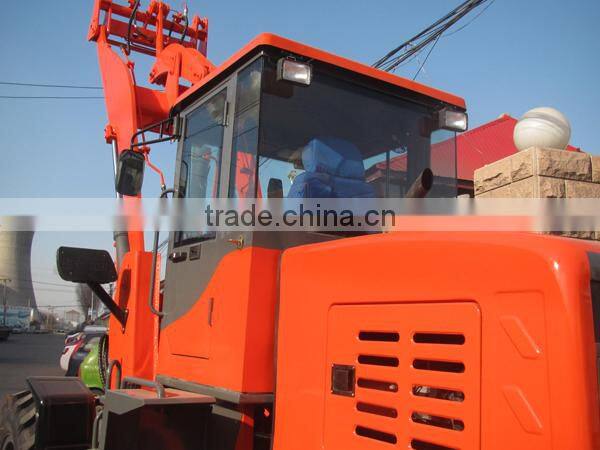

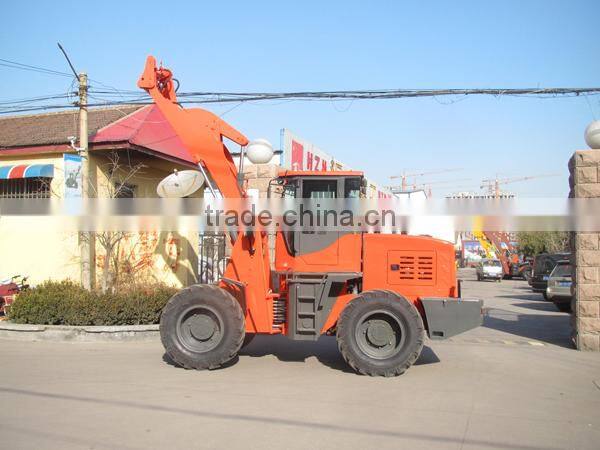

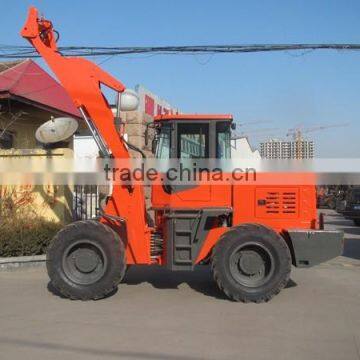

with NEO 300 wheel loader in our factory
