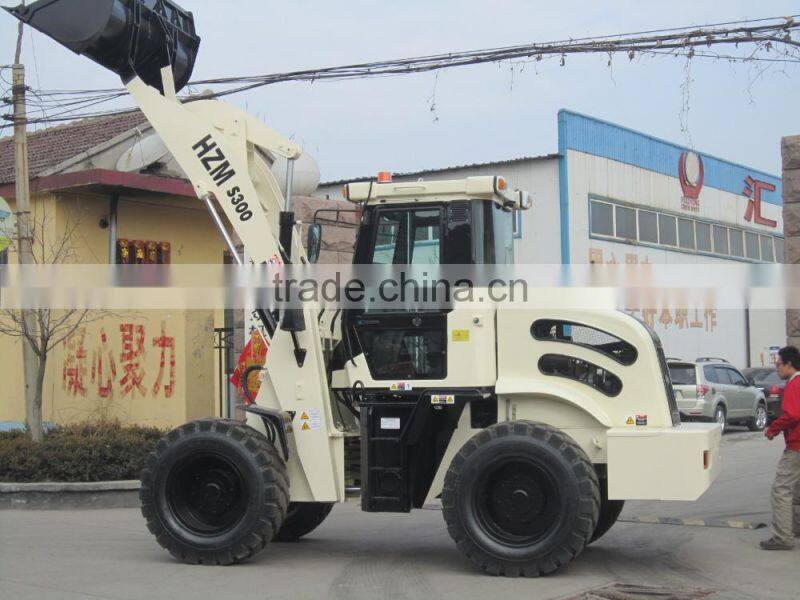

HZM 300 Wheel Loader With ce

Name: HZM 300 Wheel Loader With ce
Brand: Huizhong
Availability: InStock

FOB Price

US$ 14,200 - 19,300 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Streamlined appearance design,elegant and generous.

2.YTO(85KW)strong power engine with a stable performance.

3.Fully hydraulic steering systm,easy to operation

4.New sealing cab,Grammer seat with a comfortable operating environment.

5.Double cabin heater,double brake pump.

6.New style tires can adapt for different working environment

7. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.

Specifications of ZL28 loader truck

Specification	overall weight(kg)	6200KG
	L×W×H(mm)	6570x2150x2850
	rated bucket capacity(m³)	1.2
	Rated load(kg)	2800
	Maximum dump height (mm)	3200/3500
	Bucket indicator	Yes
	Max. breakout force(KN)	48.8KN
Engine	Model	YT4A2Z-24
	Type	In-line arrangement, direct injection, Water cooling, four-stroke
	Rated power(kw)	85kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	Type	single grade three componets
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF20.2C
Hydraulic system	Working pump	CBF18
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	35±1°
	Min turning radius(mm)	4500
Brake system	Brake type	Air assisted oil disc on four wheel
Tyres	Standard tyres	16/70-24
Tyres	Optional wide tyres

Attachment
