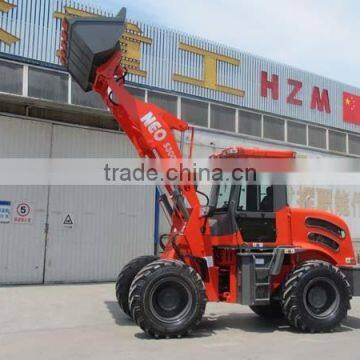

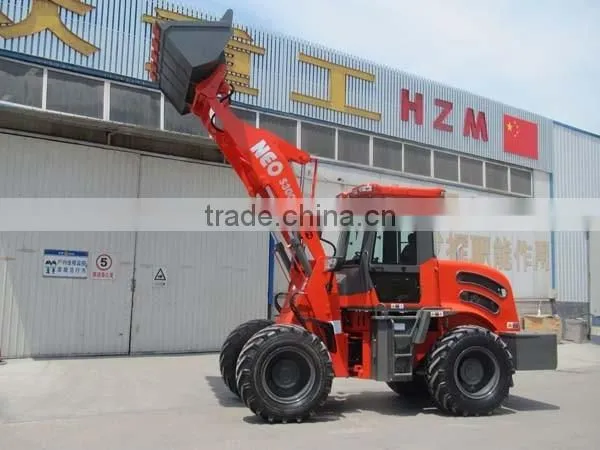

Qingzhou Shandong China Export to Russia / Europe / Canada countries HZM NEO 930 / 928 wheel loader with EPA engine

Specification

overall weight(kg)

6200KG

L×W×H(mm)

6500X2100X3050

rated bucket capacity(m³)

1.2-1.5

Rated load(kg)

3000

Maximum dump height (mm)

3600MM

Bucket indicator

Yes

Max. breakout force(KN)

48.8KN

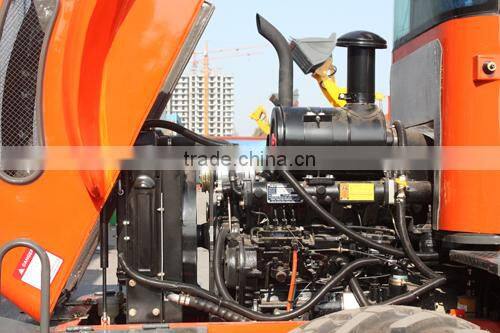

Engine

Model

YTO YT4A2Z-24

Type

      In-line arrangement, direct injection,

          Water cooling, four-stroke

Rated power(kw)

85kw

Rated speed(r/min)

2400

Transmission    system

Model of torque converter

YJ280

Type

single grade three componets

Gearbox type

Fixed-spindle power shift

Gear shift

2 gears ahead,2 gear astern

  Hydraulic system

Distribution of work valve

DF20.2C

Working pump

CBF18

   Steering system

Type

Articulated hydraulic steering

Max. turning angle

                                  35±1°

Min turning radius(mm)

4500

    Brake system

Brake type

Air assisted oil disc on four wheel

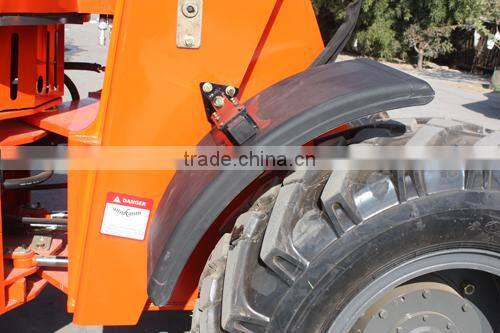

          Tyres

Standard tyres

16/70-24

Optional wide tyres

 Agricultural tire
