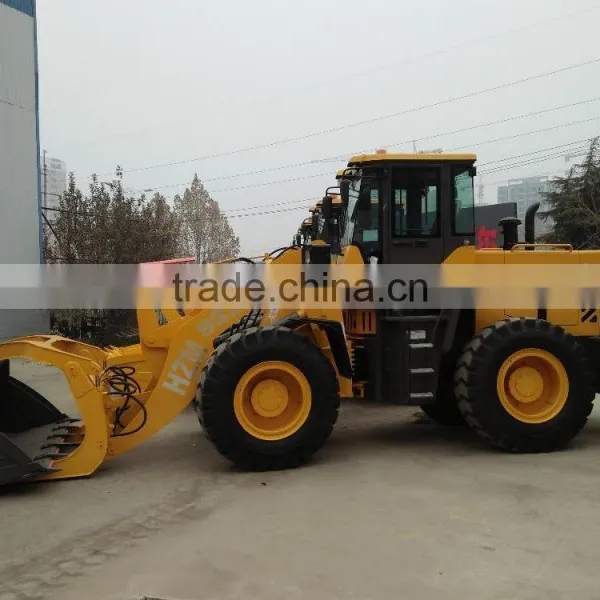

New Type HZM 932 Chinese Wheel Loader With Log Fork

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

HZM932 wheel loader:

hydraulic tramission

quick hitch,joystick,heater

different kinds of attachments

Specification	overall weight(kg)	6700
	L×W×H(mm)	6700×2250×2900
	rated bucket capacity(m³)	1.3-1.5
	Rated load(kg)	3000
	Maximum dump height (mm)	3200
	Bucket indicator	Yes
	Max. breakout force(KN)	43
Engine	Model	DEUTZ
	Type	In-line arrangement,Water cooling, four-stroke
	Rated power(kw)	92kw
	Rated speed(r/min)	2400
Transmission system	Model of torque converter	YJ280
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	ZL20B
Hydraulic system	Working pump	CBGj1045,CBGq1018
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	27±1°
	Min turning radius(mm)	3000
Brake system	Brake type	Oil brake(Vacuum booster)
Tyres	Standard tyres	16/70-24
Tyres	Optional wide tyres

Product Description

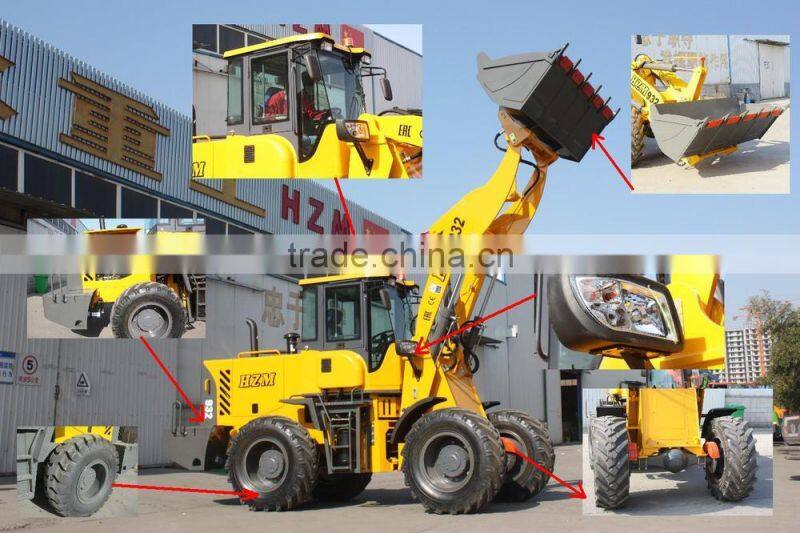

1.HZM 932 bigger wheel loaders

♦Weichai DEUTZ(6 cylinders engine)/92kw

♦ Optional engine: Cummins 6BT5.9-C125

♦ Lingong cabin(big space)

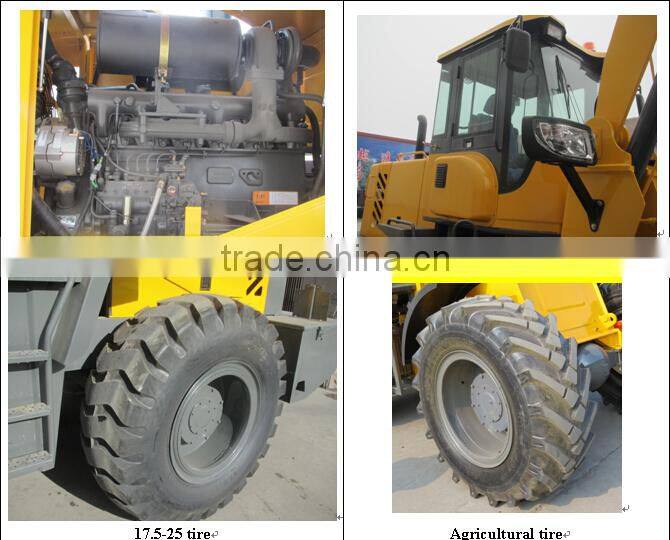

♦ Agricultural tire 16/70-24, optional is 17.5-25(big tire)

♦ Popular shape for Europe market

2.for free!!!!!!!!!!!!!!

♦ back camera

♦LED lamp on cabin and counter weight

♦ cabin double heater

♦ 220v water heater and air heater

♦ Brake cover, handle in counter weight

♦ Lots of easy-damage parts

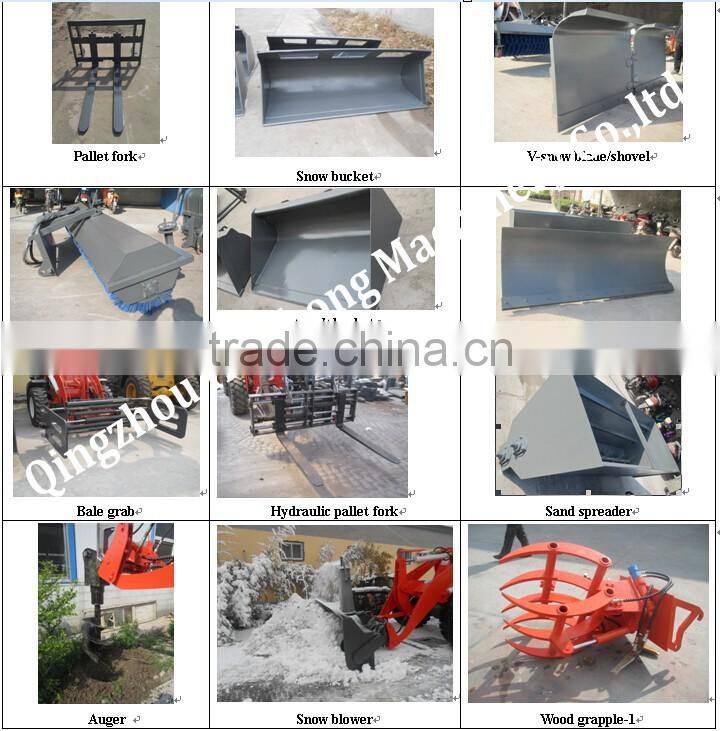

3.different kinds of attachments
