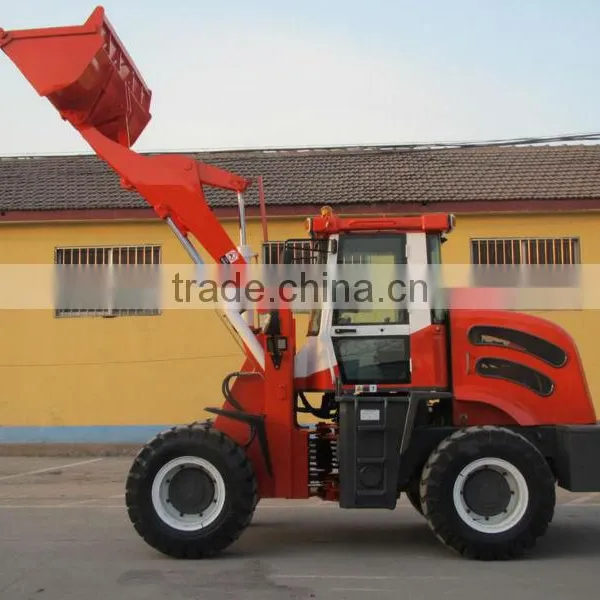

Russia market HZM ZL20 wheel loader new models with CE

Specification

overall weight(kg)

5400KG

L×W×H(mm)

5400X1960X2810

rated bucket capacity(m³)

1.3

Rated load(kg)

2000

Maximum dump height (mm)

3250

Bucket indicator

Yes

Max. breakout force(KN)

48.8KN

Engine

Model

                            YTR4108G92

Type

      In-line arrangement, direct injection,

          Water cooling, four-stroke

Rated power(kw)

60kw

Rated speed(r/min)

2400

Transmission    system

Model of torque converter

YJ280

Type

single grade three componets

Gearbox type

Fixed-spindle power shift

Gear shift

2 gears ahead,2 gear astern

  Hydraulic system

Distribution of work valve

DF20.2C

Working pump

CBF18

   Steering system

Type

Articulated hydraulic steering

Max. turning angle

                                  35±1°

Min turning radius(mm)

4500

    Brake system

Brake type

Air assisted oil disc on four wheel

          Tyres

Standard tyres

16/70-20
