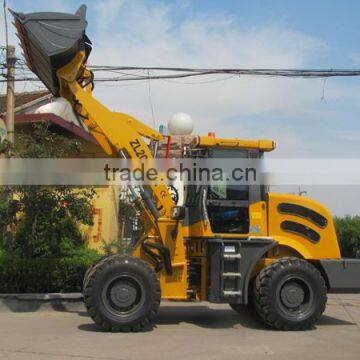

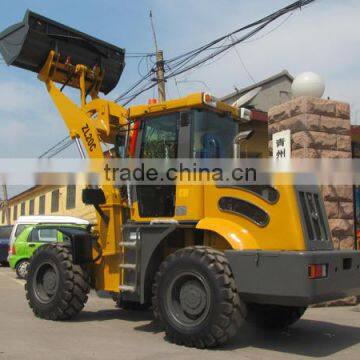

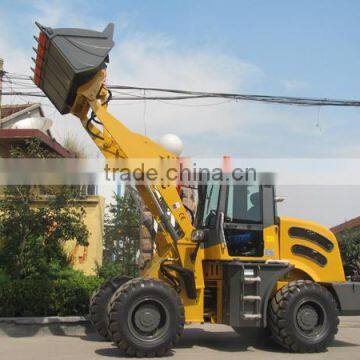

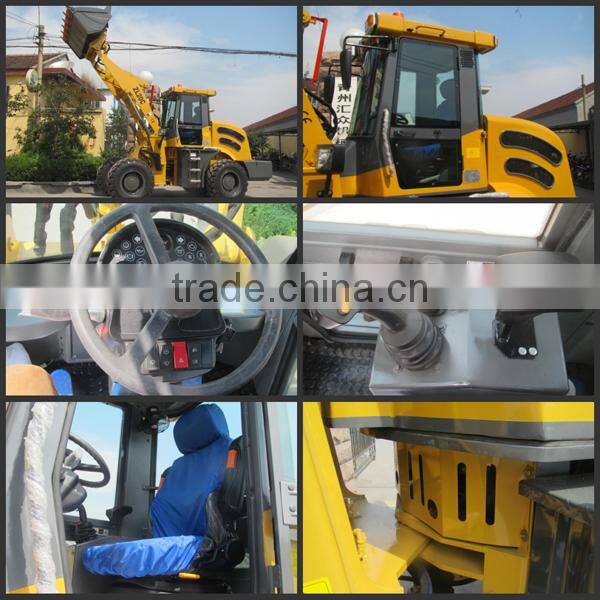

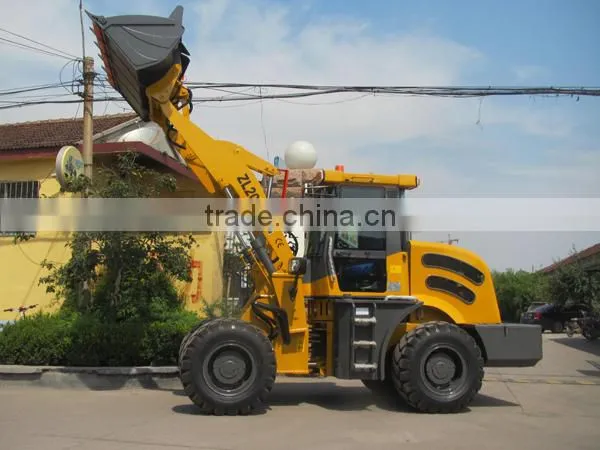

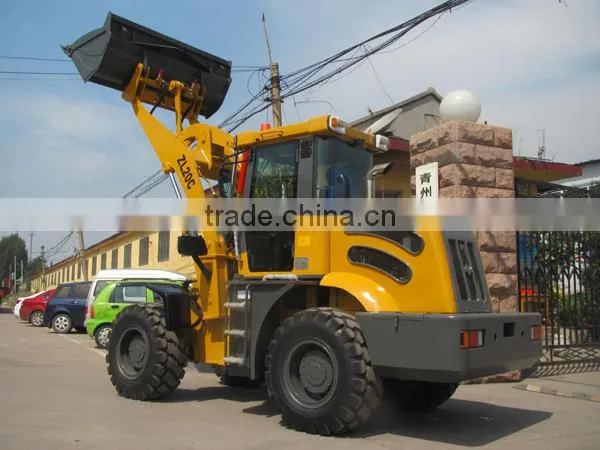

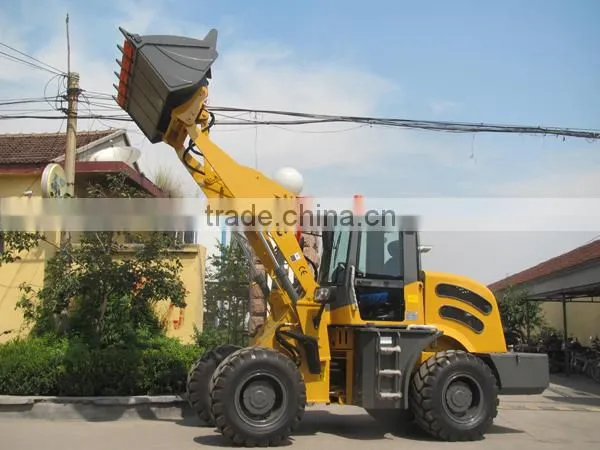

HZM Brand ZL20F Wheel Loader
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Brand Name | HZM | |
| Model Number | ZL20F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 6130X1920X2820MM | Rated Load | 2000kg | |
| Certification | CE / ROPS / EAC /ISO9001 | Warranty | 12 MONTHS, one year |
Product Description
Specification | overall weight(kg) | 5800KG |
L×W×H(mm) | 6130x1920x2820 | |
rated bucket capacity(m3) | 0.9-1.2 | |
Rated load(kg) | 2000 | |
Maximum dump height (mm) | 2850-3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 48.8KN | |
Engine | Model | WEICHAI 4RNSG3 |
Type | In-line arrangement, direct injection, Water cooling, four-stroke | |
Rated power(kw) |
60kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ280 |
Type | single grade three componets | |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF20.2C |
Working pump | CBF18 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 35±1° | |
Min turning radius(mm) | 4500 | |
Brake system | Brake type | Air assisted oil disc on four wheel |
Tyres | Standard tyres | 16/70-20 |
Optional wide tyres |
|

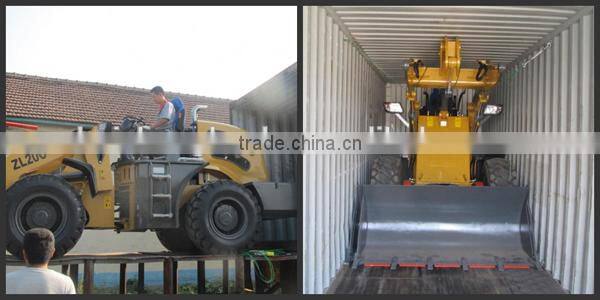

1 Unit 20GP Container hold 1 unit ZL20F wheel loader ;
1 unit 40HC Container hold 2 units ZL20F wheel loader ;
