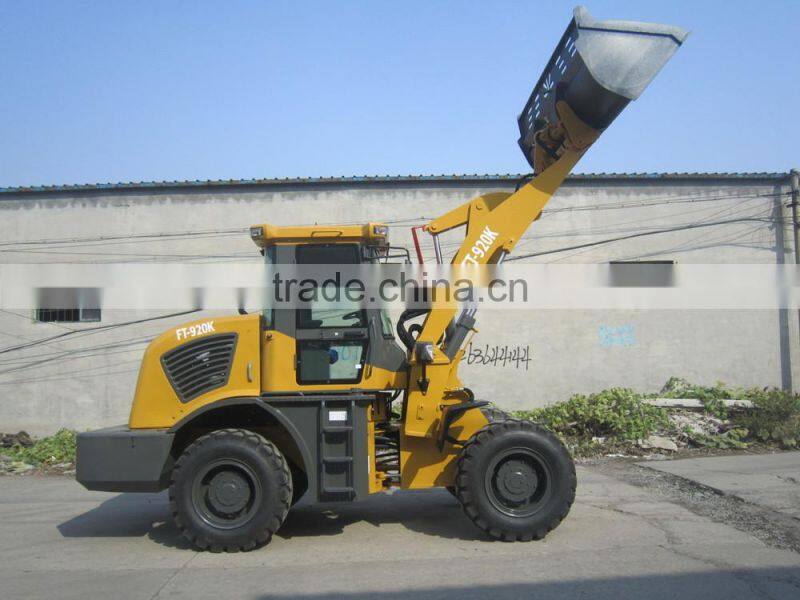

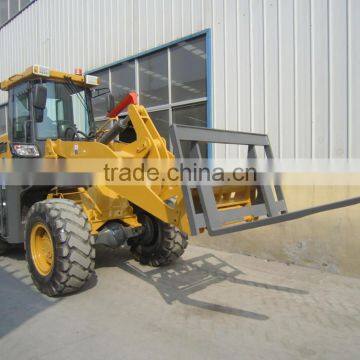

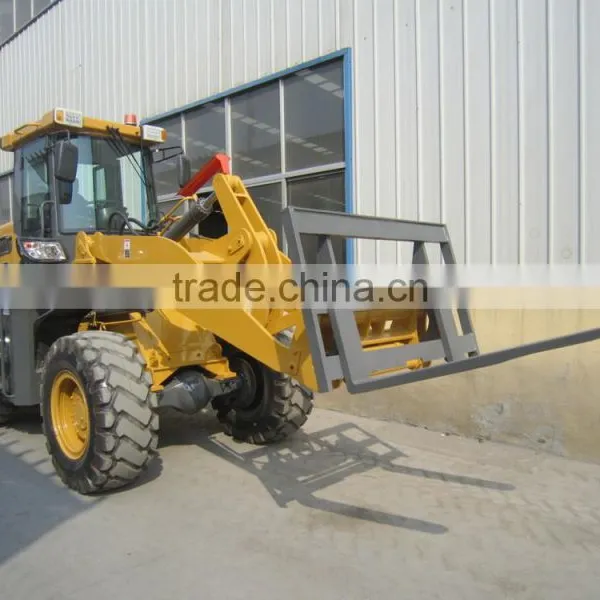

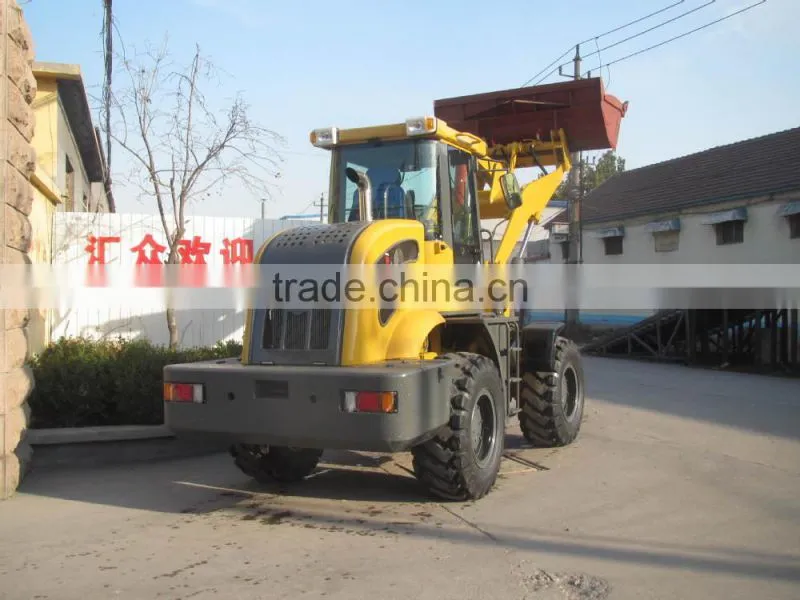

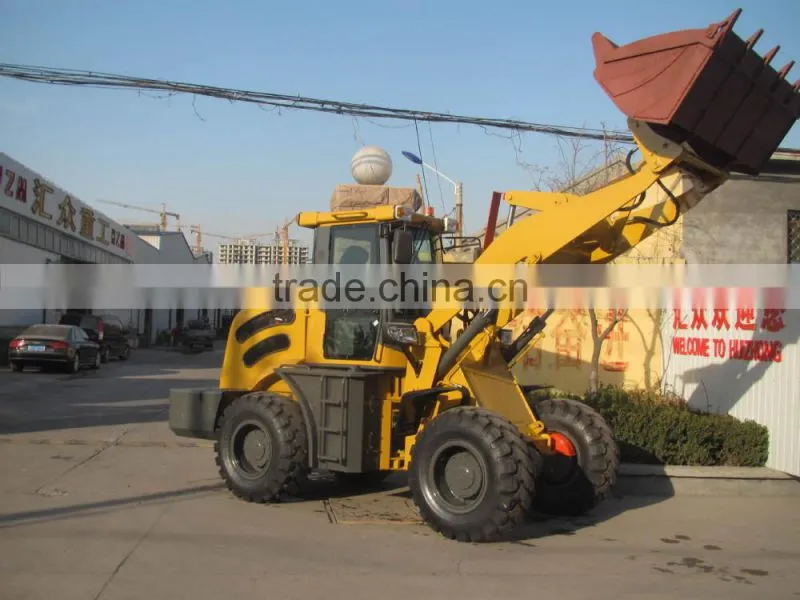

Help CenterHZM 2ton Backhoe Loader With ce
Related Products
-
ZL926 Multifunction 4WD CE Wheel Loader ZL26 With 2ton Rated LoadNegotiableMOQ: 1 Set -
ZL20 Wheel Loader 2 Ton New Type With CEUS$ 12,000 - 16,000MOQ: 1 Piece
-
HZM Lawn Mower Wheel Loader With Ce,ROPSNegotiableMOQ: 1 Set
-
2t Cheap Wheel Loader Attachments With Snow PlowNegotiableMOQ: 1 Set
-
HZM 2ton Telescopic Boom Loader 920T With ceNegotiableMOQ: 1 Set
1.Streamlined appearance design,elegant and generous.
2.WEICHAI 4108(60KW) engine with a stable performance.
3.Fully hydraulic steering systm,easy to operation
4.New sealing cab,Grammer seat with a comfortable operating environment.
5.Double cabin heater,double brake pump.
6.New style tires can adapt for different working environment
7. LED lamp,varta battery,adjustable seat,six air outlet cab heater,electric joystick,rear view camera etc.
specification:
Specification |
overall weight(kg) |
5800 |
L×W×H(mm) |
6570×2150×2850 |
|
rated bucket capacity(m3) |
1.2 |
|
Rated load(kg) |
2000 |
|
Maximum dump height (mm) |
3200/3500 |
|
Bucket indicator |
Yes |
|
Engine |
Model |
YTR4108G92X/cummins |
Type |
Vertical, In-line , Water cooling, four-stroke diesel engine |
|
Rated power(kw) |
60kw |
|
Rated speed(r/min) |
2400 |
|
Transmission system |
Model of torque converter |
YJ280A |
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Working pressure |
16Mpa |
Boom lifting time |
4.8s |
|
Fuel tank capacity |
80L |
|
Steering system |
Type |
hydraulic steering |
Min turning radius(mm) |
5248 |
|
Tyres |
Standard tyres |
16/70-20 |
Name:Bill wang
Phone number:86-15965086077
Skype ID:kashenkeer
QQ:493803768
Company:Qingzhou Huizhong Machinery Co.,ltd
Address:Yuhua IndustrialPark, Beihuan load, Qingzhou City,Shandong Province, China
Send Inquiry to This Supplier
