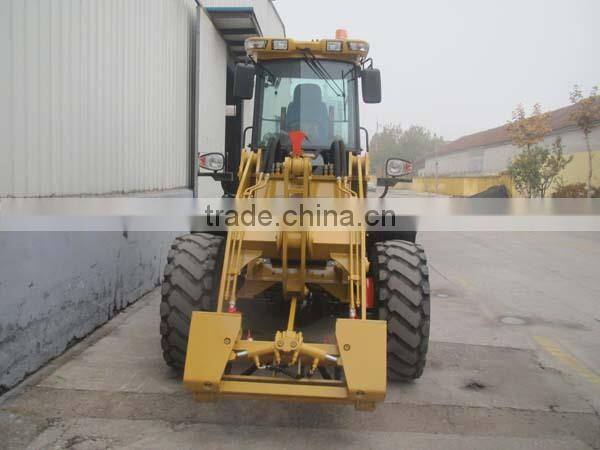

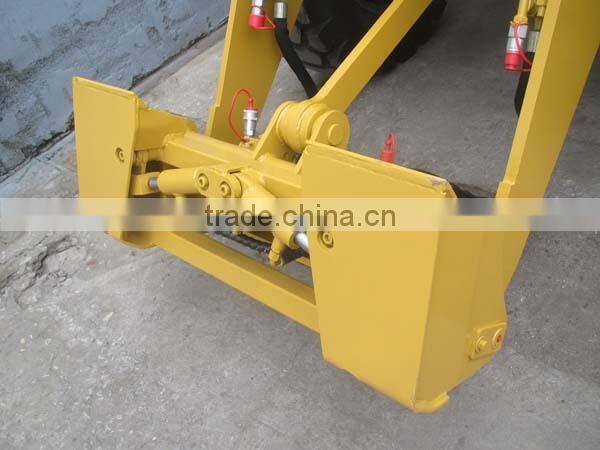

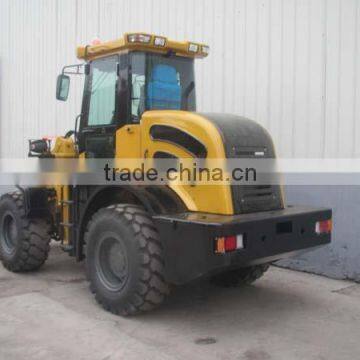

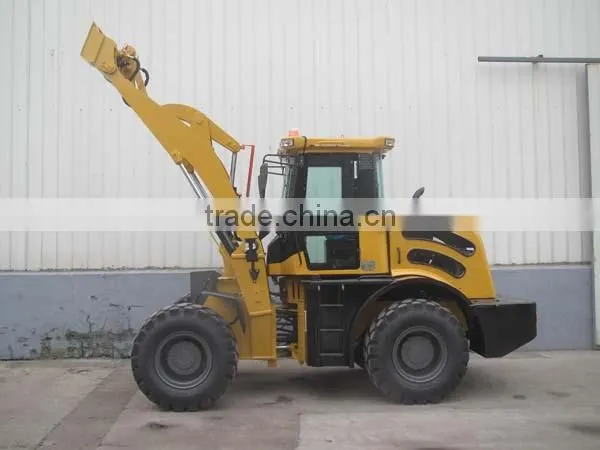

EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch

Qingzhou Huizhong Machinery Co., Ltd.
EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch thumbnail-1
EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch thumbnail-2
EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch thumbnail-3
EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch photo-1
EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch photo-2

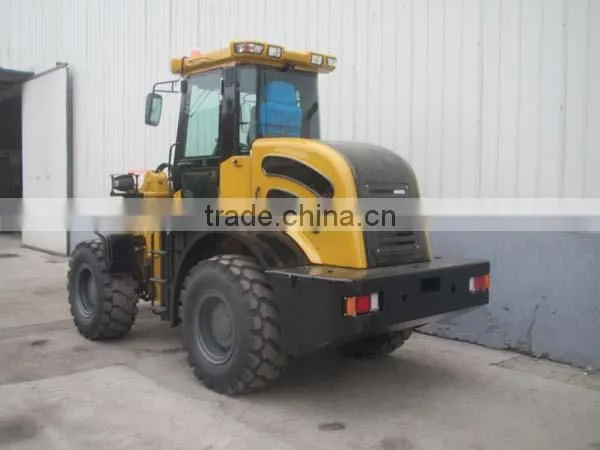

EPA3 Engine ZL20F HZM920 2ton Wheel Loader With Skip Steer Loader Quick Hitch photo-3
US$ 11,000 - 17,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HZM
Model Number:
920
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name HZM
Model Number 920
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 6130X1920X2820MM
Rated Load 2000kg
Certification CE / ROPS / EAC /ISO9001
Warranty 12 MONTHS, one year
After-sales Service Provided Overseas service center available



Specification

overall weight(kg)

5800KG

L×W×H(mm)

6130x1920x2820

rated bucket capacity(m3)

0.9-1.2

Rated load(kg)

2000

Maximum dump height (mm)

2850-3200

Bucket indicator

Yes

Max. breakout force(KN)

48.8KN

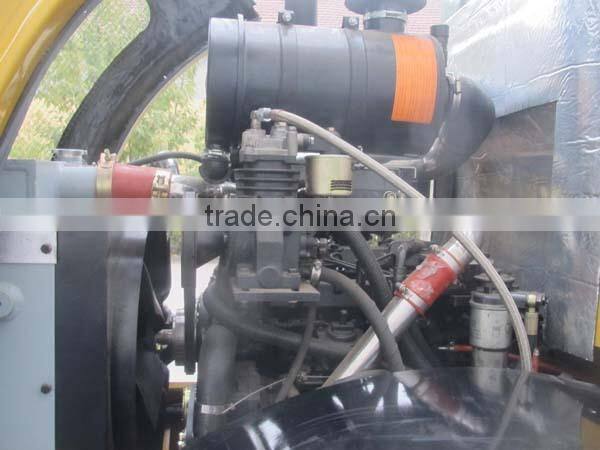

Engine

Model

WEICHAI 4RNSG3

Type

      In-line arrangement, direct injection,

          Water cooling, four-stroke



Rated power(kw)



60kw

Rated speed(r/min)

2400

Transmission    system

Model of torque converter

YJ280

Type

single grade three componets

Gearbox type

Fixed-spindle power shift

Gear shift

2 gears ahead,2 gear astern

  Hydraulic system

Distribution of work valve

DF20.2C

Working pump

CBF18

   Steering system

Type

Articulated hydraulic steering

Max. turning angle

                                  35±1°

Min turning radius(mm)

4500

    Brake system

Brake type

Air assisted oil disc on four wheel

          Tyres

Standard tyres

16/70-20

Optional wide tyres



Product Description

 EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch

EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick HitchEPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch



Packaging & Shipping

 EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch

1 Unit 20GP Container hold 1 unit ZL20F wheel loader ;

1 unit 40HC Container hold 2 units ZL20F wheel loader ;



Our Services

 EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch





Company Information





EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch

EPA3 Engine ZL20F HZM920 2ton wheel loader with Skip steer loader Quick Hitch
