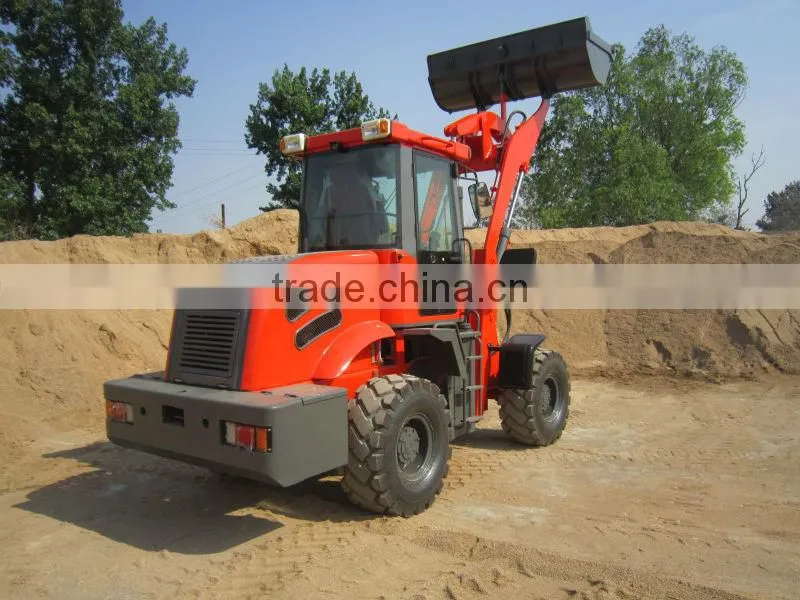

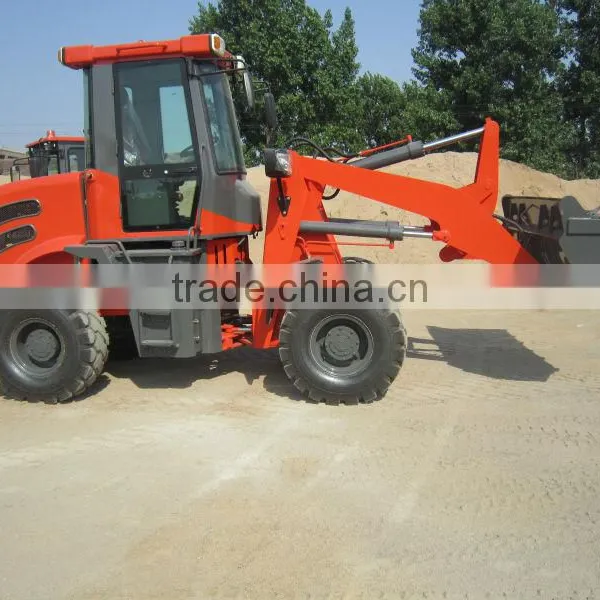

HZM zl16F 1.8ton hot sale wheel loader with CE,ISO9001

Specification

overall weight(kg)

4200

L×W×H(mm)

5800x1850x2700

rated bucket capacity(m³)

1.2

Rated load(kg)

2000

Maximum dump height (mm)

3200

Bucket indicator

Yes

Max. breakout force(KN)

43

Engine

Model

                    weichai4102/cummins

Type

In line,direct injection,four-stroke,liquid cooled

Rated power(kw)

65kw

Rated speed(r/min)

2400

Transmission system

Model of torque converter

YJ265

Type

                    Single-stage,3 elements

Gearbox type

 Axial full power shift transmission

Gear shift

2 gears ahead,2 gear astern

Hydraulic system

Distribution of work valve

DF15.2C

Working pump

 CBG2040

Steering system

Type

Articulated hydraulic steering

Max. turning angle

                          lift and right 35±1°

Min turning radius(mm)

  4200

Brake system

Brake type

Air assist oil disc on four wheel

Tyres

Standard tyres

   23.5/70-16
