Specifications

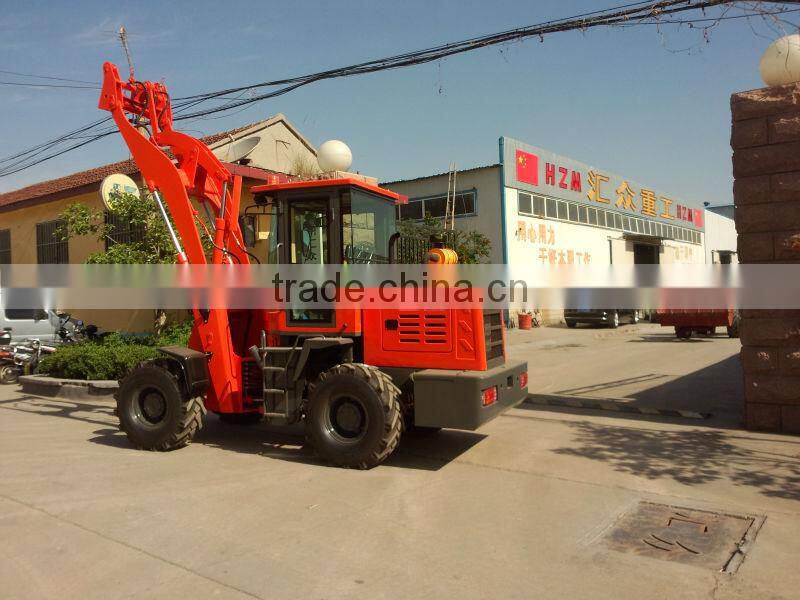

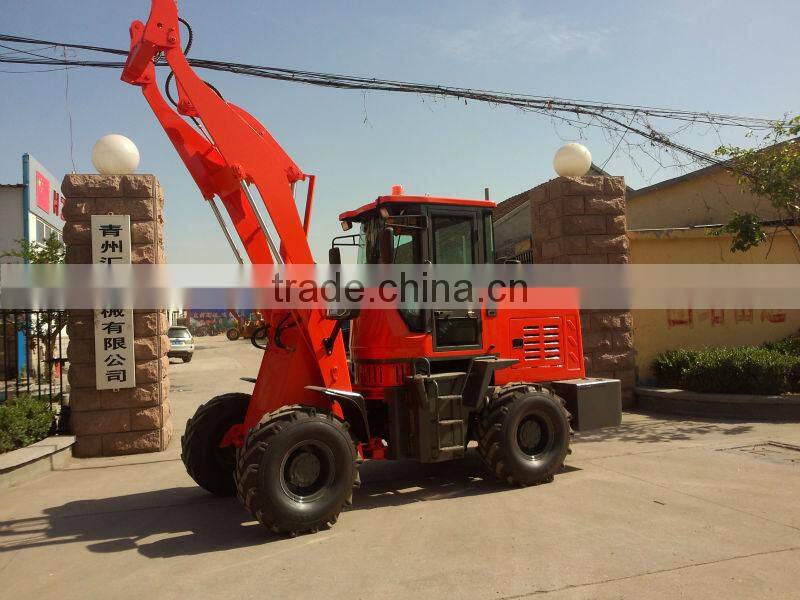

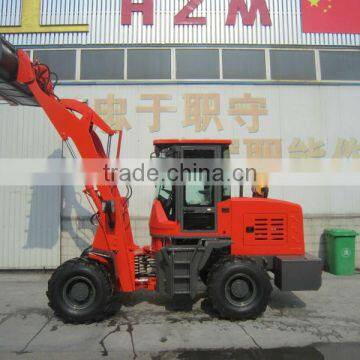

HZM NEO 200 wheel loaderFully hydraulic steering
New design cab
Various working devices of attachment
Specification | overall weight(kg) | 4000 |
L×W×H(mm) | 5800x1850x2700 | |
rated bucket capacity(m3) | 1.0 | |
Rated load(kg) | 2000 | |
Maximum dump height (mm) | 3200 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | weichai4102/cummins |
Type | In line,direct injection,four-stroke,liquid cooled | |
Rated power(kw) |
65kw | |
Rated speed(r/min) | 2400 | |
Transmission system | Model of torque converter | YJ265 |
Type | Single-stage,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | DF15.2C |
Working pump | CBG2040 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 35±1° | |
Min turning radius(mm) | 4200 | |
Brake system | Brake type | Air assist oil disc on four wheel |
Tyres | Standard tyres | 23.5/70-16 |
|
