Specifications
pallet loader*CE loader
*Joystick,&quick hitch small loader
*wide vacuum tyres
*heater cab,220V preheater small loader

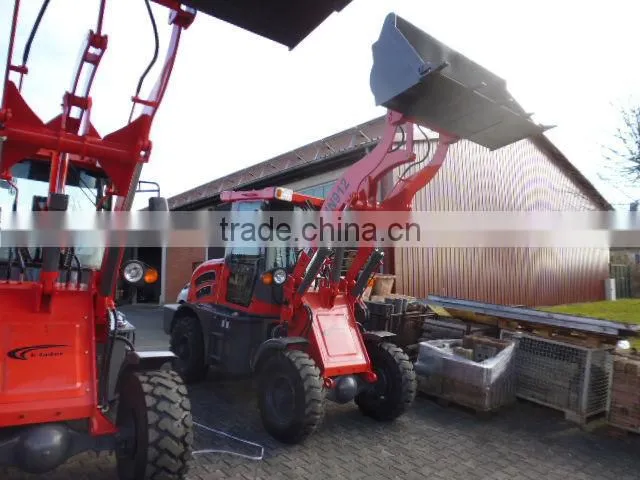

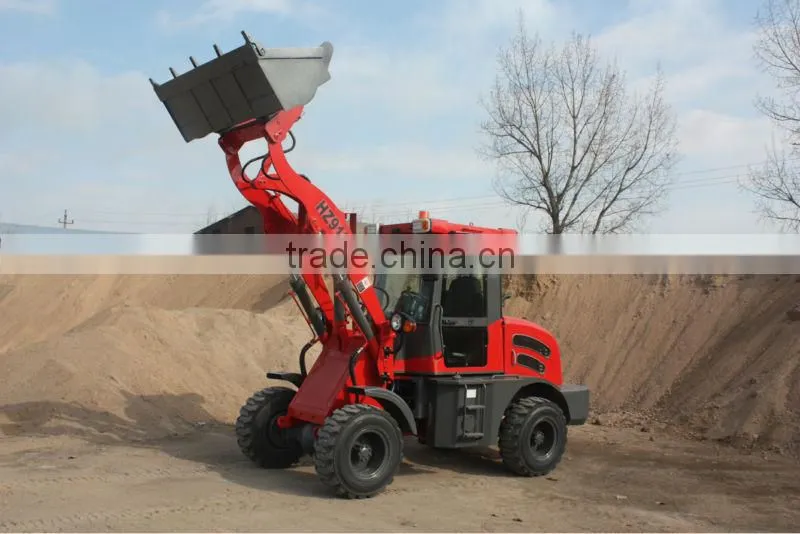

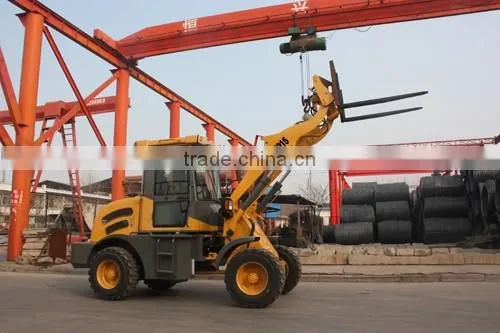

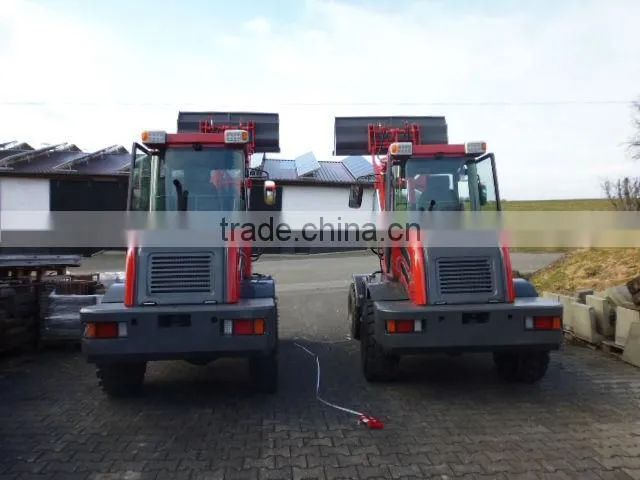

ZL15F small loader and pallet loader
Specification |
overall weight(kg) |
3600 |
L×W×H(mm) |
4760×1680×2550 |
|
rated bucket capacity(m3) |
0.7 |
|
Rated load(kg) |
1500 |
|
Maximum dump height (mm) |
2750 |
|
Bucket indicator |
Yes |
|
Max. breakout force(KN) |
43 |
|
Engine |
Model |
Xinchai498(EURO III) |
Type |
In-line arrangement, Water cooling, four-stroke |
|
|
Rated power(kw) |
47kw |
|
Rated speed(r/min) |
2550 |
|
Transmission system |
Model of torque converter |
YJ240 |
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead,2 gear astern |
|
Hydraulic system |
Distribution of work valve |
ZL20B |
Working pump |
CBGj1045,CBGq1018 |
|
Steering system |
Type |
Articulated hydraulic steering |
Max. turning angle |
27±1° |
|
Min turning radius(mm) |
3000 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
Tyres |
Standard tyres |
12-16.5 |
Optional wide tyres |
14-17.5 |
* ZL15F small wheel loader with Xinchai 4 cylinders EURO III and EPA III approved diesel engine;
* Joystick,quick hitch
* Adjustable steering wheel
* Heater cab,New adjustable seat
* wide vacuum tyres
* New preheater on engine
small wheel loader CE with optioanal tools:
Pallet fork,snow shovel,multi-function bucket,grass fork,4 in 1 shovel,vacuum wide tyres.
Sincerely wish to cooperate with you.
Welcome to visit our factory !
