Specifications
small wheel loader wih CE*loader with Joystick,pilot control
*Quick hitch,adjustable seat
*220V preheater loade

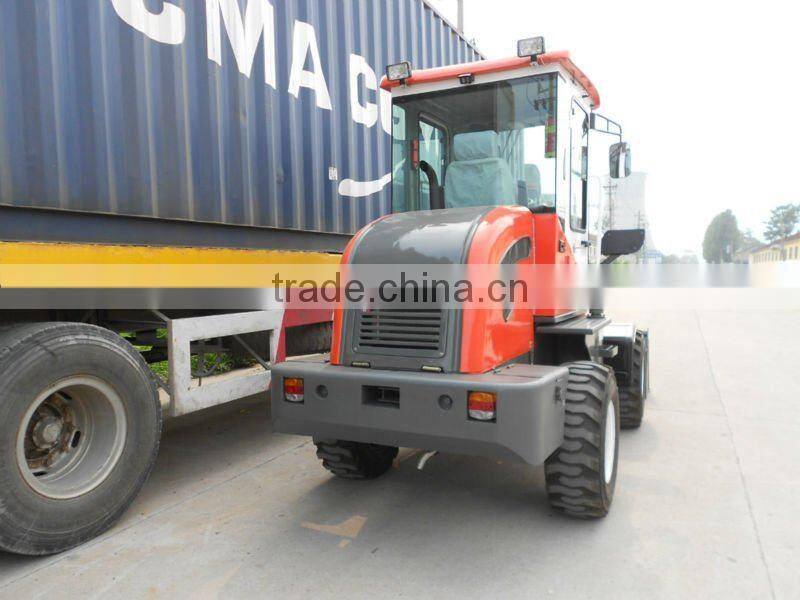

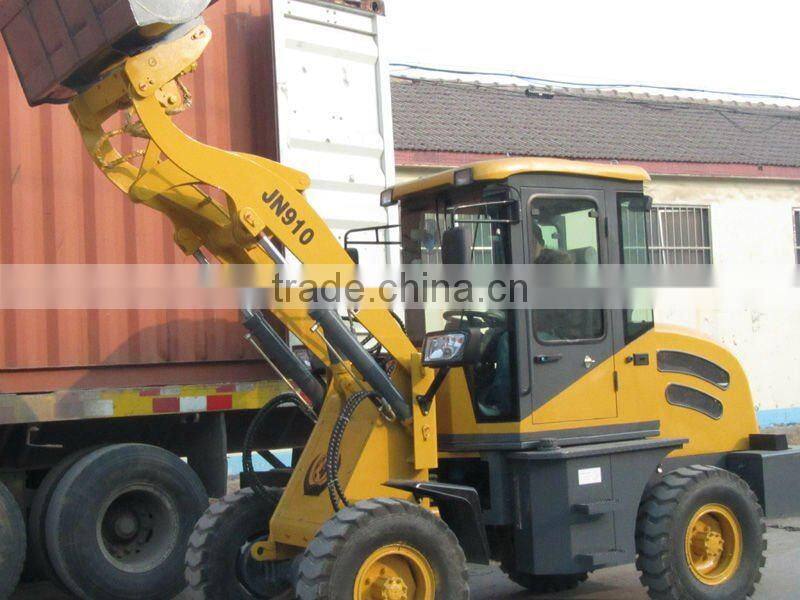

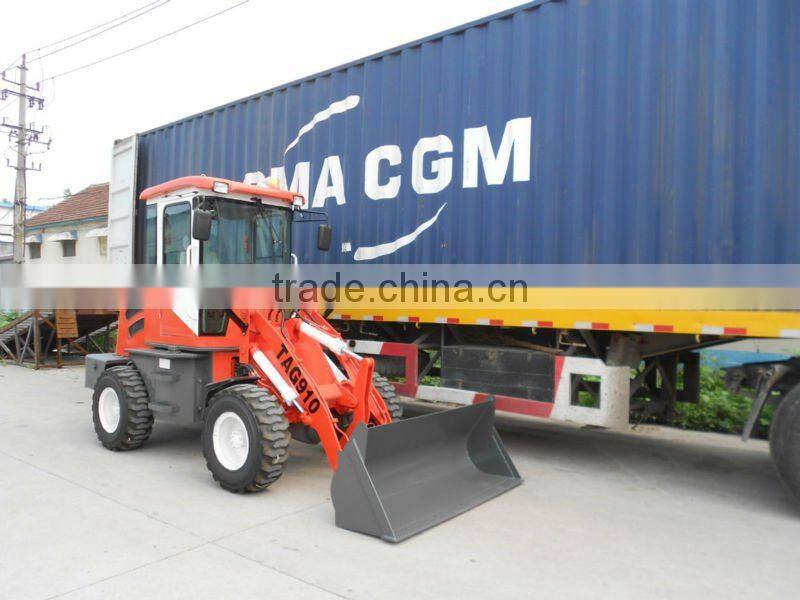

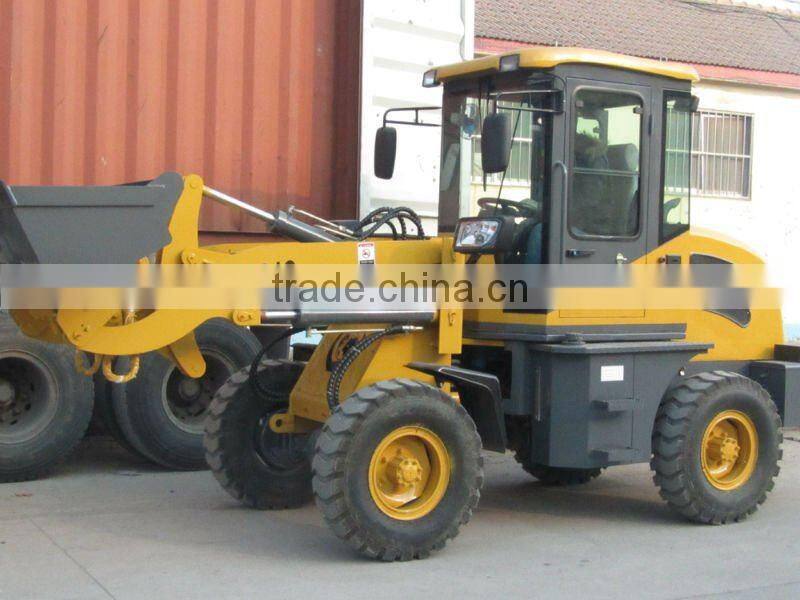

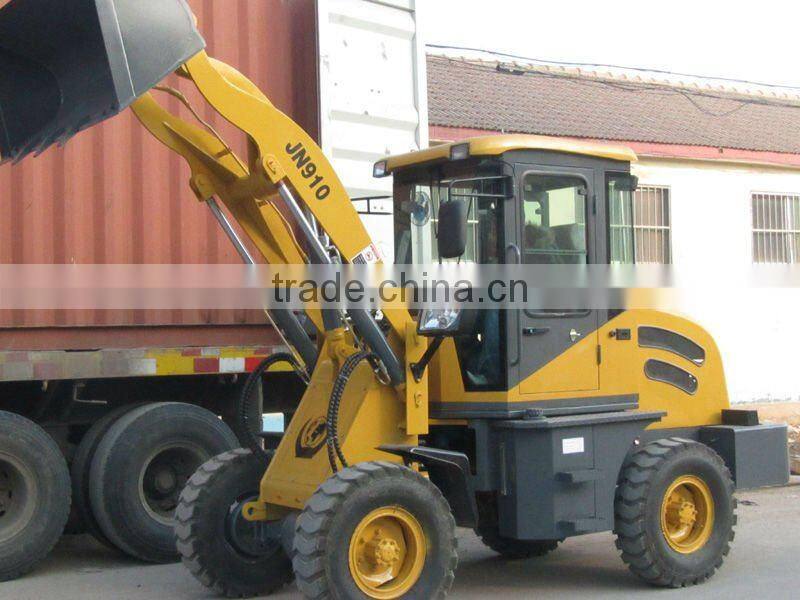

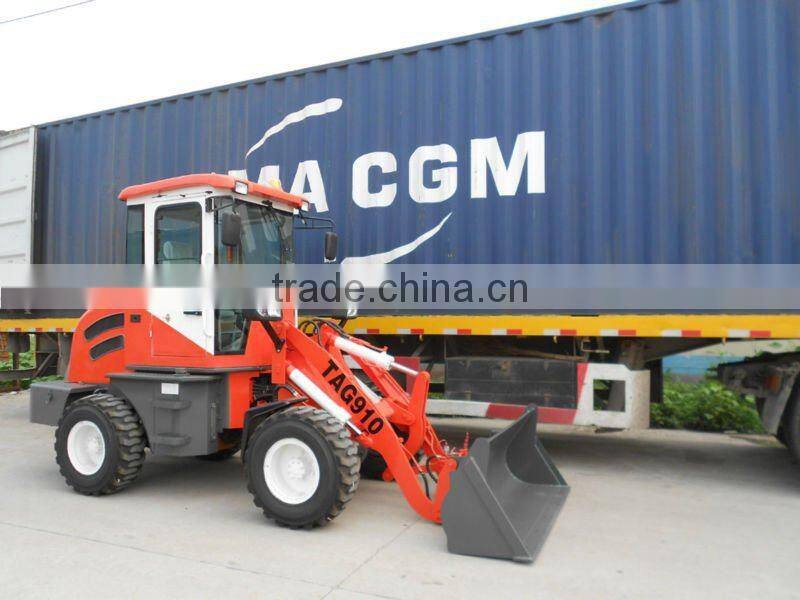

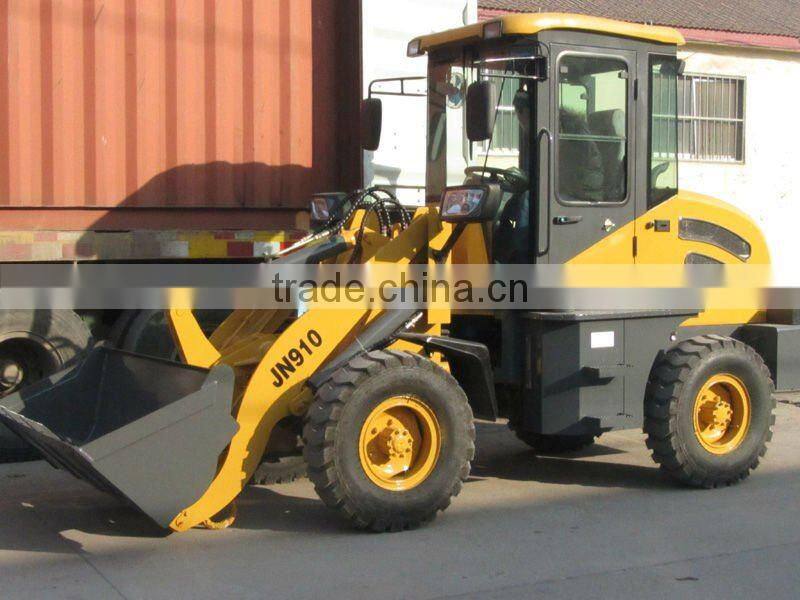

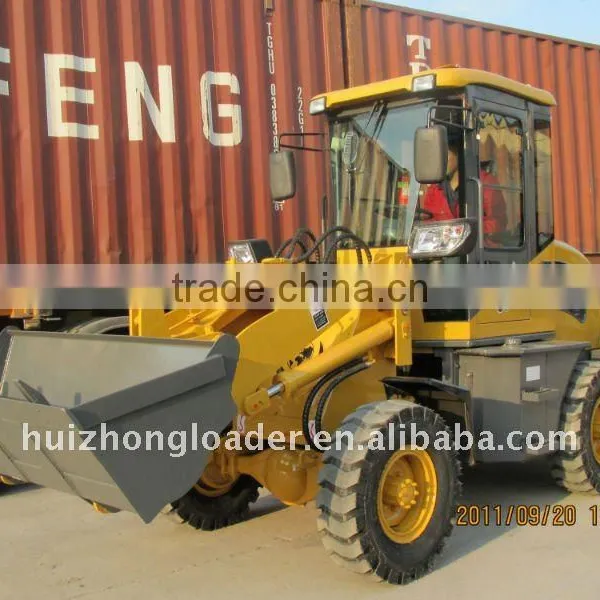

Mini compact wheel loader ZL10
Specification | overall weight(kg) | 3400 |
L×W×H(mm) | 4750×1660×2570 | |

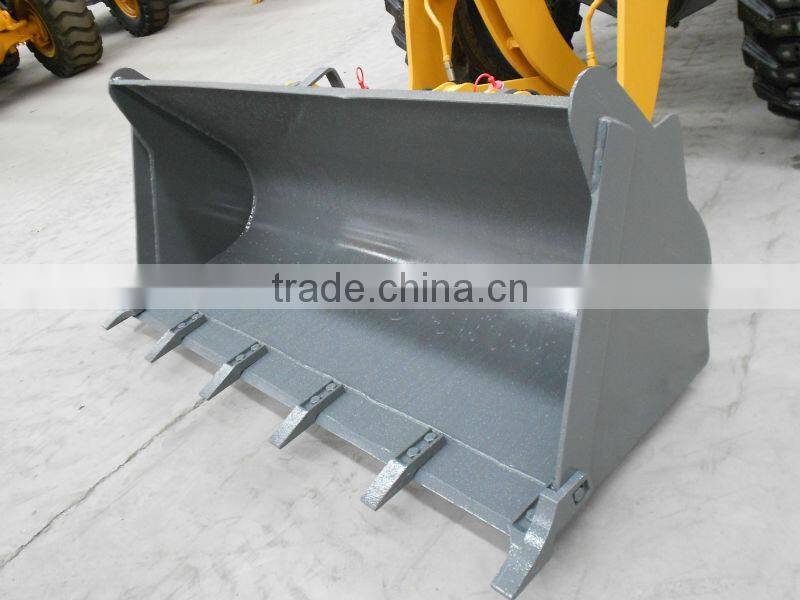

rated bucket capacity(m3) | 0.6 | |
Rated load(kg) | 1200 | |
Maximum dump height (mm) | 2750 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | changchai490/changchai4L68/changchai4L50B(euro III) |
Type | In-line arrangement, Water cooling, four-stroke | |
Rated power(kw) |
37kw | |
Rated speed(r/min) | 2200 | |
Transmission system |
|
|
|
| |
Gearbox type | Fixed-spindle power shift | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL20B |
Working pump | CBGj1045,CBGq1018 | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | 27±1° | |
Min turning radius(mm) | 3000 | |
Brake system | Brake type | Oil brake(Vacuum booster) |
Tyres | Standard tyres | 1200-16 |
Optional wide tyres | 12-16.5/14-17.5 |
Welcome to visiting our factory!
ZL10 small w
