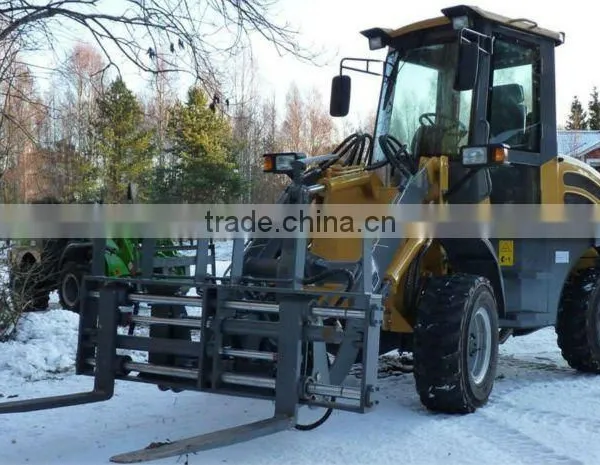

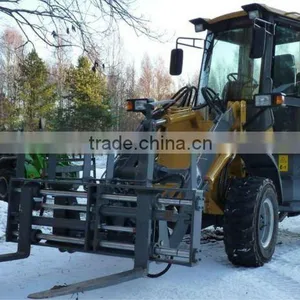

ZL10 mini wheel loader with favorable price

Specification

overall weight(kg)

3200

L×W×H(mm)

5100×1550×2570

rated bucket capacity(m³)

0.6

Rated load(kg)

1200

Wheel base

1980mm

Thread

1420mm

Max.breakout force

 43KN

Maximum dump height (mm)

2850mm

Bucket indicator

 Yes

Engine

Model

           Changchai 490/CHANGCHAI 4L50B

           Rated power(kw)

                            29KW/36.8KW

Rated speed(r/min)

2300

Max.torque

124.3N.m

Total displacement

2.16L

Hydraulic system

Working pump

CBF32

Distribution device model

DF15.2C

Steering system

Type

Articulated and hydraulic steering

Min turning radius(mm)

3400

Max.turning angle

35°±1

Tyres

            Standard tyres

 1200-16
