F800 CNC Wire Cut EDM
- Any port of China
- T/T L/C
- 20 days
You May Like
Product Details
| Brand Name | SENYAT | Place of Origin | China | |
| Model Number | F800 | Certification | CE, ISO/9001:2008 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | 4000kg | Voltage | customization | |
| Condition | New | Power(W) | 1.5 kw | |
| CNC or Not | CNC |
Product Description

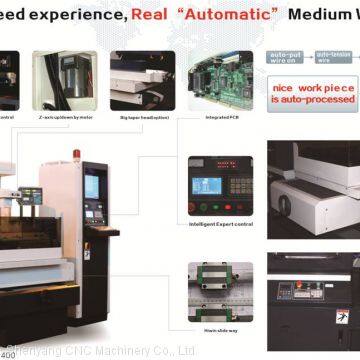

Automations
1. Wire tension automatic control, No need to tighten the wire manually. Constant tension and stable accuracy.
2. the Z axis can move by automatic. No need to remove the wire.
3. Intelligent setting the cut parameter, operation is handy.
4. Wire diameter automation control. Reduction the accuracy error which caused by the change of the wire diameter.
| Machine Type | F350 | F400 | F500 | F630 | F800 |
| Table size mm | 770×590 | 910×600 | 1010×680 | 1230×820 | 1410×1010 |
| Table travel mm | 350×400 | 400×500 | 500×630 | 630×800 | 800×1000 |
| UV axis travel mm | ±25 | ±25 | ±25 | ±25 | ±25 |
| Workpiece max.Thickness mm | 400 | 400 | 600 (can agrade1000) | ||
| Workpiece max.Weight kg | 450 | 600 | 1400 | 2300 | 4000 |
| Machine weigh KG | 1400 | 1600 | 2400 | 3100 | 4000 |
| Max.Taper cutting | ±6 (need install wire guide) | ||||
| Pulse equivalent | 0.001 mm | ||||
| Wire speed | 1-15 m/s (speed adjustment by frequency conversion) | ||||
| Overall processing speed | 60 mm2/min | ||||
| the fast processing speed | 120 mm2/min | ||||
| the best Roughness | Ra 1.0 | ||||
| Wire diameter | 0.10-0.20 | ||||
| Composite machining accuracy | 0.01 mm | ||||
| Drive tpye | Stepper motor (Can grade AC servo motor) | ||||
| Guide | Japanese THK linear guide | ||||
| X Y axis screw | Ball screw made in China | ||||
| Bearing | Japanese NSK bearing | ||||
| Measurement system | Electronic ruler | ||||
| Volume of the tank | 100 L | ||||
| Tank size | 1080×620×630 mm | ||||
| Wire cylinder stroke | 250 mm | ||||
F series is environmental protection type which design for export. The machine tool structure is T type same as copper wire cutting machine. Install environmental protection cover on the molybdenum wire running area, and install organic glass water tank on work table.
The important precision index. (with out wire guider!!):
1.Roughness: Ra≤1.0 um/30000 mm.
2.Accuracy of the machining: 0.005 mm.
3.Conformance deviation: 0.005 mm/30 pcs.
4.Longitudinal dimension deviation: 0.02/200 mm.
