JZS Oil Treatment
Application:
1. Series JZS engine oil regeneration system is mainly for regenerating the waste engine oil, this equipment can effective separate water, gas, particles, deeply oxides, free carbon, colloid, asphalt and wax from oil, making black engine oil become transparent golden color.
2. This equipment has the functions of dewatering, degassing, decolor. Improving the engine oil's properties, restoring the oil's performance and lowering wear to ensure the engine can work normally and safely, prolonging the engine and engine oil lifetime.
Technical Parameters:
Index name |
unit |
JZS-1000 |
JZS-2000 |
JZS -5000 |
JZS-10000 |
Flow rate |
L/Day |
1000 |
2000 |
5000 |
10000 |
Ratio of regeneration |
% |
75 -95 |
|||
Working pressure |
MPa |
-0.095 ~ 0.4 |
|||
Temperature range |
C |
80~180 |
|||
Working noise |
dB(A) |
≤70 |
|||
Power supply |
|
380V 50HZ 3PH(As per user's option) |
|||
Heating power |
kW |
55 |
108 |
145 |
192 |
Total power |
kW |
68 |
122 |
162 |
216 |
Inlet(Outlet) |
mm |
32 |
32 |
42 |
42 |
Reactor system |
mm |
2500x2100x2300 |
3000x2100x2300 |
3300x2100x2300 |
5600x2100x2300 |
Filtration system |
mm |
3000x1200x1900 |
3000x1400x1900 |
3500x1600x2100 |
2x3500x1600x2100 |
Gas treatment system |
mm |
1360x800x3000 |
1360x800x3000 |
1560x950x3000 |
1560x950x3000 |
Weight |
kgs |
3100 |
4200 |
6700 |
8800 |
Regenerated oil Index:
Index name |
Standard value |
Test result |
Test means |
Kinematic viscosity (100C)/( mm²/s) |
12.5~<16.3 |
11.6 |
GB/T 265 |
Flash point (open cup )/C |
≥ 220 |
240 |
GB/T 3536 |
Pour point /C |
≤ -10 |
-26 |
GB/T 3535 |
Acid number (mg KOH/G) |
≤ 2.0 |
0.04 |
GB/T 7304 |
Impurities(%) |
≤ 0.01 |
0.005 |
GB/T 511 |
Water soluble acid/alkali |
— |
— |
GB/T 259 |

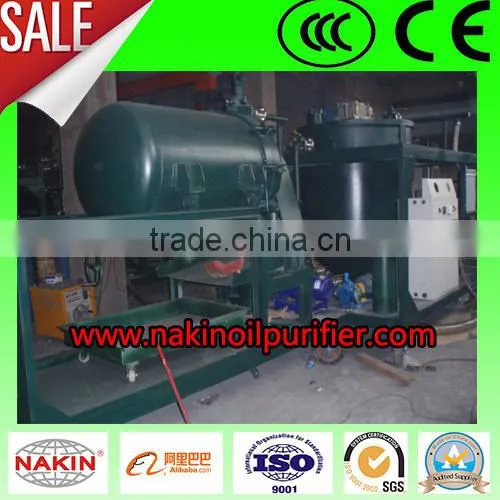

Product Images:
Our Company:
NAKIN Company is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.
Packaging:
Each product with one solo wooden case, suiting for transportation. Or packaging as your requirments.
Shipping:
Sea shipping, Land transportation, Air transportation, Express.
After sales services:
1. Engineers are available for local installation.
2. Provided great after sales services within 12 hours.
3. Provided profesional suggestions about oil purifier.
We also provide:
ZYD-Double vacuum Transformer oil purifier
ZYM-Movable insulating oil purification cart
AD-Electric transformer air drying equipments
TY-Online Turbine oil treatment
TJ-Fuel oil filtration unit
TYA-Lubricating oil purifier/hydraulic oil purification
JZS-Engine oil regeneration system, waste oil recycling
BZ-Transformer oil regeneration device
PF-Press paper filter machine
JL-Portable oil piurifier,oil filtering,oil filter
BDV dielectric strength tester for transformer oil
NKEE-Oil moisture sensor
If you have any questions, please contact me at any time.
