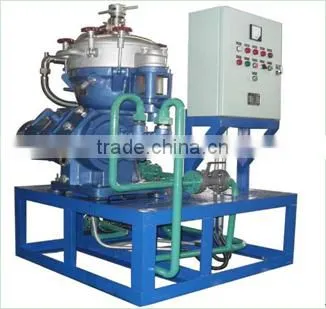

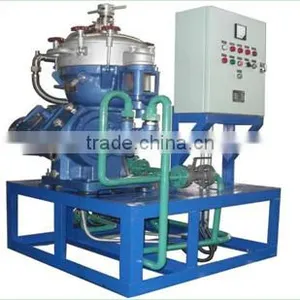

Help CenterCXJ Centrifugal Oil Separator, Oil Reclaim Equipment
Related Products
-
NAKIN High Quality Disc-Type Centrifugal Oil Separator/Marine Heavy Fuel Oil Purification MachineUS$ 1 - 20,000MOQ: 1 Set -
JYWL Horizontal-Closed Type Filtration Device/Used Oil Filtration MachineUS$ 1 - 20,000MOQ: 1 Set
-
Vertical Closed Plate Oil Filtration Machine/Solid-Liquid Oil SeparatorUS$ 1 - 15,000MOQ: 1 Set
-
Disc-Type Centrifugal Marine Oil Separator With Water And Particles Removing/Oil Cleaning MachineUS$ 100 - 30,000MOQ: 1 Set
-
Latest Vegetable Oil Treatment Machine/Oil Recondition Equipment/Edible Oil Refinery PlantUS$ 9,000 - 30,000MOQ: 1 Set
Application:
The disc diesel Oil separator Centrifugal Type (Marin Centrifugal Oil Separator) is mainly used for the filtration of the heavy fuel oil in the ship, which can effectively remove the water and impurities from the oil, play a role in the clarification and purification, reduce operating costs and extend the life of the engine. Meanwhile, this machine can be applied to heavy diesel oil, lubricating oil, hydraulic oil, turbine oil clarification and purification to slow wear of diesel engine or other types of machines, and extend the service life of the machine and oil. This machine can also be applied to other areas of non-homogeneous suspensions or emulsions separation.
Features:
1. An ultra-high speed separator to the continuous separation of solid impurities and moisture from the pending purification medium.
2. Automatic trash, continuous and efficient
3. Efficient new heating system, high efficiency, uniform heating.
4. Integrated multi-system, the operation is simple, safe and reliable.
5. Models of the design, manufacture and acceptance comply with the the disc separator GB/T5745-2002 "marine".
Working principle:
Use of different density of the liquid and liquid, liquid and solid turbid liquid in the high-speed rotation of the drum, having a different density multi-component under the effect of centrifugal force into a circular annular shape, the maximum density of the solid particles outward movement accumulate in the drumthe circumferential wall of the light phase liquid in the innermost layer. Drum, disc, drum space is divided into a number of thin-layer separation space, thus greatly reducing sedimentation distance, improve and increase the separation effect. Any particles reaches the disc inner surface at the limit between the two discs can be separated out. Finally, oil discharged out through the light-centripetal-pump,water discharged out by the heavy-centripetal-pump, and the partciles discharged by the particle-pump.
Technical Parameters:
| Index | Unit | CXJ-1500 | CXJ-1500A | CXJ-3000 | CXJ-4000 |
| Flow Rate | L/H | 1500 | 1500 | 3000 | 4000 |
| Seaperating-Factor | a/g | 7231 | 12094 | 8800 | 9400 |
| Running speed | r/min | 7500 | 8300 | 6300 | 8300 |
| Particles | μ | 2 | 1 | ||
| Gas content | % | ≤1 | |||
| Power Supply | 380V, 50HZ, 3PH( as per user's option ) | ||||
| Motor Power | kW | 4 | 4 | 8 | 8 |
| Heater Power | kW | 24 | 24 | 30 | 36 |
| Total Power | kW | 28 | 28 | 38 | 44 |
| Sludge-discharge | Manual | Automatic | |||
| Outlet Pressure | MPa | ≤0.2 | |||
| Weight | Kgs | 450 | 480 | 850 | 900 |
| Dimension | mm | 1000*750*1100 | 1100*850*1100 | 1000*700*1100 | 1200*900*1200 |
Machine Photos:
Chongqing Nakin oil purifier Manufacture Co.,Ltd is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.
Our Main Series Products as following:
ZY-Single stage vacuum transformer oil purifier/oil filtration machine
ZYD-Double stages vacuum Transformer oil purifier/oil filtration machine
ZYM-Mobile type transformer oil purifier/oil filtration machine
AD-Air drying machine
TY-Vacuum Turbine oil purifier/oil filtration machine
TJ-Coalescence-Separating oil purifier/oil filtration machine
TYA-Vacuum Lubricating oil purifier/oil filtration machine
CXJ-Centrifugal oily water separating machine
JZS-Waste Engine oil regeneration machine
JZC-Black waste oil distillation system
ZYS-On-load Tap Changer Oil Purifier
BZ-Transformer oil regeneration device
PF-Press paper oil filtration machine
JL-Portable oil oil purifier/oil filtration unit
BDV Dielectric oil's breakdown voltage tester
NKEE-Transformer oil/lube oil moisture sensor
Oil purifier parts and various oil testing equipments (Oil Acid tester, oil viscosity tester)
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
