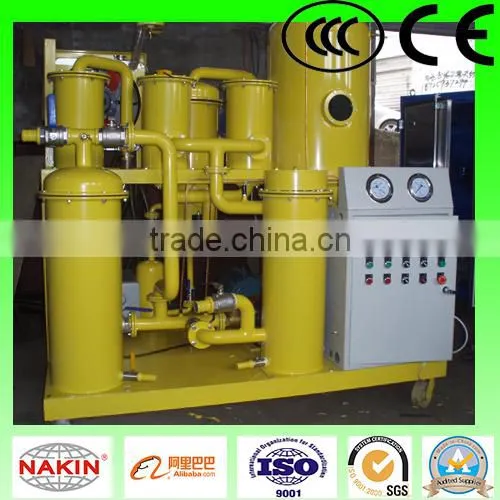

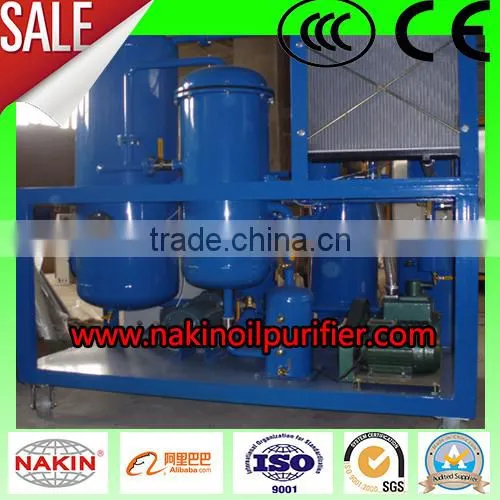

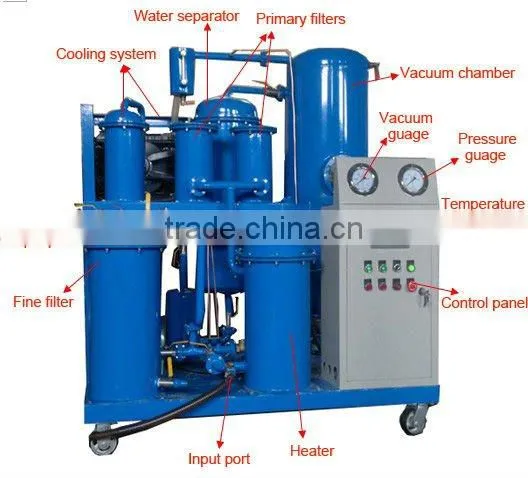

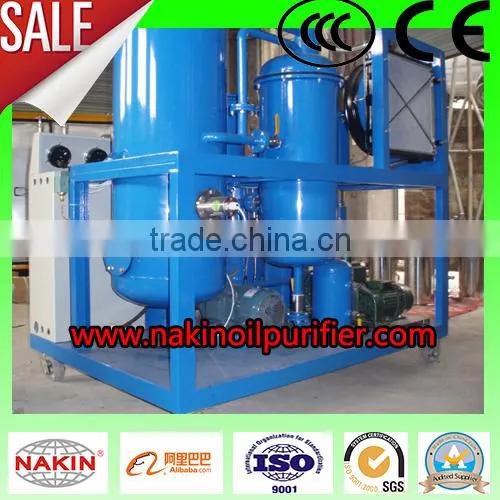

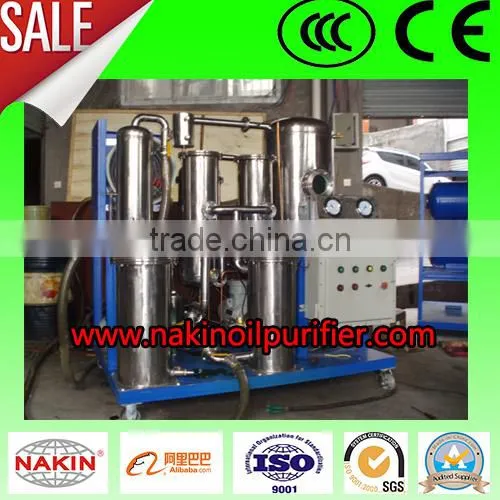

Machinery Manufacture Used Lubrication Oil Purifier/Filtration Machine
Application:
Series TYA vacuum lube oil purifier is mainly for purifying unqualified lubricating oil, hydraulic oil, compressor oil, refrigeration oil and other industrial oils, this machine can rapidly separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance. The treated oil can reuse again in various industrial equipments. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.
Advantages:
Good economic benefits, widely application, it is suitable for purifying various old lube oil in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway and so on.
Technical Parameters:
Index name |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
||||||||
Working pressure |
MPa |
≤ 0.4 |
||||||||
Temperature range |
°C |
20 ~80 |
||||||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
||||||||
Water content |
ppm |
≤100 |
||||||||
Gas content |
% |
≤ 0.1 |
||||||||
Cleanness |
|
≤ NAS 6 grade |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
≤65~80 |
||||||||
Heating power |
Kw |
36 |
40 |
45 |
60 |
80 |
110 |
145 |
160 |
|
Total power |
Kw |
38 |
42 |
47 |
65 |
96 |
124 |
157 |
178 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
Weight |
kg |
350 |
380 |
400 |
450 |
750 |
880 |
1100 |
1300 |
|
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1700 |
|
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
1950 |
|
Nakin Electromechanical Co., Ltd is a leading machinery manufacture. Our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type transformer oil treatment, oil filtration machine
TY-Turbine oil purifier, oil treatment
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
