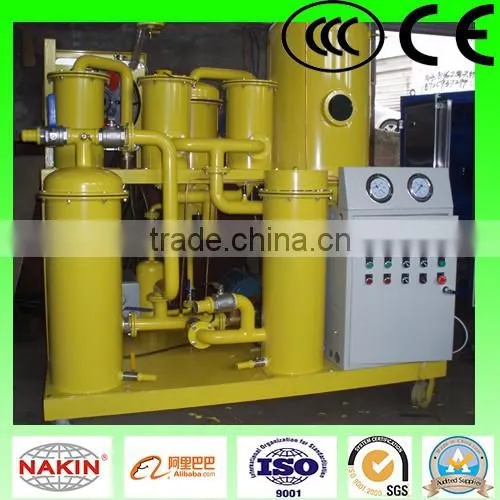

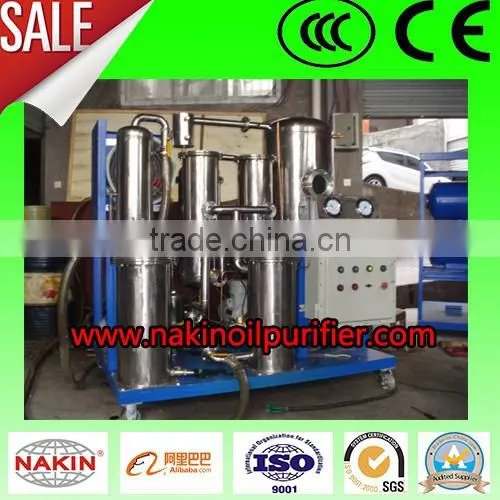

NAKIN-TYA-10 After Industrial used Waste Lubricating Oil Filtering/Purifying/Treatment Device
Application:
Series TYA vacuum lube oil purifier is mainly for purifying unqualified lubricating oil, hydraulic oil, compressor oil, refrigeration oil and other industrial oils, this machine can rapidly separate water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance. The treated oil can reuse again in various industrial equipments. It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.
Features:
1.Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision.
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.)
4. Automatic backwashing system, improving working efficiency
5. Advanced medium cooling system
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime.
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
Index name |
Unit |
TYA-10 |
TYA-20 |
TYA-30 |
TYA-50 |
TYA-100 |
TYA-150 |
TYA-200 |
TYA-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
||||||||
Working pressure |
MPa |
≤ 0.4 |
||||||||
Temperature range |
°C |
20 ~80 |
||||||||
Demulsifying value |
min |
≤15/min(GB/F7035) |
||||||||
Water content |
ppm |
≤100 |
||||||||
Gas content |
% |
≤ 0.1 |
||||||||
Cleanness |
|
≤ NAS 6 grade |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
≤65~80 |
||||||||
Heating power |
Kw |
36 |
40 |
45 |
60 |
80 |
110 |
145 |
160 |
|
Total power |
Kw |
38 |
42 |
47 |
65 |
96 |
124 |
157 |
178 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ25 |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
|
Weight |
kg |
350 |
380 |
400 |
450 |
750 |
880 |
1100 |
1300 |
|
Dimension |
L |
mm |
1500 |
1500 |
1500 |
1600 |
1750 |
1900 |
1950 |
2100 |
W |
mm |
1000 |
1050 |
1050 |
1150 |
1150 |
1600 |
1600 |
1700 |
|
H |
mm |
1600 |
1600 |
1650 |
1700 |
1750 |
1950 |
1950 |
1950 |
|
NAKIN Company products list as following:
ZY-high effective vacuum transformer oil purifier, oil filtration
ZYD-Double stages Vacuum insulating/transformer oil purifier, oil treatment, oil purification
ZYM-Mobile/trailer type Vacuum transformer oil treatment, oil filtration machine
TY-Vacuum Turbine oil purifier, oil treatment Plant
TJ-Coalescence and separating light/fuel/gasoline oil filter, oil purifier machine
TYA-Vacuum Lubricating oil purifier/hydraulic oil purification
TYK- Phosphate ester fire-resistant oil purifier, oil filtration machine
JZS-Engine oil regeneration system, waste oil recycling
JYWL-Horizontal-closed type filtration device
TPF-Waste cooking oil recycling machine
BZ-Transformer oil regeneration device, oil purifier
PF-Plate pressure turbine/transformer/engine/diesel/hydraulic oil filter, oil purifier machine
JL-Portable turbine/lube/insulating oil purifier, oil filtering, oil filter
NKVW-Vacuum pump system
IIJ-II-BDV oil tester, insulating oil dielectric strength tester
NKEE-Oil moisture sensor, water content sensor
