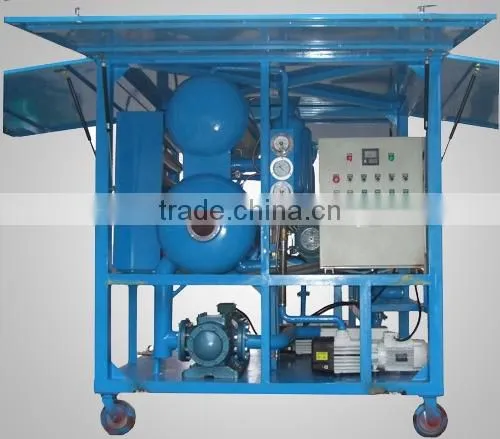

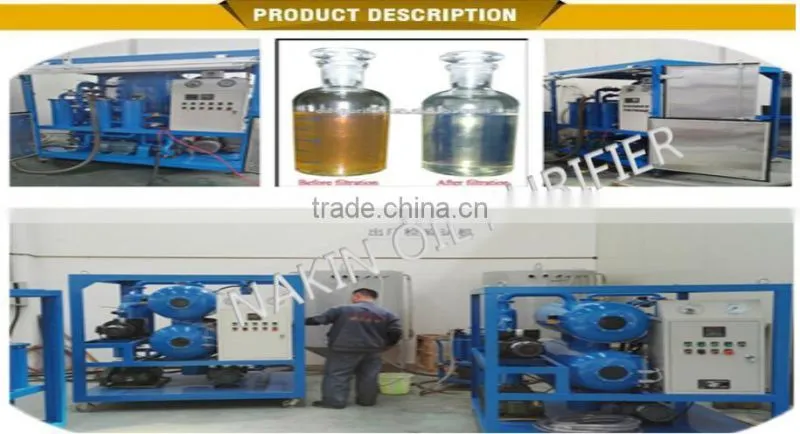

Help CenterMounted Double-Stage Vacuum Transformer Oil Purifier
Related Products
-
Single Stage Vacuum Pump Transformer Oil Purifier /Oil PurificationUS$ 2,000 - 20,000MOQ: 1 Unit -
2016 Power Plant Transformer Oil Drying Equipment/insulating Oil RecyclingUS$ 6,000 - 20,000MOQ: 1 Set
-
ZY Little Capacity Transformer Oil Purifier /Oil PurificationUS$ 2,000 - 20,000MOQ: 1 Unit
-
ZYD-50( 3000l/h) Double-Stage Transformer Oil Purifier, Insulating Oil PurificationUS$ 6,000 - 20,000MOQ: 1 Set
-
Power Plant Vacuum Pump and Roots Pump Transformer Oil PurifierUS$ 6,000 - 20,000MOQ: 1 Set
Application:
Series ZYD Double-stage vacuum transformer oil purifier has two vacuum separate system, which is specially made for purifying unqualified transformer oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil, insulating oil and so on, ZYD oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oiling.
Advantages:
Comparing with single stage transformer oil purifier, Series ZYD oil purifier can increase the effectiveness more than three times, more quickly and completely dewater, degas, remove particles to get higher dielectric strength. This equipment can be used as independent vacuum source with the functions of vacuum drying and vacuum oiling for the electric plants.
Technical Parameters:
| dex name | unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
| Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working vaccum | MPa | -0.08- -0.099 | ||||||
| Working pressure | MPa | ≤ 0.4 | ||||||
| Temperature range | C | 20 - 80 | ||||||
| Dielectric strength | KV | ≥ 70 | ||||||
| Water content | ppm | ≤ 3 | ||||||
| Gas content | % | ≤ 0.1 | ||||||
| Particles size | μ | ≤ 1 | ||||||
| Power supply | 380V 50HZ 3Ph (As per user' s option) | |||||||
| Working noise | dB(A) | < 65-85 | ||||||
| Heating power | Kw | 24 | 30 | 60 | 90 | 125 | 136 | 151 |
| Total power | Kw | 27 | 35.5 | 68 | 105 | 135 | 148 | |
Technical Parameters:

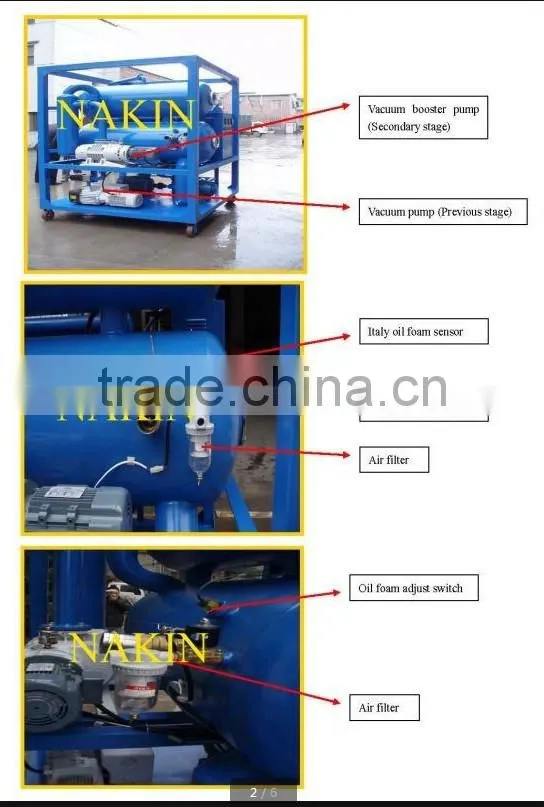

Oil Purifier Parts
Our products list as following:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
Our Certificates

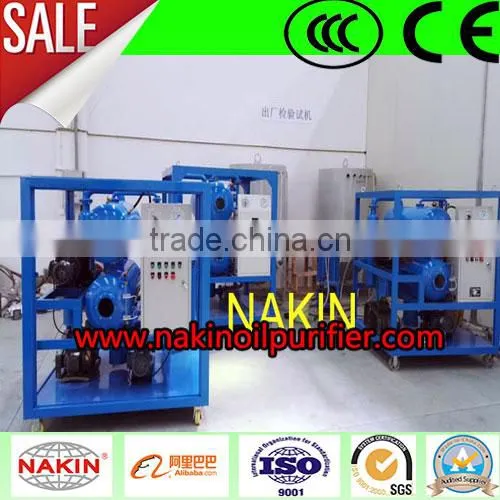

Workshop:
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
