HVAC Transformer Oil Purifier Machinery
ZYD Double-stage vacuum transformer/ insulating oil purifier is a high efficiency machine, particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and used transformer oil. This oil recycling system has double-stage vacuum system, two vacuum separating chambers, efficient oil film sprayer, can quickly remove water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil and improve oil’s dielectric strength effectively. The oil machine can make sure electric equipments working safely and normally. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. It can be used for filtration of more than 110V substation live line work onsite.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value < 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
Technical Parameters:
Index name |
unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
||
Flow rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
||
Heating power |
Kw |
30 |
30 |
95 |
110 |
125 |
136 |
151 |
||
Total power |
Kw |
35.5 |
37.5 |
104 |
121 |
135 |
148 |
168 |
||
Working vaccum |
MPa |
-0.08- -0.099 |
||||||||
Working pressure |
MPa |
< 0.4 |
||||||||
Temperature range |
C |
20 – 80 |
||||||||
Dielectric strength |
KV |
> 70 |
||||||||
Water content |
ppm |
< 3 |
||||||||
Gas content |
% |
< 0.1 |
||||||||
Particles size |
u |
< 1 |
||||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
||||||||
Working noise |
dB(A) |
<65-85 |
||||||||

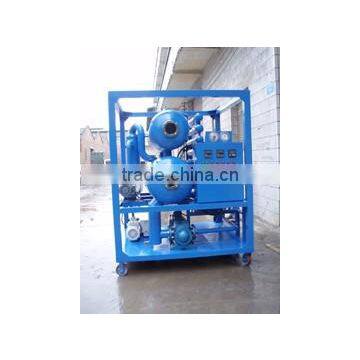

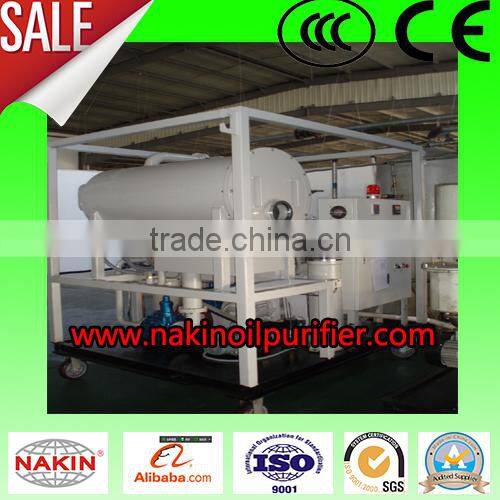

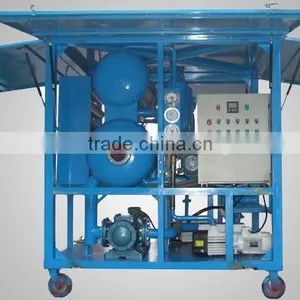

ZYD PHOTOS SHOW

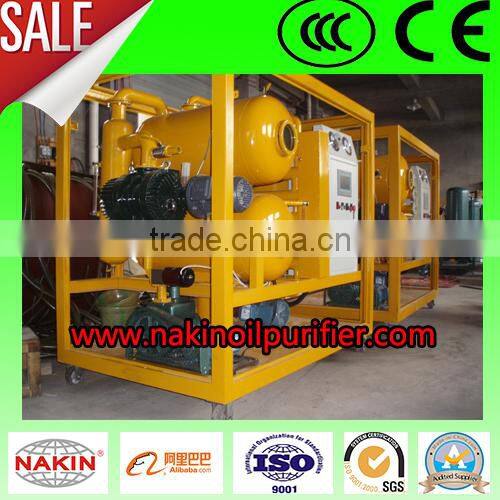

YELLOW

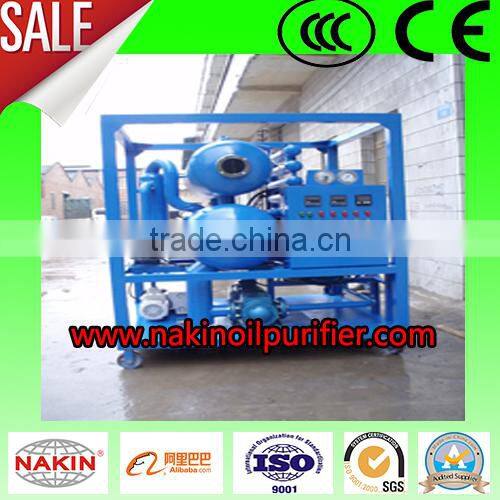

BLUE

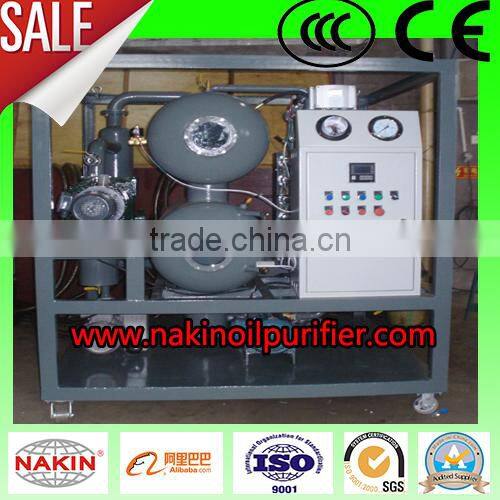

GRAY
Dark Slate Grey

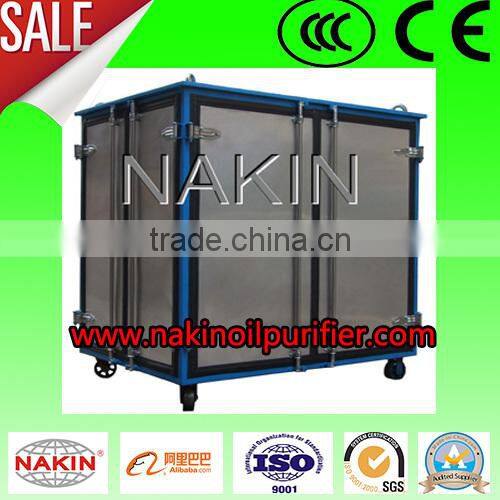

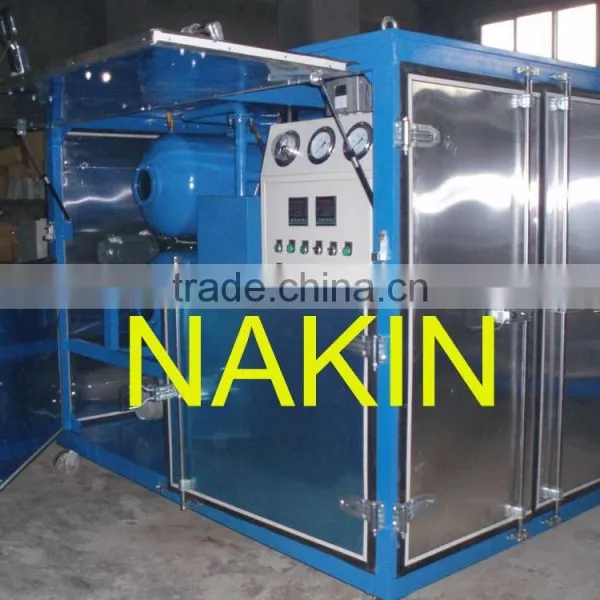

Weather-proof Transformer Oil Purifier
Company Information:
Chongqing Nakin oil purifier Manufacture Co.,Ltd is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.
We will always adhere to the business philosophy of "Responsible for product, Responsible for user, Responsible for self ", Keep the faith to create the national brand, keep innovation, keep improving and Keep making the high quality products with first-class after-service for getting the customer's trust and love. Really building a new era in Brand-NAKIN with our customers.
Delivery service
Our Products List :
ZYD vacuum transformer oil purifier
ZY vacuum transformer/insulating oil purifier
ZYM Mobile Trailer type transformer oil purifier
IIJ-II Insulating/transformer oil dielectric strength tester
TYA Lubricant/hydraulic/turbine oil purifier
JZS Waste engine oil regeneration system
TJ Coalescence and separating oil purifier
TYK Phosphate ester fire-resistant oil purifier
PF Plate pressure oil purifier, Portable oil purifier
NKEE-36 Oil moisture sensor
AD Air dryer for drying electric equipments
TPM Oil water separator
Our Honor and Quality Certificate:
China Famous brand Oil Purifier Company
Golden-supplier for China National Electric power Group
Golden-Supplier for ALSTOM, SIEMENS, SCHNEIDER Company
ISO9001 products quality certificate
CE Products safety certificate
SGS Products local testing report
More than 10 years and 50 countries and districts exporting experience
Our Service:
Our After-sales:
Engineer is available for local installation.
24 months warranty from the delivery time.
24 hours online service question and answer.
More than 10 years experience
Packaging & Shipping:
Packing and delivery way:
Wooden case Suitable for sea transportation and air transportation
If you are interested in our product, please feel free to contact me.
Contact person: Annabelle
Company Name: Chongqing Nakin Electromechanical Co., Ltd
Address: Luohuang Industrial Park Area B, Luohuang, Jiangjin, Chongqing, China
Telephone: 0086-23-85575926 Fax: 0086-23-85575930
