Vacuum Transformer Oil Filter Machine
Application:
Series ZYD Double-stage transformer oil purifier is specially made for purifying unqualified transformer oil, switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil, insulating oil and so on, ZYD oil purifier can quickly remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from oil effectively to improve oil’s dielectric strength, effectively making sure electric equipments working safely and normally. Series ZYD oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. It can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Features:
1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8. Functions of live line work onsite, vacuum drying and vacuum oiling.
Advantages:
Comparing with the single-stage vacuum oil purifier, seriesZYD adds root vacuum system, second stage of separating system to improve the effect of purification which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher. This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly. As the bridge-type vacuum linking system that can filter and be an independent vacuum power supply, this machine can be vacuum treating the electric insulating devices. Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.
Technical ParameterUs
Index name |
unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow rate |
L/H |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
|
Working vaccum |
MPa |
-0.08~-0.099 |
|||||||
Working pressure |
MPa |
≤ 0.4 |
|||||||
Temperature range |
°C |
20 ~80 |
|||||||
Dielectric strength |
KV |
≥ 70 |
|||||||
Water content |
ppm |
≤ 3 |
|||||||
Gas content |
% |
≤ 0.1 |
|||||||
Particles size |
μ |
≤ 1 |
|||||||
Power supply |
|
380V 50HZ 3Ph (As per user’s option) |
|||||||
Working noise |
dB(A) |
≤65~85 |
|||||||
Heating power |
Kw |
24 |
30 |
60 |
90 |
125 |
136 |
151 |
|
Total power |
Kw |
27.5 |
35.5 |
68 |
105 |
135 |
148 |
168 |
|
Inlet(Outlet) |
mm |
Φ25 |
Φ32 |
Φ42 |
Φ50 |
Φ50 |
Φ60 |
Φ60 |
|
Weight |
kg |
650 |
750 |
900 |
1200 |
1800 |
1950 |
2300 |
|
Dimension |
L |
mm |
1500 |
1500 |
1950 |
2100 |
2200 |
2250 |
2400 |
W |
mm |
1250 |
1250 |
1300 |
1350 |
1350 |
1400 |
1450 |
|
H |
mm |
1700 |
1750 |
2100 |
2200 |
2200 |
2200 |
2200 |
|
YELLOW
BLUE
GRAY
Dark Slate Grey
Weather-proof Transformer Oil Purifier

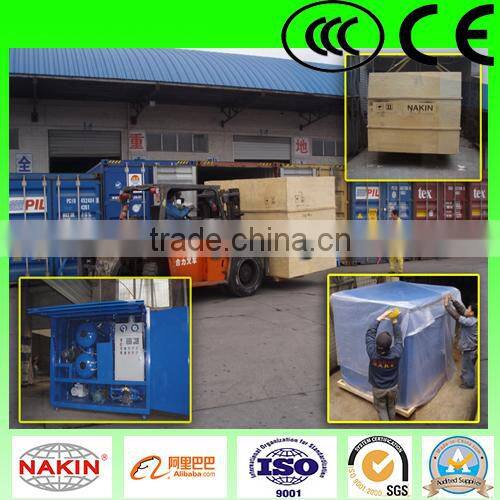

ZYD OIL PURIFIER PACKING, LOADING AND DELIVERY
Other main products
Series BZ Insulating Oil Recycling Machine
Series TYA Lubricating Transformer Oil Purifier
Series TY Turbine Transformer Oil Filtration Machine
Series JZS/JZC Engine Oil Recycling Machine
Series TPF Edible Oil Reclamation Machine
Series TYK Phosphate Ester Fire-resistant Transformer Oil Filter
Series IIJ-II Insulating Oil Dielectric Strength Tester
Series NKEE Oil Moisture Content Sensor
user’s options:
1.Trailer type with fully closed for protecting oil purifier machine(Waterproof and dustproof)
2.Choosing different kinds vacuum pump, oil pump, and electric parts.
3.Anti-explosion (EX type) electric parts.
4.Equips moisture sensor and dielectric strength tester on the machine.
5.Filter elements for different requirements on filtering precision
6.Stainless steel material for oil purifier body.
