High Performance Oil Impurity Separator/Oil Cleaning Machine/Oil Filter

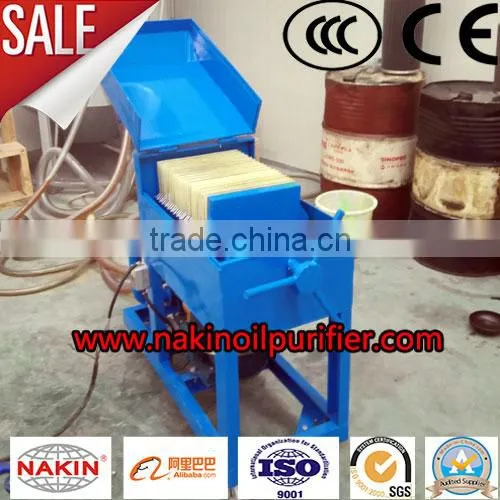

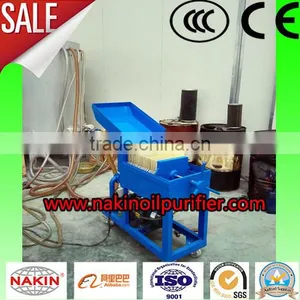

What Is PF Multifunction Plate-Press Oil Purifier?
Series PF Multifunction Plate-press oil purifier is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, if adopting stainless steel body, the machine can be as the vegetable oil purifier. The machine is mainly composed of filtering bed, oil pump and primary-filtering components. It uses filter paper as filter medium, different filtration precisions choosing different filter paper. Series PF is high filtration precision, simple structure, easy operation, low operation cost.
Main Technical Parameters:
Index name |
Unit |
PF30 |
PF50 |
PF100 |
PF125 |
PF150 |
PF200 |
PF300 |
|
Flow rate |
L/H |
1800 |
3000 |
6000 |
7500 |
9000 |
12000 |
18000 |
|
Working pressure |
MPa |
0-0.3 |
|||||||
Filtering size |
≥ m 2 |
0.48 |
0.6 |
1.35 |
1.55 |
2 |
2.5 |
3.1 |
|
Plate dimension |
mm |
180×180 |
280×280 |
||||||
Pressing way |
Manual |
||||||||
Filter ring quantity |
14 |
18 |
39 |
47 |
24 |
29 |
34 |
||
Filter plate quantity |
15 |
19 |
40 |
48 |
25 |
30 |
35 |
||
Power |
KW |
1.1 |
2.2 |
3 |
5.5 |
||||
Inlet calibre |
1 |
1 1/4 |
2 1/2 |
||||||
Outlet calibre |
3/4 |
1 1/4 |
2 1/2 |
||||||
Dimension |
L |
mm |
800 |
900 1000 |
1100 |
1200 |
|||
|
W |
mm |
300 |
440 |
|||||
|
H |
mm |
720 |
840 |
1000 |
||||
Filter paper |
mm |
180×180 |
280×280 |
||||||
Weight |
kg |
50 |
55 |
85 |
110 |
150 |
175 |
190 |
|
Particles size |
≤ 1-3 µm |
||||||||
1.Each model machine packed in one high quality wooden case; Durable wooden case packaging suitable for long distance ocean/train transportation.
2.Shipping on time according to the customer requierment.
3.Appointed shipping company could be used in shipment.
4.Whole process monitoring insures the safety of goods unitl arrival.
1.More than one year warranty, All our products have been approved by CE , ISO and other certificates, and providing long term technical support and innovation upgrade guidance;
2. Professional team and 24-hour after-sale service with fluent English and professional knowledge;If there is something wrong with the equipment,we will give a response and provide the solutions in 24h.
3. Provide on-site technology support for Each Customer.Engineers Overseas Aftersale Service are available;
4.All NAKIN manufactured machines will be guaranteed with spare parts and service for one year upon the receiving of shipment;
5.Provide best necessary spare parts at low price (some for free).
Our Certificates:

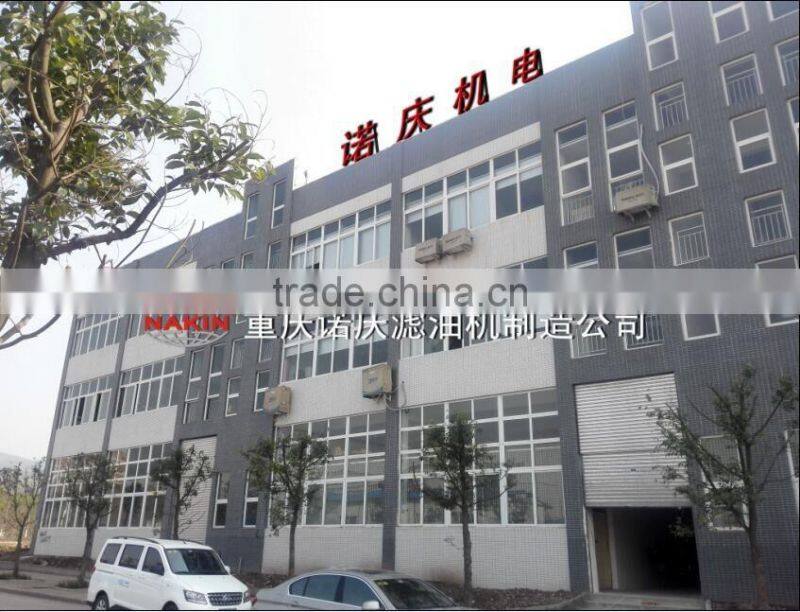

Nakin Electromechanical Co., Ltd is leading machinery manufacture, our products are mainly transformer oil purifier, turbine oil purifier, lube oil filtration, engine oil regeneration machine in high quality and competitive price. We has the strong technology and experience in the vacuum oil purifier developing, our machine have been exported to many countries, and service in many industries.
Our products list:
High effective vacuum transformer oil purifier, oil filtration
Double stages insulating oil purifier,oil treatment,oil purification
Mobile/trailer type transformer oil treatment,oil filtration mnachine
Air dryer for dring electric equipments
Turbine oil purifier,oil treatment
Coalescence and separating oil filter,oil purifier machine
Lubricating oil purifier/hydraulic oil purification
Phosphate ester fire-resistant oil purifier, oil filtration machine
Engine oil regeneration system, waste oil recycling
Transformer oil regeneration device,oil pruifier
Plate pressure oil filter, oil purifier machine
Portable oil piurifier,oil filtering,oil filter
BDV oil tester,insulating oil dielectric strength tester
Oil moisture sensor,water content tester
Office:

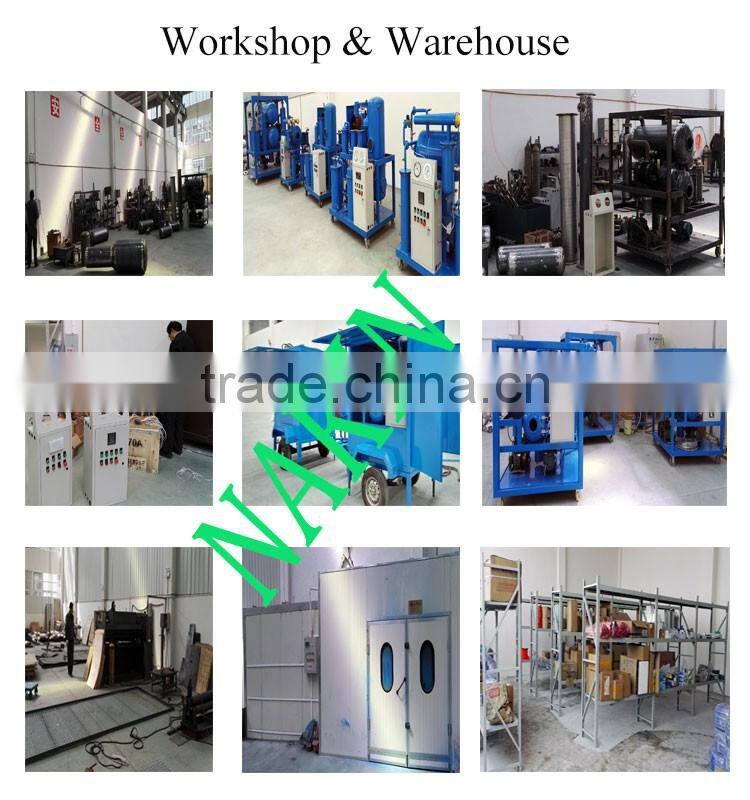

Workshop & Warehouse:
How to Contact Us?
1.Whatsapp/Tel: +86 182 2335 8936
2.Skype:jerrytan54
3.Trade Manager:cn1516689853thfz
If you want to know more details, please feel free to contact us
