Nakin ZYD Double Stages Vacuum Insulating Oil Purifier
Application:
1. ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index.
2. It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV.
3. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.
Technical Parameters:
Index name | unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 |
Flow rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Working vaccum | MPa | -0.08- -0.099 | ||||||
Working pressure | MPa | < 0.4 | ||||||
Temperature range | C | 20 - 80 | ||||||
Dielectric strength | KV | >70 | ||||||
Water content | ppm | <3 | ||||||
Gas content | % | <0.1 | ||||||
Particles size | μ | <1 | ||||||
Power supply |
| 380V 50HZ 3Ph (As per user's option) | ||||||
Working noise | dB(A) | <65-85 | ||||||
Heating power | Kw | 24 | 30 | 60 | 90 | 125 | 136 | 151 |
Total power | Kw | 27 | 35.5 | 68 | 105 | 135 | 148 | 168 |

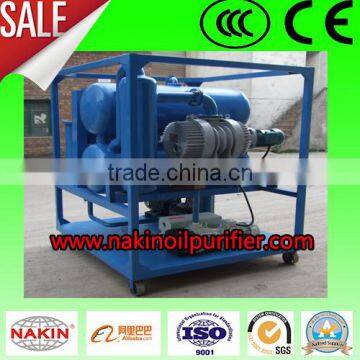

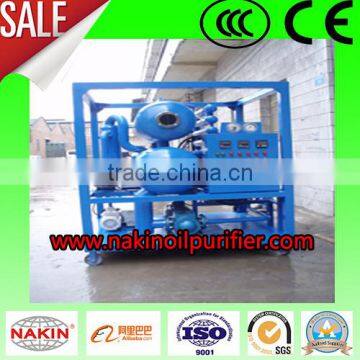

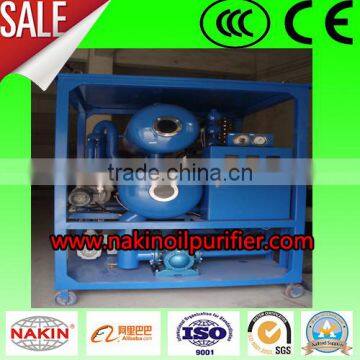

Product images:
Our Company:
NAKIN Company is professional vacuum oil purifier/oil filtration, supply various vacuum oil treatment plants, like the transformer oil regeneration machine, online-turbine oil treatment, Old lube oil filtration, engine oil regeneration machine in good quality and competitive price.
Packaging:
Each product with one solo wooden case, suiting for transportation. Or packaging as your requirments.
Shipping:
Sea shipping, Land transportation, Air transportation, Express.
After sales services:
1. Engineers are available for local installation.
2. Provided great after sales services within 12 hours.
3. Provided profesional suggestions about oil purifier.
We also provide:
ZYD-Double vacuum Transformer oil purifier
ZYM-Movable insulating oil purification cart
AD-Electric transformer air drying equipments
TY-Online Turbine oil treatment
TJ-Fuel oil filtration unit
TYA-Lubricating oil purifier/hydraulic oil purification
JZS-Engine oil regeneration system, waste oil recycling
BZ-Transformer oil regeneration device
PF-Press paper filter machine
JL-Portable oil piurifier,oil filtering,oil filter
BDV dielectric strength tester for transformer oil
NKEE-Oil moisture sensor
If you have any questions, please contact me at any time.
