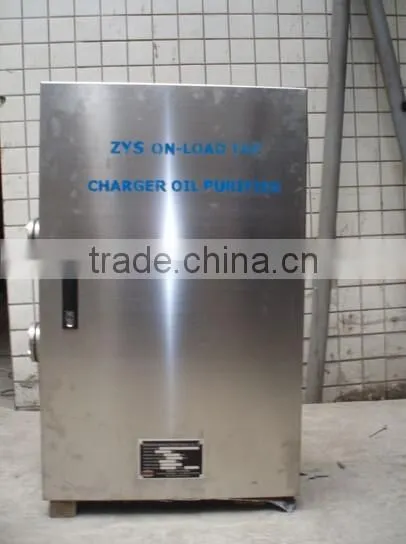

Help CenterIndustrial ZYS-15 On-load Tap Changer Oil Filtration Machine
Related Products
-
ZYD 1800l/h Mobile Trailer High Vacuum Recycling Transformer Oil PurifierUS$ 1 - 12,500MOQ: 1 Unit -
NAKIN REMOVE WATER PARTICLE AND GASS Transformer Oil Purifier,Oil FiltrationUS$ 1 - 12,500MOQ: 1 Unit
-
High Quality Nakin ZY Single Stage Vacuum Insulating Oil PurifierUS$ 1 - 10,000MOQ: 1 Piece
-
High Quality Nakin ZY Single Stage Vacuum Insulating Oil ReconditionUS$ 1 - 10,000MOQ: 1 Piece
-
High Quality Nakin ZY Single Stage Vacuum Insulating Oil RegenerationUS$ 1 - 10,000MOQ: 1 Piece
Application:
Transformer with On-load Tap Changer is widely applied in the electric power industry. On-load Tap Changer takes much convenience to the transformer-control; meanwhile there is some trouble with insulating oil of On-load Tap Changer, because of heavy-continual voltage changed, which makes insulating oil worse quickly and easy, Bad insulating oil is dangerous to transformer working.
ZYS15 On-load Tap Changer oil filtration machine is mainly used for purifying the insulating oil of On-load Tap Changer, this oil filtration machine works online, it removes water, free carbon and particles from oil effectively and recovers oil’s dielectric strength to make sure the transformer working safely and reliable.
Features:
1. Automatically working online, prolong equipment working time.
2. Reliable circuit-loop design; Safe and easy operating.
3. Special filters are good at removing water, free carbon and particles
4. Automatically pressure alarm system
5. Machine body use stainless steel, waterproof grade achieves to IP55.
Technical Parameters:
Indexes |
Unit |
ZYS-15 |
Capacity |
L/h |
900 |
Filtering size |
μm |
≤1 |
Working pressure |
MPa |
≤0.4 |
Liquid temperature |
℃ |
-20~100 |
Power |
kW |
0.55 |
Inlet/Outlet |
mm |
≤ DN25 |
Power supply |
—— |
380V 50Hz 3Ph |
Weight |
KGS |
100 |
Size |
mm |
600*700*750 |
Oil parameters after purified | ||
Cleanness |
NAS |
6 |
Water content |
PPM |
≤25 |
Dielectric strength |
KV |
≥50 |

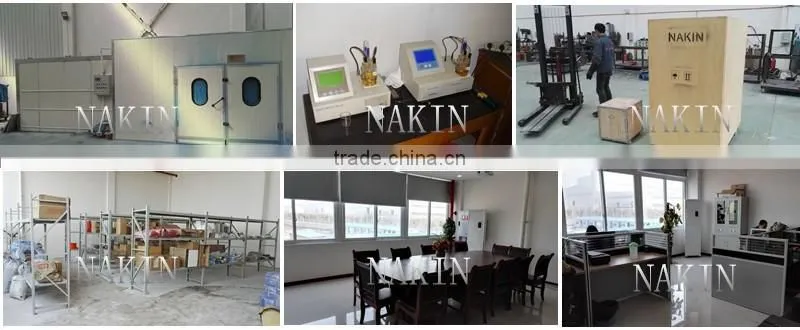

About us:
CHONGQING NAKIN ELECTROMECHANICAL CO. Ltd. Is a professional mechanism manufacturer from Chongqing China. The company is joint-stock high-tech enterprise, after ten years of development, company has grow into a comprehensive enterprise, engaging in vacuum oil purifier producing, airless tools producing, and Imp&Exp trading. NAKIN products are widely applied in projects of transformer substation, electric department, steel structure, bridge, auto, railway, aviation, chemicals, petroleum etc. The products are exported to more than 30 countries and areas, such as Europe, America, Middle East, Southeast Asia and so on. The product get the good reputation from the dealer and end user.
Since the foundation of our company, we always devotes our efforts to developing good quality products. Relying on strong and completely technical supports, advanced producing equipment, perfect quality inspection method, fast and outstanding after-services, our company has developed into a national renowned mechanism equipment manufacturer in China.
We have a number of experts and experienced engineers came from the national famouse military enterprise. Under the advanced management-mechanism and encouraging policy, Company provides the enough developing space for each staff, encourages the staff exert potential talent. All NAKIN people are actively dedicate the passion and wisdom to the development of good quality products, creating and building the brand-nakin. The guideline of product' S development always aimed at the International forefront technology. Many products reached the international advanced level.
CHONGQING NAKIN ELECTROMECHANICAL CO. Ltd will always adhere to the business philosophy of "Responsible for product, Responsible for user, Responsible for self ", Keep the faith to create the national brand, keep innovation, keep improving and Keep making the high quality products with first-class after-service for getting the customer' S trust and love. Really building a new era in Brand-NAKIN with our customers.
Products list:
ZY-Single stage vacuum transformer oil purifier/oil filtration machine
ZYD-Double stages vacuum Transformer oil purifier/oil filtration machine
ZYM-Mobile type transformer oil purifier/oil filtration machine
AD-Air drying machine
TY-Vacuum Turbine oil purifier/oil filtration machine
TJ-Coalescence-Separating oil purifier/oil filtration machine
TYA-Vacuum Lubricating oil purifier/oil filtration machine
CXJ-Centrifugal oily water separating machine
JZS-Waste Engine oil regeneration machine
JZC-Black waste oil distillation system
ZYS-On-load Tap Changer Oil Purifier
BZ-Transformer oil regeneration device
PF-Press paper oil filtration machine
JL-Portable oil oil purifier/oil filtration unit
BDV Dielectric oil's breakdown voltage tester
NKEE-Transformer oil/lube oil moisture sensor
Oil purifier parts and various oil testing equipments (Oil Acid tester, oil viscosity tester)
