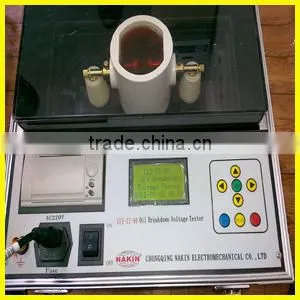

0-100KV Insulating Oil Breakdown Voltage Tester
Application:
IIJ-II oil tester is the most advanced and complete design for repeatable, accurate measurement of breakdown voltage of insulating oils used in electrical equipment, the testing cells is made according to standard IEC156.Including preprogrammed test sequences, internal momory, built-in printer, LCD displayer. The oil tester can be used for both field and laboratory.
Technical Parameters:
1. Power supply: AC220V±10%, 50Hz
2. Output voltage: 0~100KV(60KV, 80KV,100KV)
3. Capacity: 1.2KVA(1.6KVA,2.0KVA)
4. Speed of pressure rise: about 2KV/S
5. Voltage test precision: ±1%
6. Breakdown sensitivity: <2KV
7. Wave difference: ≤3%
8. Time of breakdown: ≤10ms
9. Working condition
temperature : 0℃~40℃ humidity : The biggest comparatively humidity85%
10. Reserve circumstance
temperature : -20℃~60℃ humidity : The biggest comparatively humidity75%
Working altitude: <1500m (if over 1500m can be designed specially)
Technical Parameters:
Power supply |
AC220V±10%,50Hz |
Output voltage |
0~100KV(60KV,80KV,100KV) |
Capacity |
1.2KVA(1.6KVA, 2.0KVA) |
Speed of pressure rise |
about 2KV/S |
Voltage test precision |
±1% |
Breakdown sensitivity |
<2KV |
Wave difference |
≤3% |
Time of breakdown |
≤10ms |
Working condition-temperature |
0℃~40℃ |
-humidity |
The biggest comparatively humidity85% |
Reserve circumstance-temperature |
-20℃~60℃ |
-humidity |
The biggest comparatively humidity75% |
- Working altitude |
<1500m (if over 1500m can be designed specially) |
Dimension |
480mm*460mm*460mm |
