Product Introduction

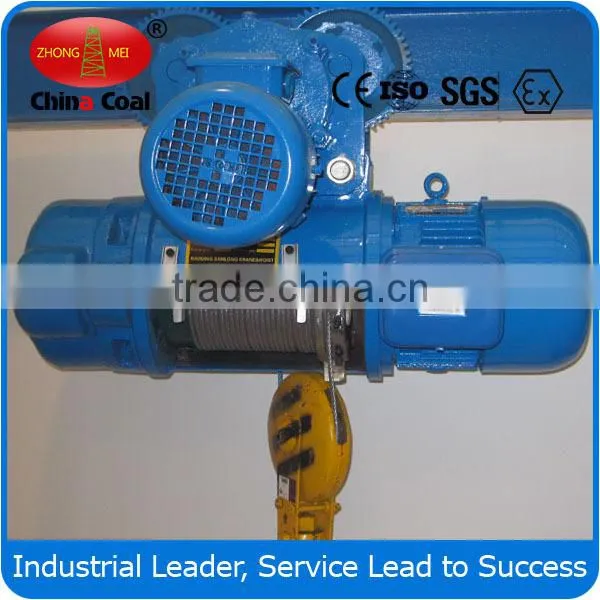

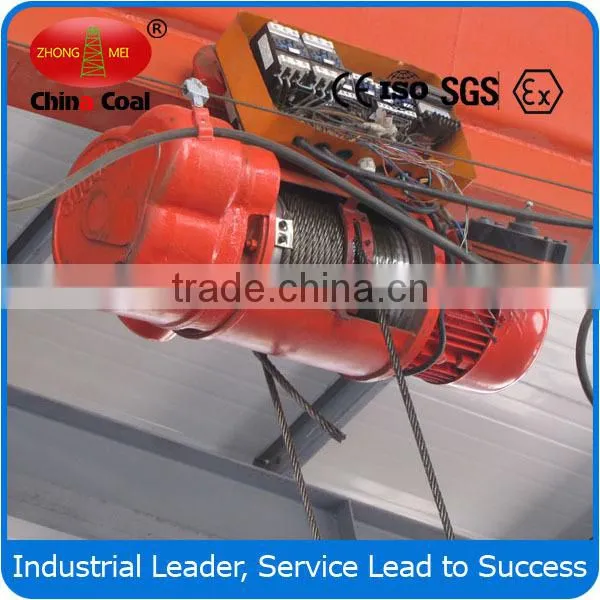

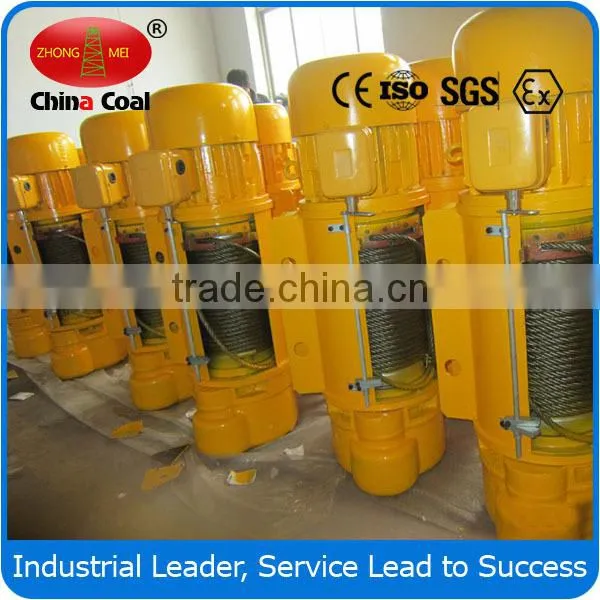

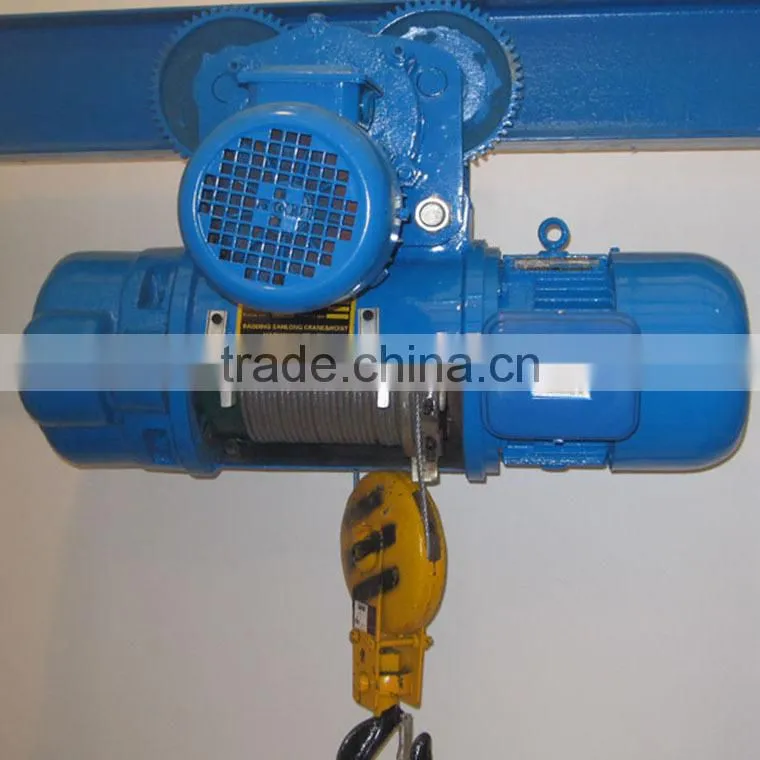

CD1 Type Wire Rope Electric Hoist
CD1 type wire rope electric hoist is a small light lifting equipment.

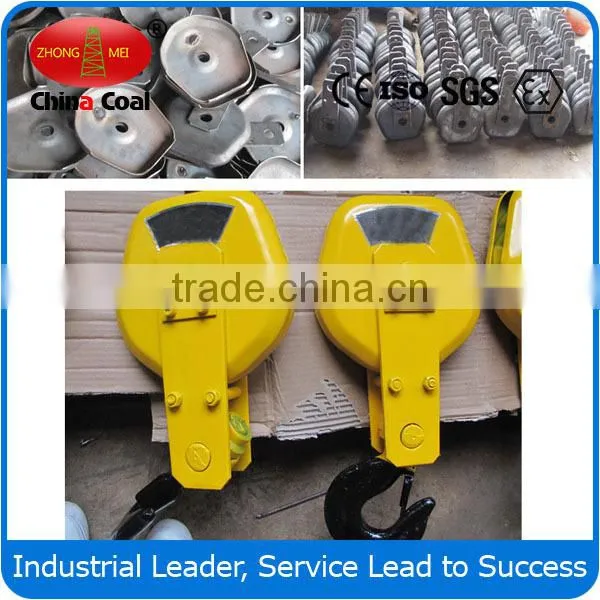

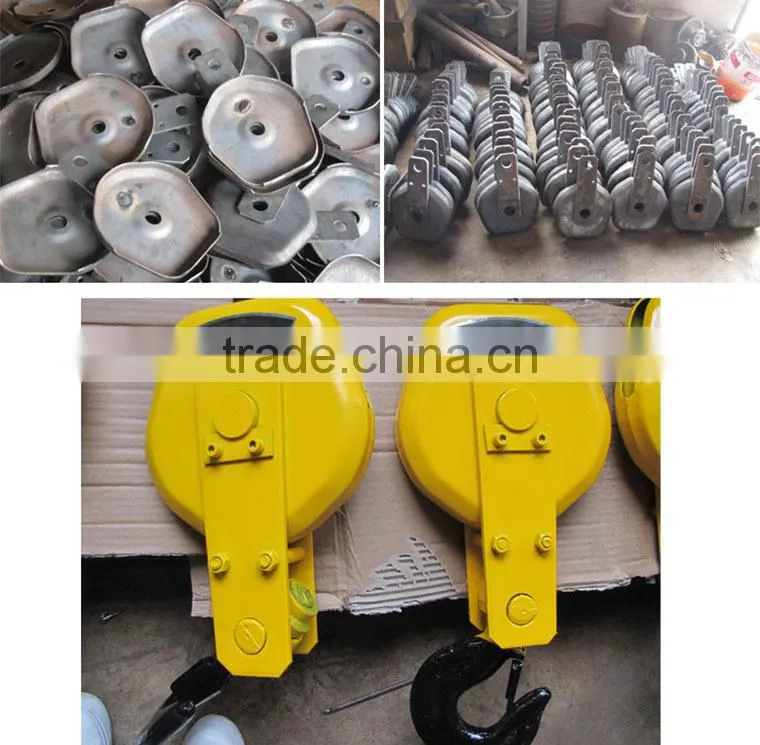

CD1 type wire rope electric hoist the main structure: reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device and stopper. Motor is with cone rotor motors, set the power and braking force in one.

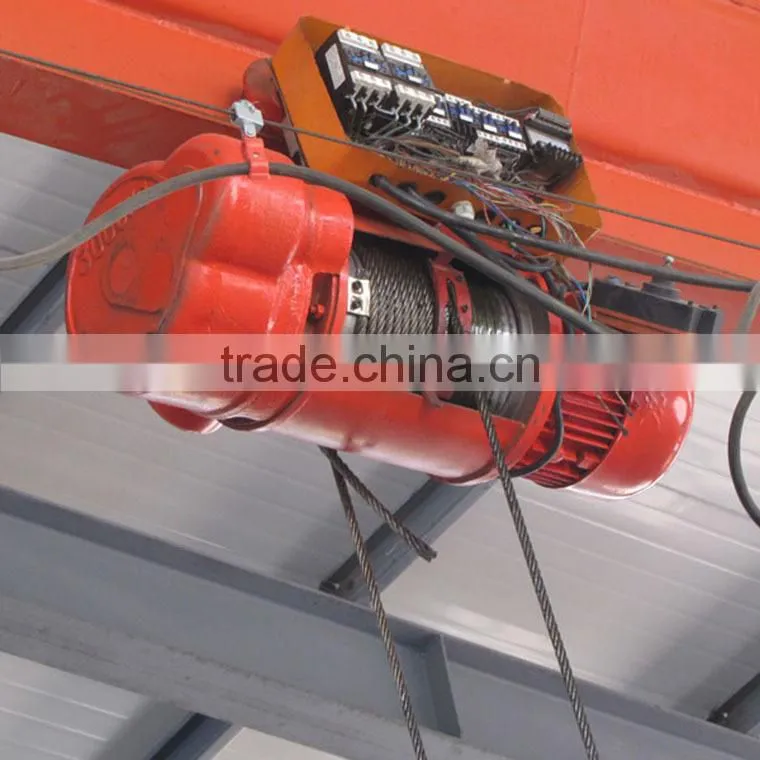

CD1 type wire rope electric hoist installation: single beam, bridge cranes, gantry cranes, suspension cranes. Take a little change,can also be used as a winch, so it is the necessary machine to improve working efficiency and conditions .
Main Parameter
Model |
0.25TON |
0.5TON |
1TON |
2TON |
3TON |
5TON |
10TON |
Lifting capacity(t) |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
Lifting height(m) |
3-9 |
6-12 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
Lifting speed m/min |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
8(8/0.8) |
7(7/0.7) |
Running speed(m/min) |
20(30) |
||||||
Rope size |
6×19-3.6 |
6×37-4.8-180 |
6×37-7.4-180 |
6×37-11-155 |
6×37-13-170 |
6×37-15-200 |
6×37-15-200 |
Rail beam |
16-22b |
16-28b |
16-28b |
20a-32c |
20a-32c |
25a-63c |
28a-63c |
Min.radius of ring rail (m) |
0.8 |
1.5 |
1.5-4 |
2-4 |
2-4 |
2.5-5 |
3.5-9 |
Voltage (v) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
Frequency (hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
Phase |
3 |
3 |
3 |
3 |
3 |
3 |
3 |

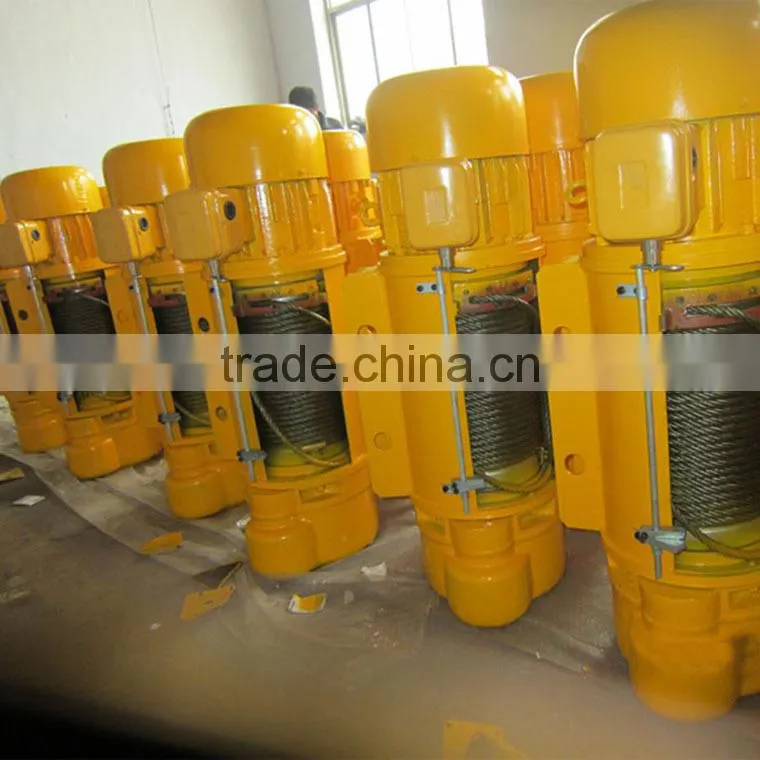

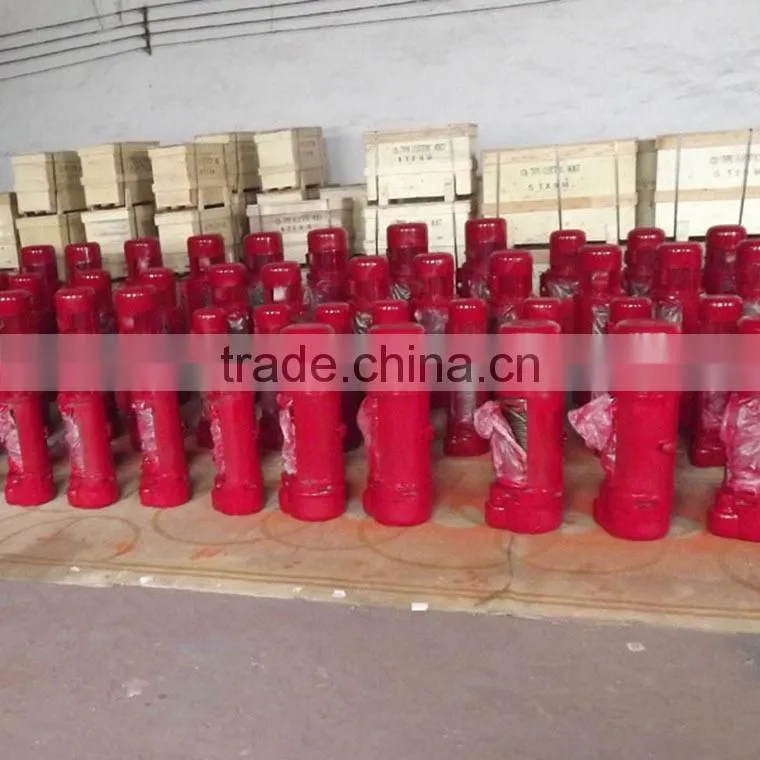

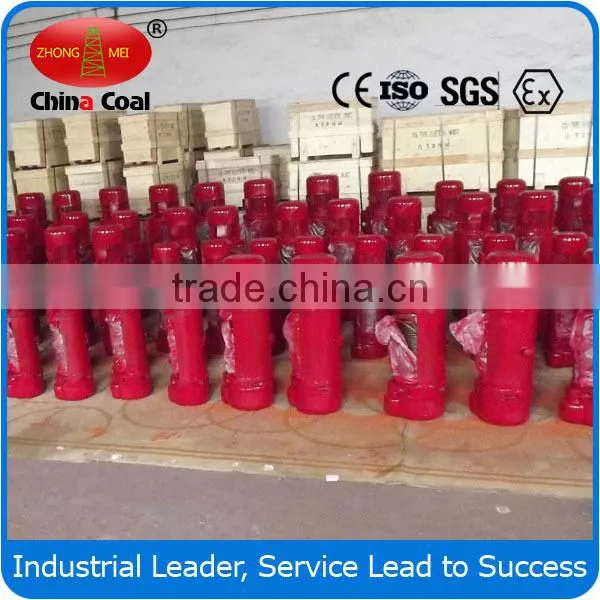

Figure Photos
