Product Introduction

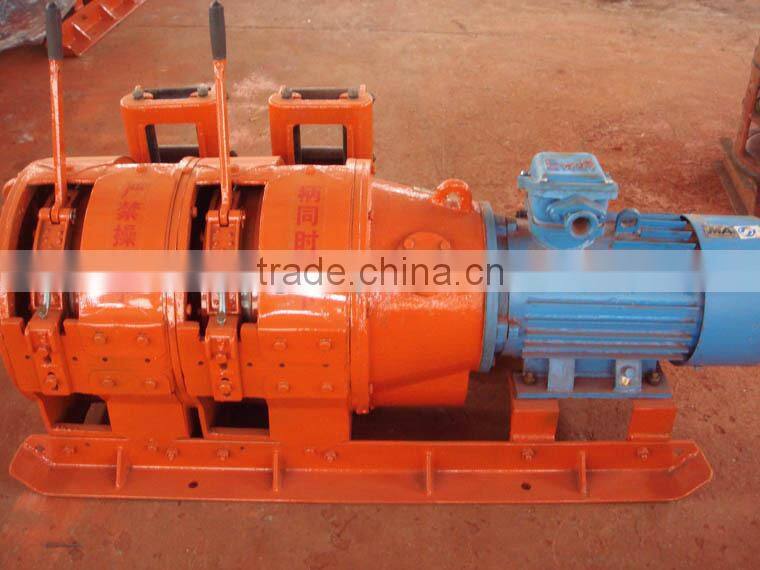

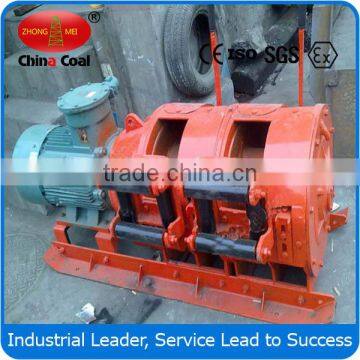

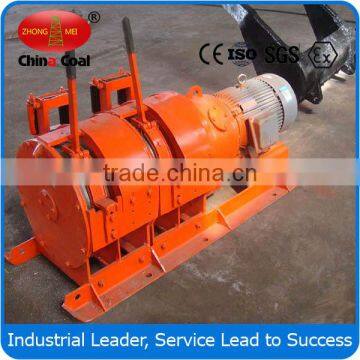

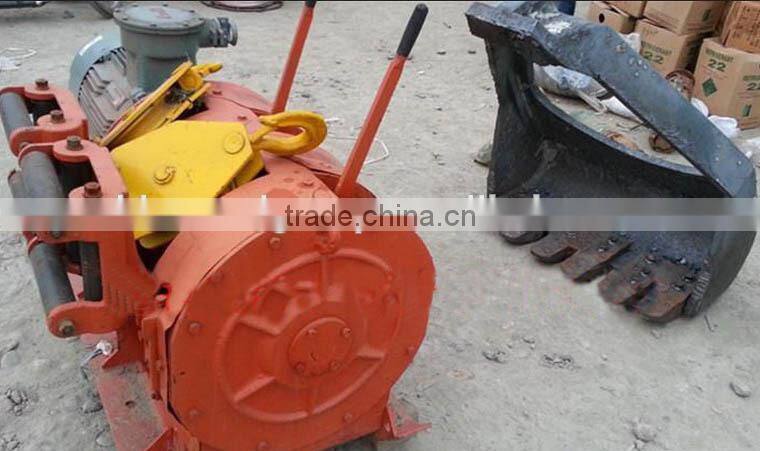

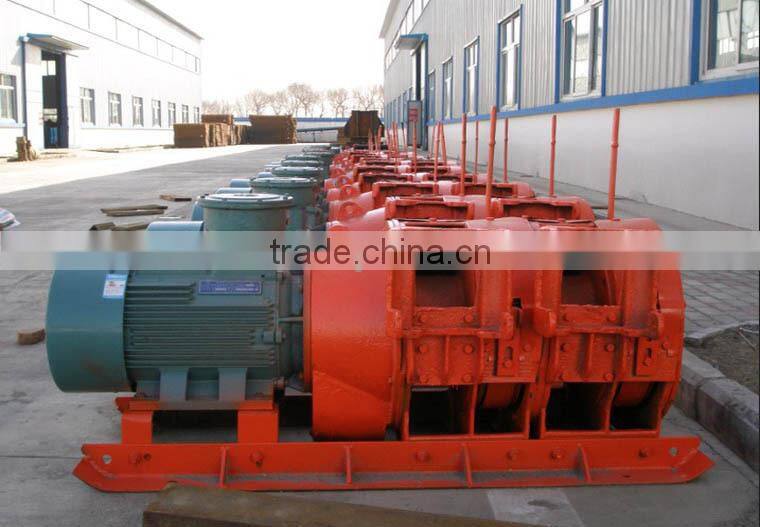

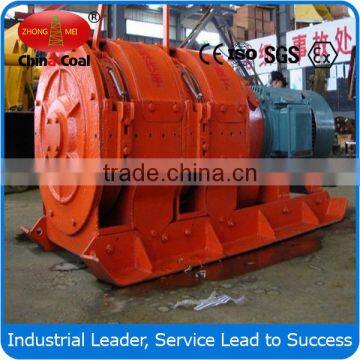

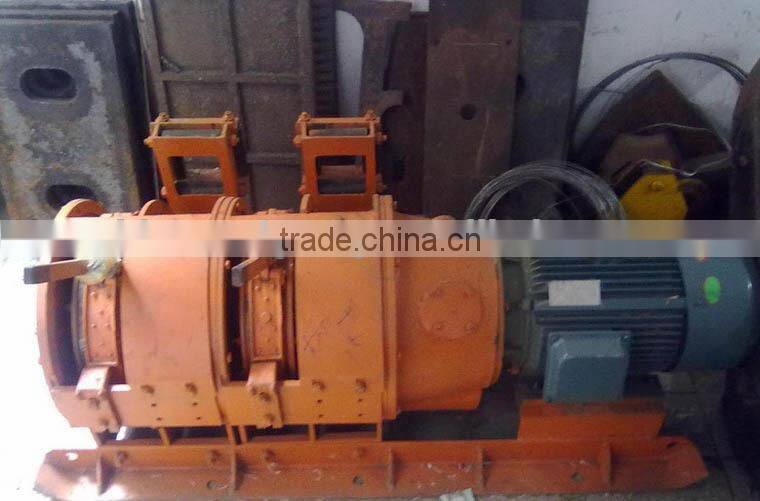

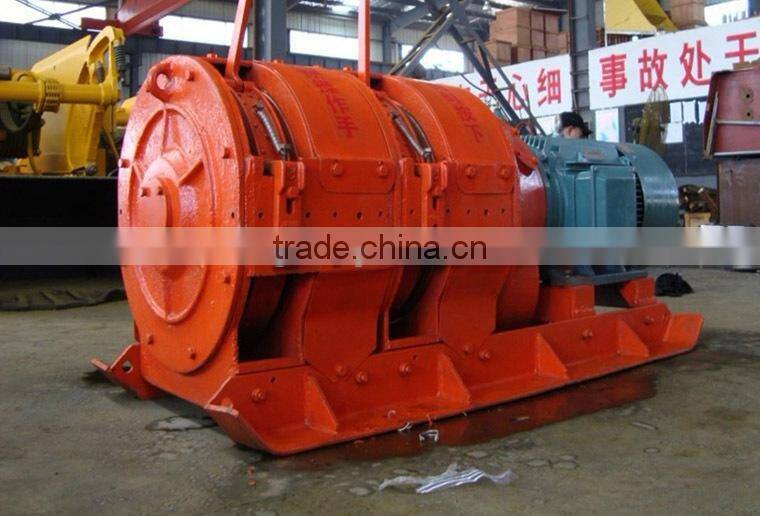

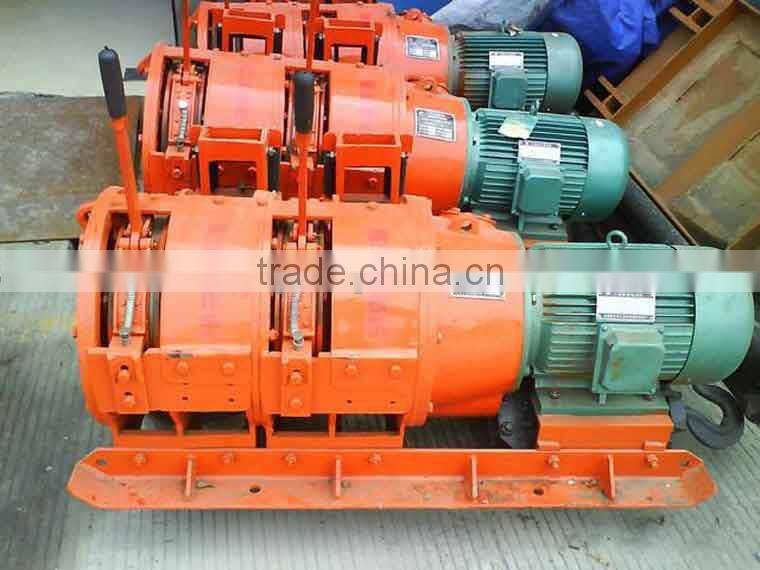

Electric winch 2JPB series underground mining scraper winch:
JPB series scraper winch is mainly used for metallic ore and other mines pit or outdoor ore handling or fill work! Mainly used for the level of the shipment, also can be used for Angle is not more than 44ºof the shipment, can be used as the slope lifting equipment. The driver can winch by hand in the control.
Remark: The scraper winch can not be used as the lifting equipment. If you want to lifting things, please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a round-trip movement to rake the material.
3. Mining scraper winch working principle:
wire rope wrapped around the drum tow the rake do reciprocating movement to transported materials.
Main Parameter
Electric winch 2JPB series underground mining scraper winch
|
Item |
Unit |
Model of winch |
|||||||
|
2JP-7.5 3JP-7.5 |
2JP-15 3JP-15 |
2JP-30 3JP-30 |
2JP-55 3JP-55 |
2JP-75 |
2JP-90 |
2JP-110 |
|||
Volume of scraper pan |
|
0.1 |
0.25 |
0.4 |
0.6 |
1.0 |
1.5 |
1.6 |
|
|
Average puling Force of working drum |
KN |
8 |
14 |
28 |
50 |
54 |
62 |
78 |
|
Average Speed of wire rope |
m/s |
1.0 |
1.1 |
1.2 |
1.2 |
1.3 |
1.3 |
1.3 |
|
Diameter of wire rope |
mm |
9.3 |
12.5 |
15.5 |
18.5 |
20 |
23 |
24.5 |
|
Rope capacity of drum |
m |
45 |
80 |
90 |
100 |
180 |
125 |
110 |
|
Electric power |
KW |
7.5 |
15 |
30 |
55 |
75 |
90 |
110 |
|
Motor speed |
m/s |
1440 1210 |
1460 1525 |
1470 1685 |
1485 2070 |
1480 |
1480 |
1480 |
|
Overall dimension |
length |
mm |
1210 |
1525 |
1685 |
2070 |
2350 |
2400 |
2600 |
width |
mm |
565 |
660 |
380 |
1010 |
1515 |
1515 |
1515 |
|
height |
mm |
490 |
620 |
735 |
890 |
1300 |
1300 |
1300 |
|

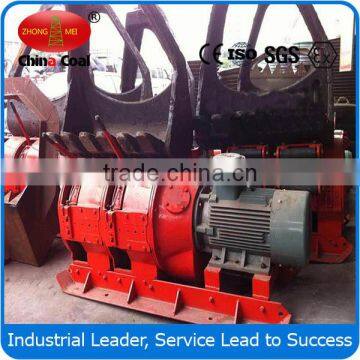

Figure Photos
