Giant XY Stage Complete Kit for DIY CO2 Laser Engraving and Cutting Machine 1325
US$ 1,600 - 3,000
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZRET
Model Number:
1318 1325 1518 1525 1820 1825 2030
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Dongguan Guangzhou Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine PartsUS$ 550 - 550MOQ: 1 Set -
1390 1300*900mm 52" x 36" XY Stage Table Bed Plotting for CO2 Laser Engraving and Cutting MachineUS$ 785 - 885MOQ: 1 Set
-
9060 900*600mm 36" x 24" XY Stage Table Bed Plotting for CO2 Laser Engraving and Cutting MachineUS$ 750 - 850MOQ: 1 Set
-
6040 600*400mm 24" x 16" XY Stage Table Bed Plotting for CO2 Laser Engraving and Cutting MachineUS$ 710 - 810MOQ: 1 Set
-
1610 1600*1000mm 63" x 40" Whole Set CO2 Laser Spare Parts DIY Gantry Assembly Guiding Linear Rail Mechatronics Optics HardwareUS$ 700 - 800MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
SZRET
Model Number
1318 1325 1518 1525 1820 1825 2030
1318 1325 1518 1525 1820 1825 2030
52" x 71" 52" x 99" 59" x 71" 59" x 99" 71" x 78" 71" x 99" 78" x 119"

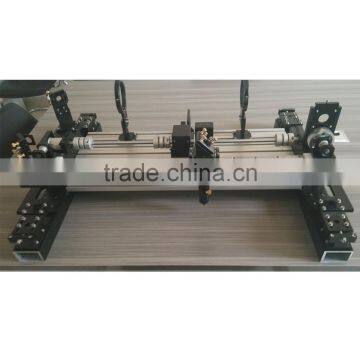

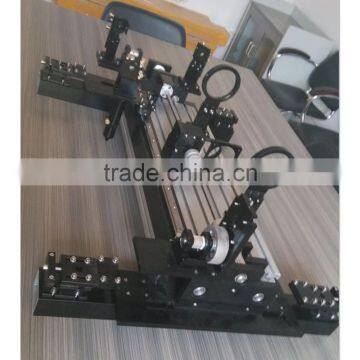

Flatbed co2 laser cutting machine mechanical parts whole kit, laser head, mirror mounts,motor base,belt fixture,speed reducer, belt gears
Optical and mechanical parts whole sets for flat bed cutting machine
X axis uses 57 motor,y axis uses one 86 motor.
X needs 20mm dia lens 25mm dia mirror, x axis needs HTD-3m 15mm belt.
Y axis needs HTD-5m 40mm belt, x axis uses 15mm rails, y axis use 20mm rails.
| No. | Item | Unit | Quantity |
| 1 | belt fixture | Piece | 4 |
| 2 | right Y axis fixture board | Piece | 1 |
| 3 | left Y axis fixture board | Piece | 1 |
| 6 | laser tube supports | Piece | 2 |
| 7 | first reflective mirror mount | Piece | 1 |
| 8 | second reflective mirror mount | Piece | 1 |
| 9 | laser head | Piece | 1 |
| 10 | X axis belt fixture | Piece | 1 |
| 11 | X axis speed reducer | Piece | 1 |
| 12 | X axis 57 motor support | Piece | 1 |
| 13 | Y axis 86 motor support | Piece | 1 |
| 14 | slider block | Piece | 6 |
| 15 | X axis motor gear | Piece | 1 |
| 16 | Y axis motor gear | Piece | 1 |
| 17 | 3M-327 loop belt | Piece | 2 |
| 18 | Rail support | Piece | 10 |
| 19 | 12mm diameter optical axis | Meter | 1.15 |
| 20 | 12mm shafter connector | Piece | 4 |
| 21 | 45*50 square base pipe | Meter | 1.42 |
| 22 | RE4080 aluminium profile | Meter | 4.26 |
| 23 | RE4040 aluminium profile | Meter | 1.42 |
| 24 | Rail base | Meter | 2.94 |
