Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts

Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts thumbnail-1
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts thumbnail-2
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts thumbnail-3
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts photo-1
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts photo-2
Whole Set Optical and Mechanical Parts for Large Format Co2 Laser Cutting Machine Parts photo-3
US$ 550 - 550 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SZRET
Model Number:
1318 1325 1518 1525 1820 1825 2030
Contact Supplier Request Quote Chat Now
Shenzhen Reliable Electromechanical Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Dongguan Guangzhou Shanghai Qingdao Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SZRET
Model Number 1318 1325 1518 1525 1820 1825 2030

1318 1325 1518 1525 1820 1825 2030

52" x 71" 52" x 99" 59" x 71" 59" x 99" 71" x 78" 71" x 99" 78" x 119"

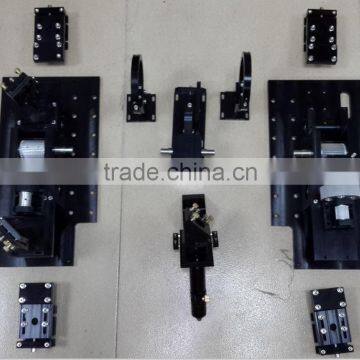

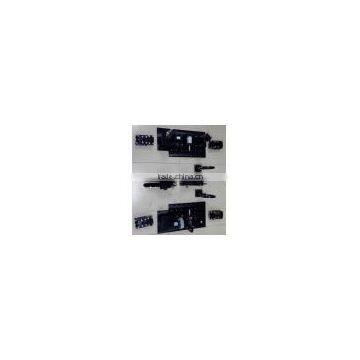

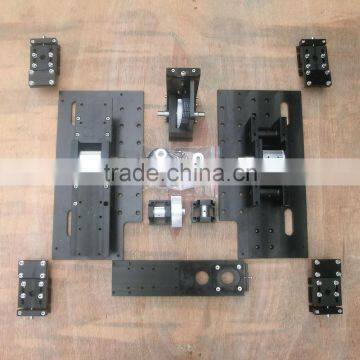

Flatbed co2 laser cutting machine mechanical parts whole kit, laser head, mirror mounts,motor base,belt fixture,speed reducer, belt gears

Optical and mechanical parts whole sets for flat bed cutting machine

X axis uses 57 motor,y axis uses one 86 motor.

X needs 20mm dia lens 25mm dia mirror, x axis needs HTD-3m 15mm belt.

Y axis needs HTD-5m 40mm belt, x axis uses 15 rails, y axis use 20mm rails.

item

products

pc/set

quantity

1

belt fixture

PC/set

4

2

right Y AXIS FIXTURE BOARD

PC/set

1

3

left Y AXIS FIXTURE BOARD

PC/set

1

6

LASER TUBE SUPPORTS

pc/set

2

7

FIRST REFLECT MIRROR MOUNT

PC/set

1

8

SECOND REFLECT MIRROR MOUNT

PC/set

1

9

LASER HEAD

PC/set

1

10

X AXIS BELT FIXTURE

pc/set

1

11

X AXIS SPEED REDUCER

PC/set

1

12

X AXIS 57 MOTOR SUPPORT

PC/set

1

13

Y AXIS 86 MOTOR SUPPORT

PC/set

1

14

SLIDER BLOCK

pc/set

6

15

X AXIS MOTOR GEAR

PC/set

1

16

Y AXIS MOTOR GEAR

PC/set

1

17

3M-327 LOOP BELT

PC/set

2



Whole set optical and mechanical parts for large format co2 laser cutting machine parts
