Place of Origin Guangdong, China
Brand Name SZRET
Model Number 6040 9060 1390 1610

outside slider whole set parts
with motor, driver, belt, lens, mirrors
double head add 100usd
size can be ordered

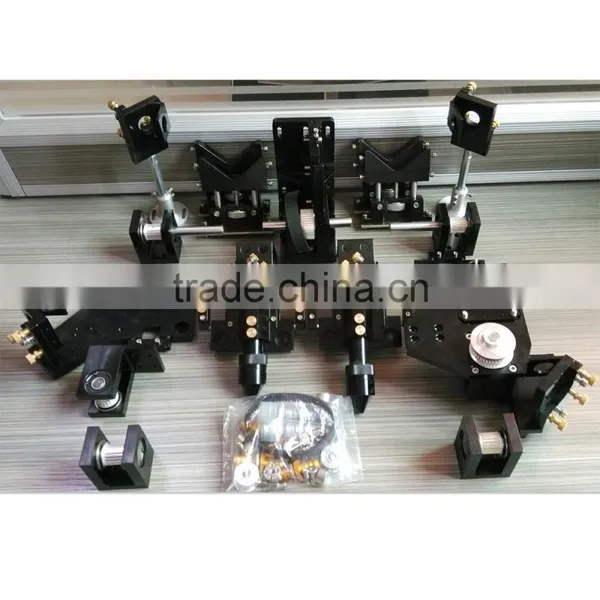

Kit major parts summary :
- 5x 2" anodized aluminum base bars
- 1x "X" slider & 2x "Y" slider
- 2:1 reduction gear box for X & Y
- 2x Nema 23 high torque 5.2A 3-phase stepping motor
- 1x laser head for 25mm mirror and 20mm lens
- 2x mirror mounts for 25mm mirror
- 2x tube mounts
- 2x limit switches
- 4x 3-band axial coupling
- 1x "X" slider track
- 2x "Y" slider track
- 2x stainless steel Y axial

Specification
-Condition: New
-Speed: X: 900mm/s, Y: 500mm/s (with driver set to 1/32)

Specification
X motor:

  • Brand: Leadshine 573S15 3-phase
  • Step angle: 1.2 degree
  • Torque: 188oz-in
  • Current: 5.2A
  • Resistance: 0.9ohm
  • Inductance: 1.35mH
  • Detente torque: 700g
  • No. Wire: 3
  • Weight: 1.1Kg (2.4lb)
  • Length: 79m

Y motor

  • Brand: Leadshine 573S15 3-phase
  • Step angle: 1.2 degree
  • Torque: 188oz-in
  • Current: 5.2A
  • Resistance: 0.9ohm
  • Inductance: 1.35mH
  • Detente torque: 700g
  • No. Wire: 3
  • Weight: 1.1Kg (2.4lb)
  • Length: 79mm

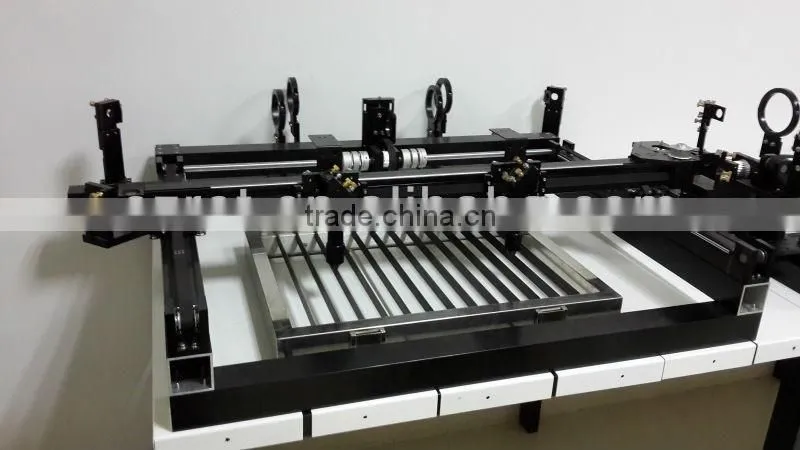

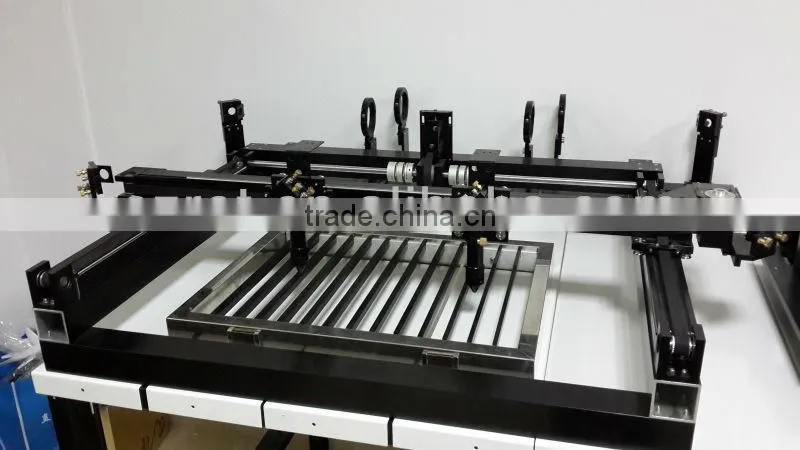

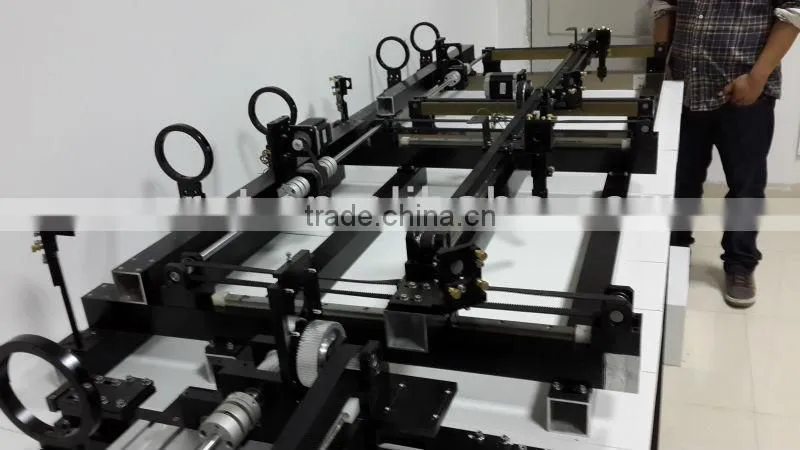

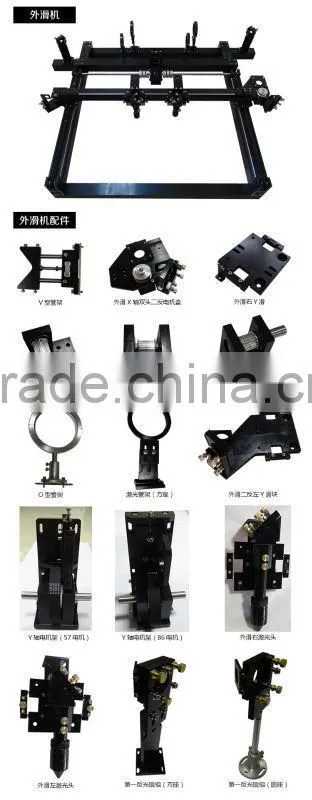

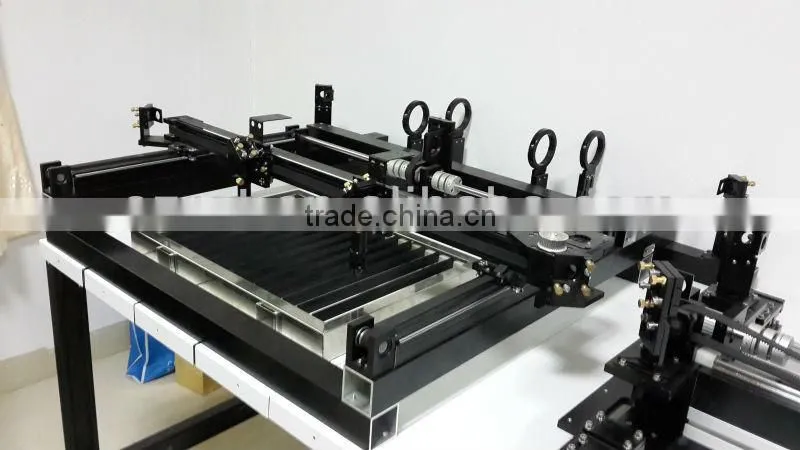

Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610

Outside slider whole set parts with motor, driver, belt, lens, mirrors 6040 9060 1390 1610
