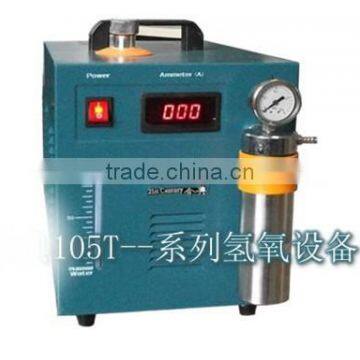

high quality105T jewelry polishing machine
- 500 Set / Sets per Month
- shenzhen dongguan shanghai guangzhou ningbo
- T/T L/C D/P D/A Credit Card PayPal
- jewely scale
- jewely scale
- jewely scale
- Metal Led Telescoping Magnetic Pickup Tool
- Ring Sizer UK/US Official Ring Size Measuring Instrument Men Women Finger Sizers Professional DIY Jewelry Accessories Tools
- EU/JP/KR/UK/US Useful Standard Jewelry Measuring Tool Rings Size Metal Finger Ring Sizer Measure Gauge
Product Details
Brand Name: | SZRET | Place of Origin: | Guangdong, China | Model Number: | 105T |
Product Description
Specifications
acrylic polishing machinetake water as fuel
Strong and durable, light weight and portable
safe equipment and saving energy
jewelry polishing machine 105T
Consumed fuel:Water,distilled water, purified water, cold boiled water, tap water, and mineral water
1.Main features of 105T Jewelry polishing machine
1.Take water (distilled water and pure water) as fuel, which are obtained easily and are
storedsafely. And after burning, the generation is vapour , not poisonous, it's environmental.
2. Strong and durable, light weight and portable.
3. Workpiece polished by Micro Flame Polisher has smooth edge.
4. Due to its special design of “low working voltage, cut off automatically beyond the setvoltage”, it’s a safe equipment and saving energy.
5. It’s used widely to polish acrylic irregular surface,
2. Application of 105T Jewelry polishing oxy-hydrogen flame generator
1) Jewelry Industry
For welding kinds of chain and string made of platiomnum , gold , silver , copper , stainless steel , ect .
For mending tiny sand holes on jewelry casting ,
For jewelry repairing (reforming , casting , welding) .
2) Organic Glass Industry:
Quick and fine polishing for acryl (organic glass), solving problems that grinding wheel cannot achieve.
3) Electronic Industry:
For welding enameled wire .
For welding LED wafer .
For flame-treating circuit board
4) Medical Industry:
For welding metal fittings and mending sand holes in dentistry .
For no-carbon flame disinfection or glass seal .
5) Laboratory:
Providing convenient , safe and clean oxy-hydrogen flame .
6) Others:
For welding or heat treating small metal parts .
3. Specification of 105T Jewelry polishing oxy-hydrogen flame gene
MODEL 105T
Input voltage AC220V±10% 50HZ/60HZ (optional 110V)
Max water usage when max air output 30g/hr
Air flue 100L/H
Water recharge by hand
Machine size 480* 280 *360 mm
electrolysis device 1set
weight 12KG
4. Operating Proceduresof 105T Jewelry polishing oxy-hydrogen flame generator
1.Dissolving Electrolytic Powder
Add water and electrolytic powder(NaOH or KOH into the container and stir, and then cool off for 10 minutes.The ratio of electrolytic powder and
water is 1:5.
2.Adding electrolytic solution
(1)Unscrew the nut of water inlet
(2)Fix funnel to avoid the leakage of electrolytic solution
(3)Pour the electrolytic solution into electrolysis trough
(4)It could be better to add the solution up to 90%
(5)Screw nut of water inlet
3.Adding filter agent
(1)Turn left and unscrew the filter cup
(2)Add filter agent into the filter cup, less than 1/2
(3)Install the filter cup to its upper cover and screw it.
4.Power-on Test
(1)Connect flame gun to gas outlet using rubber tube. Choose proper nozzle according to the size of raw edges
(2)Turn on the power, if the indicator light works, blower shifts, and at the same time, turn off flame gun and the pressure value increases, all is normal.
(3)Light with direct fire, let the flame point to raw edges directly or tiltedly and keep proper distance, and then scan raw edges evenly.
5.Detail in photos
