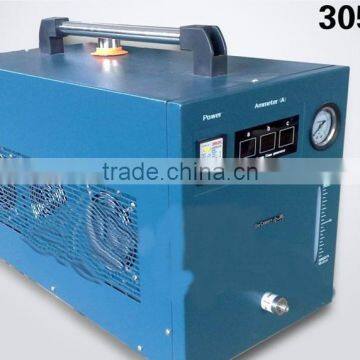

Help CenterHigh Quality 305T Acryl Diamond Edge Polishing Machine
Related Products
-
High Quality 405T Acrylic Edge Polishing MachineUS$ 1,000 - 1,300MOQ: 1 Set -
Jewelry Polishing Energy Saving Equipment Oxyhydrogen GeneratorUS$ 90 - 110MOQ: 1 Set
-
Jewelry Polishing Hydrogen Generating EquipmentUS$ 90 - 110MOQ: 1 Set
-
High Quality 105T Jewelry Polishing MachineUS$ 330 - 350MOQ: 1 Set
-
H60 Flame Gun Acrylic Polishing MachineUS$ 90 - 110MOQ: 1 Set
Specifications
acryl diamond edge polishing machinetake water as fuel
Strong and durable, light weight and portable
safe equipment and sa
Consumed fuel:Water,distilled water, purified water, cold boiled water, tap water, and mineral water
1.Main features of 305T Jewelry polishing machine
1.Take water (distilled water and pure water) as fuel, which are obtained easily and are
storedsafely. And after burning, the generation is vapour , not poisonous, it's environmental.
2. Strong and durable, light weight and portable.
3. Workpiece polished by Micro Flame Polisher has smooth edge.
4. Due to its special design of “low working voltage, cut off automatically beyond the setvoltage”, it’s a safe equipment and saving energy.
5. It’s used widely to polish acrylic irregular surface,
2. Application of 305T Jewelry polishing oxy-hydrogen flame generator
1) Jewelry Industry
For welding kinds of chain and string made of platiomnum , gold , silver , copper , stainless steel , ect .
For mending tiny sand holes on jewelry casting ,
For jewelry repairing (reforming , casting , welding) .
2) Organic Glass Industry:
Quick and fine polishing for acryl (organic glass), solving problems that grinding wheel cannot achieve.
3) Electronic Industry:
For welding enameled wire .
For welding LED wafer .
For flame-treating circuit board
4) Medical Industry:
For welding metal fittings and mending sand holes in dentistry .
For no-carbon flame disinfection or glass seal .
5 Laboratory:
Providing convenient , safe and clean oxy-hydrogen flame .
6) Others:
For welding or heat treating small metal parts .
3. Specification of 305T Jewelry polishing oxy-hydrogen flame gene
Model |
|
305T |
Power |
|
AC220V±10% 50HZ/60HZ (option 110V) |
Dimensions |
|
780 *380 *520 mm |
Weight |
|
40KG |
Gas flow |
|
300L/h |
Water recharge |
|
by hand |
|
Max water usage when max air output |
|
90g/hr |
electrolysis device |
|
3set |
Electrolyzing case |
|
Single case, 3 layers |
Consumed fuel |
Water, from best to ordinary are: distilled water, purified water, cold boiled water, tap water, and , mineral water. |
|
Safety fittings |
Innovation backfireproof fittings, intellectualized pressure switch, safety gas releasing valve and multilevel explode-proof design. |
|
Work environment |
0-50 degree centigrade well ventilated. Better 50cm above the ground. |
|
4. Operating Proceduresof 305T Jewelry polishing oxy-hydrogen flame generator
1.Dissolving Electrolytic Powder
2.Adding electrolytic solution
3.Adding filter agent
4.Power-on Test

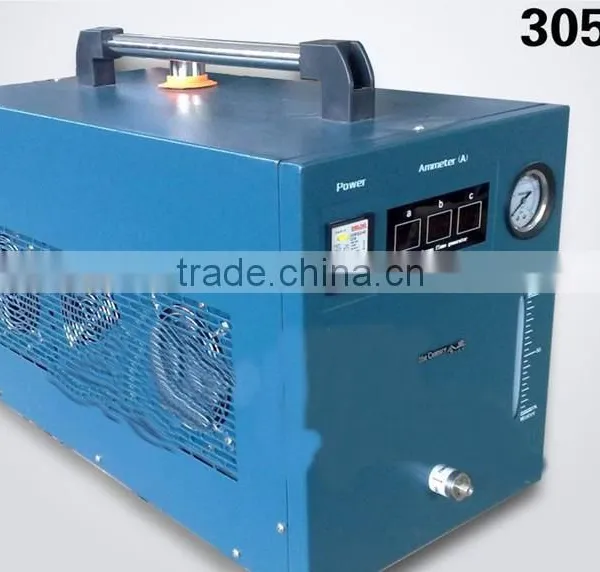

5.Detail in photos
