water Hydrogen flame machine welding machine

application

The force that press a gram polishing handicraft products

Organic flame polishing glass

Gold and silver jewelry welding

Motor enameled wire welding

Denture welding and mold repair

The frame welding

Optical fiber welding

Small flame spraying

Quartz tube sealing

A medium school water electrolysis produce hydrogen gas test demonstration

Air conditioning brazing welding

Lead battery plate group of welding

Hyperbaric oxygen can cut all kinds of thickness of steel plate

Quartz glass rod die casting molding

Pharmaceutical factory ShuiZhenJi sealed ampoule bottle drawing

quench

3

Water hydrogen flame machine instructions

The editor

1, in soluble device into distilled water is about 1.0 KG, 0.2 KG of electrolytic powder preparation (sodium hydroxide), slowly pour into dissolved (water and electrolytic powder ratio 5:1) slightly stirring, dissolving heat production, natural cooling 20 minutes or so.

2, unscrew solution nut, slow filling below the "high" level, tighten the nut.

3, loosen and alcohol cans, slowly add alcohol to 1/2 (instant half), tighten the alcohol cans.

4, connect the power switch on, the power indicator lights, fan, air outlet QiGan, gauge instructions, which suggests that all is well.

5, connect hose and fire a gun, connected to the outlet, unscrewed the spray gun valve, and flame lit.

6. Shutdown operation: direct close flame gun, then shut off the power switch, then open valve flame gun, after more than a small amount of gas drainage of machine and then close the valve.

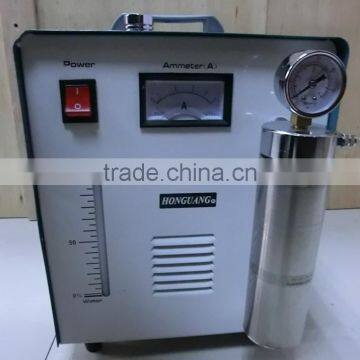

Hydrogen flame machine of water

Water hydrogen flame machine using water as the raw material of oxyhydrogen flame machine. It USES water in direct current (dc) for electrochemical reaction, generate hydrogen and oxygen gas generating equipment. The equipment to produce hydrogen as fuel, oxygen as auxiliary combustion, the output of gas safety valve, flame arrester, oxyhydrogen flame gun ignition formation of oxyhydrogen flame, can be of various metal welding.

Water hydrogen flame machine mainly by the cell and electrolytic power supply, safety valve and flame arrester, the flame of regulating tank, oxyhydrogen flame gun

.
