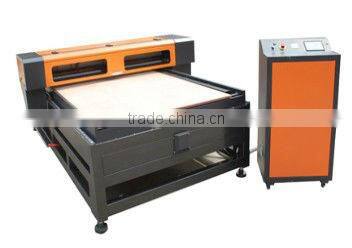

Laser Die-board Cutting Machine 1325 GSI200W
- shanghai qingdao guangzhou shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Laser Type | CO2 | Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | |
| Cutting Thickness | 0-30mm | Cutting Area | 1300*2500mm | |
| Cutting Speed | 0-500mm/s | CNC or Not | Yes | |
| Cooling Mode | Water Cooling | Control Software | coredraw, cade, laser work | |
| Graphic Format Supported | AI, PLT, DXF, BMP, DST, DWG, LAS, DXP | Brand Name | SZRET | |
| Model Number | 1325 200W | Certification | CE, Other, CE, fda |
Product Description
Specifications
GSI 200W CO2 LASER TUBEservo motor bearing and ballscrews
stable worktable
high power air compressor and air blower chiller
Laser die-board cutting machine 1325 gsi
1The compact design of Mechanical structure, and the lathe bed have been tempering heat treated which is not easy to be deformed.
2 The machine is equipped with imported ball screws and guide rail, panasonic servo motor, advanced control system, which can guarantee the high-speed and high-precision.
3 Adopt core optical components of reliable international brands: GSI optical maser from UK optical lens made in USA .
4 The single-head cutting and flight optical path make the adjustment of optical path more sample and reliable.
5 The thinkness of 15MM,18MM, 20MM die-board can be cut arbitrary width, such as 0.45, 0.71, 1.05, 1.42 etc. Kerf uniform, consistent from top to bottom seam. Once turned on , the machine can work without waiting time.
6 Low cost and no gas consumption, only consume 7.5KW/H power.
Specification
Model: | 1325 GSI |
Working area: | 1260 * 2460mm |
Whole machine size: | 3350 * 2220 * 1110mm |
Laser-type: | Sealed CO2 laser tube |
Laser power: | GSI 200W |
Cooling mode: | Water-cooling and protection system |
Cutting Speed | 200mm-300mm |
Resetting position accuracy | ±0.05mm |
Graphic format supported: | HPGL,PLT,AI,DXF |
Controlling software: | DSP control system |
Compatible software: | CoreDraw,AutoCAD,Photoshop |
Driving system | Panasonic Servo |
Working voltage | AC 220 ± 10%,50-60Hz |
Operating temperature | 0-45°C |
Operating humidity | 5-95°C |
