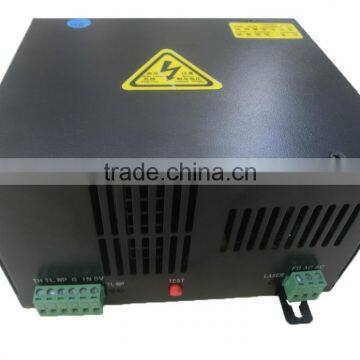

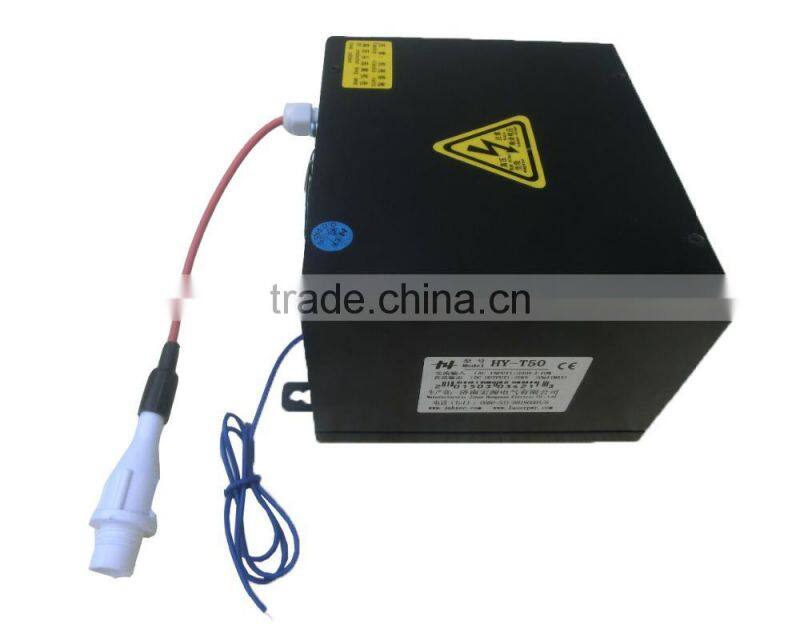

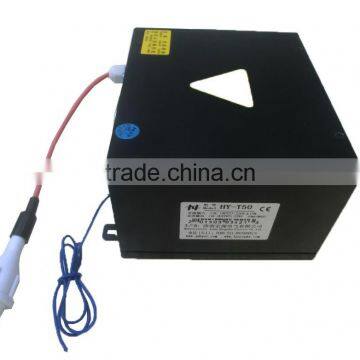

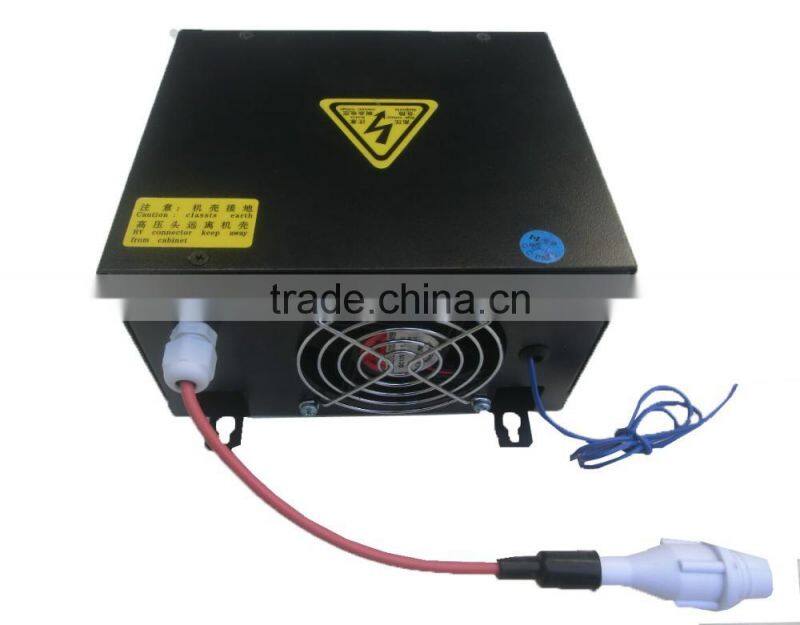

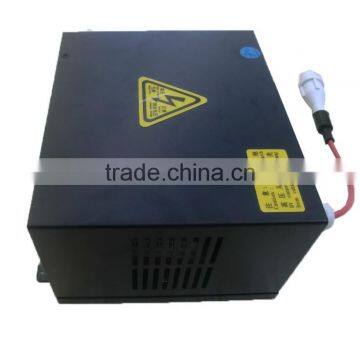

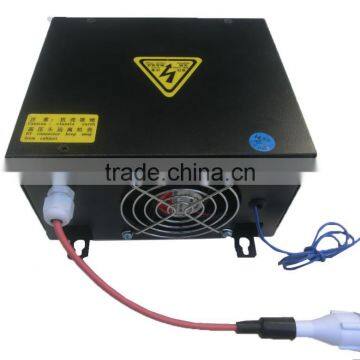

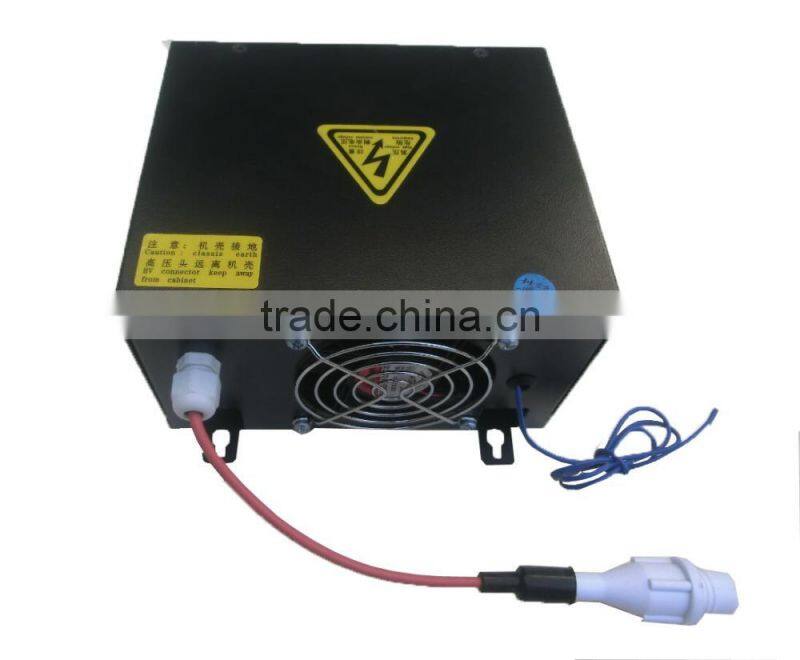

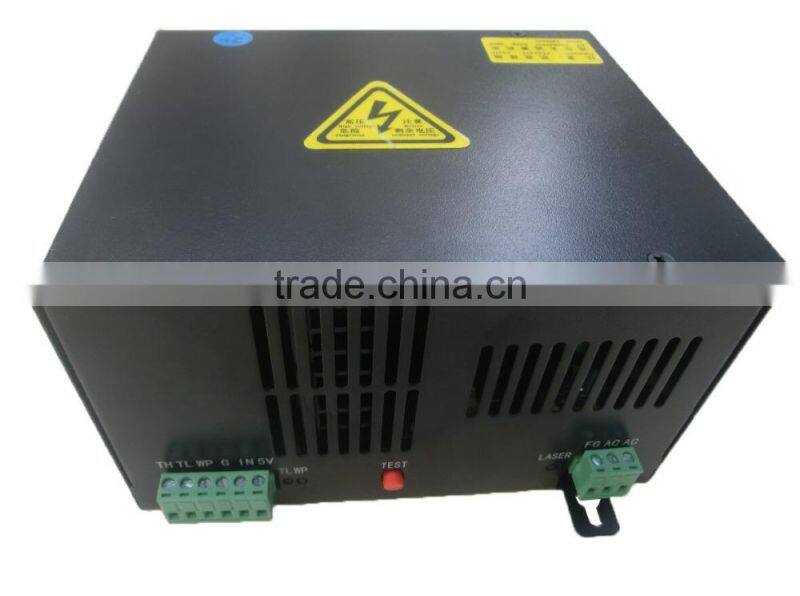

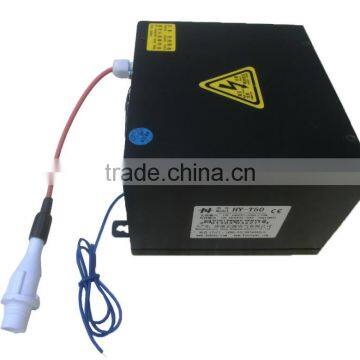

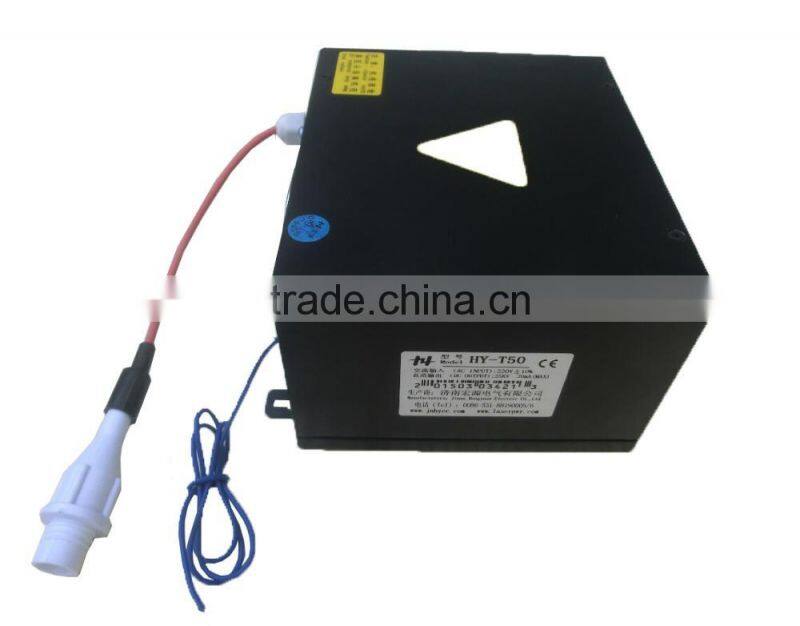

Black 40-50w Co2 Laser Power Supply for Mini 4030 Machine

Name: Black 40-50w Co2 Laser Power Supply for Mini 4030 Machine
Brand: szret
SKU: 143300942
Availability: InStock

US$ 2 - 90 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

szret

Model Number:

40w laser stamp power supply

Shenzhen Reliable Electromechanical Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name szret

Model Number 40w laser stamp power supply

40w

40w power supply

input voltage AC220V OR AC110V

AC frequency 47-440Hz

max output voltage DC25kv

max output current DC20mA

power sourcing equipment

Input Voltage	Input Voltage	AC220V or AC110V
	AC Frequency	47-440Hz
	Cold surge current	≤60A(AC220V input)	≤30A(AC110V input)
	Leak current	≤0.7mA(AC220 input)	≤0.4mA(AC220V input
Output	Max output Voltage	DC 25KV
	Max Output current	DC 20mA
Efficiency	when≤92%load down
Time no-failure	≤10000hours
Response speed	≤1ms(the time from output of switch signal to 90%of initial setting current)
Control port	TLL electricity level switch control, valid electricity has high/low level choices
Vollage-resisting	Input-Output ,input-machine hull: 1500V 10mA 60s AC output cathode and machine hull connection
Protection	Can be used an opening way in a short time(request the outer shell be good to connect the ground avoid arcing between anode and machine hull connection in the machine)
Usage environment	Work temperature:(-10-40)°C.Relative humidity:≤90%
Cooling Type	The compuisive air cooling
size	L×W×H=210×160×95(mm)
Weight	3kg
