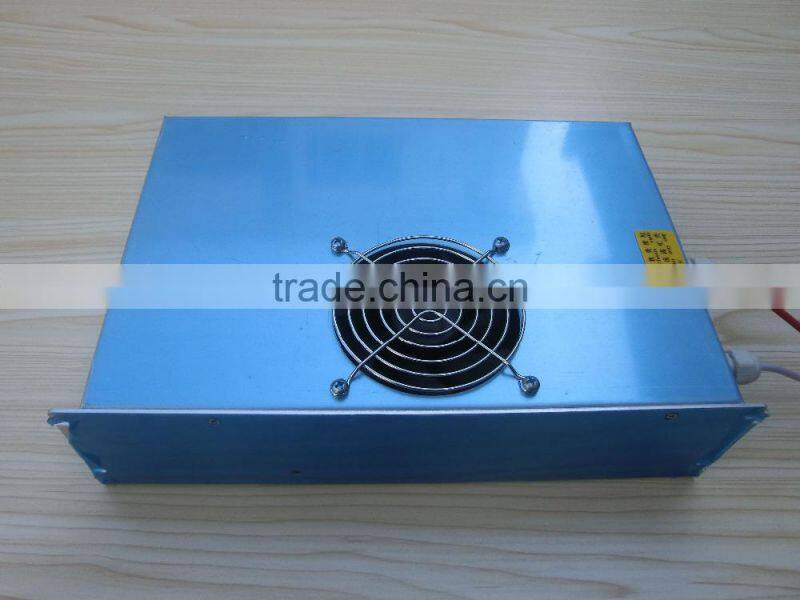

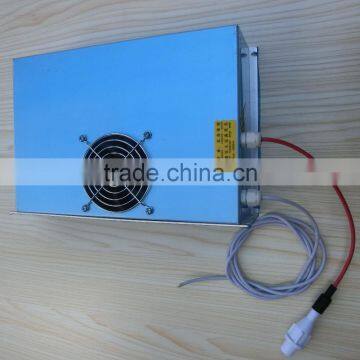

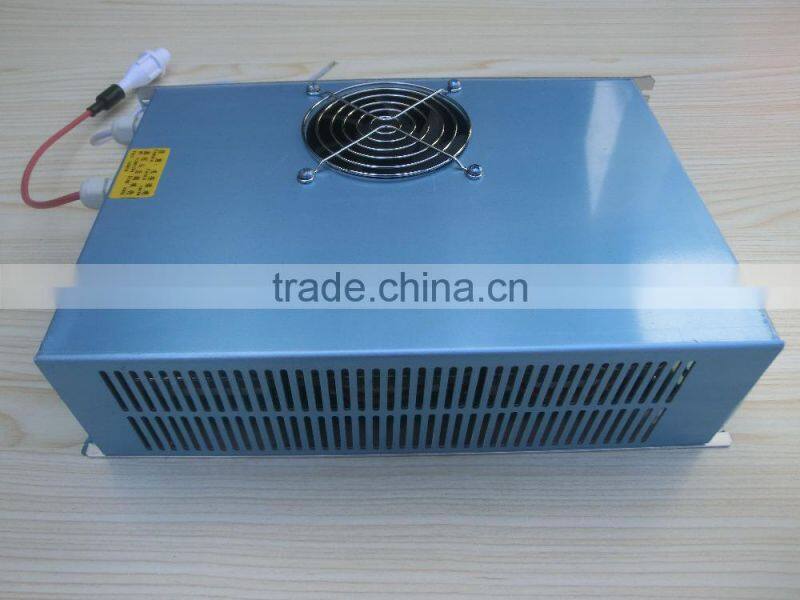

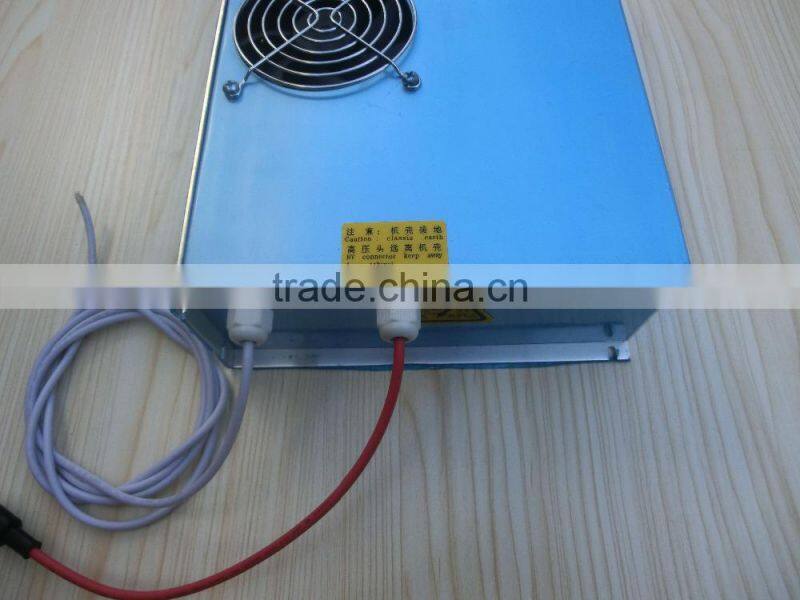

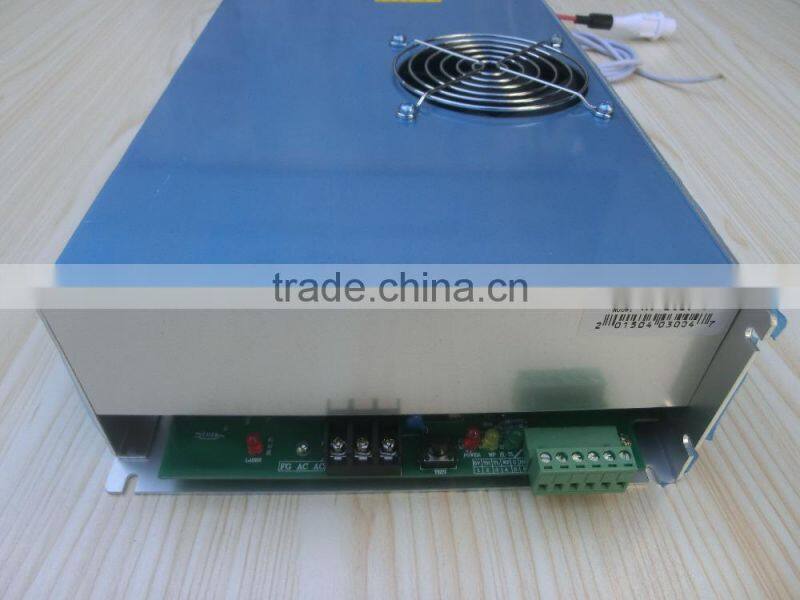

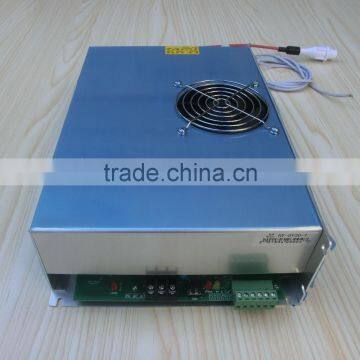

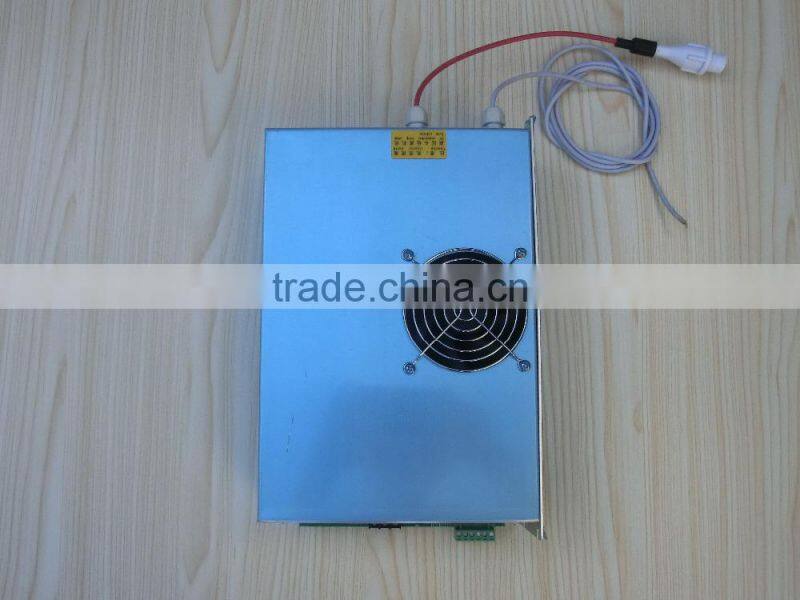

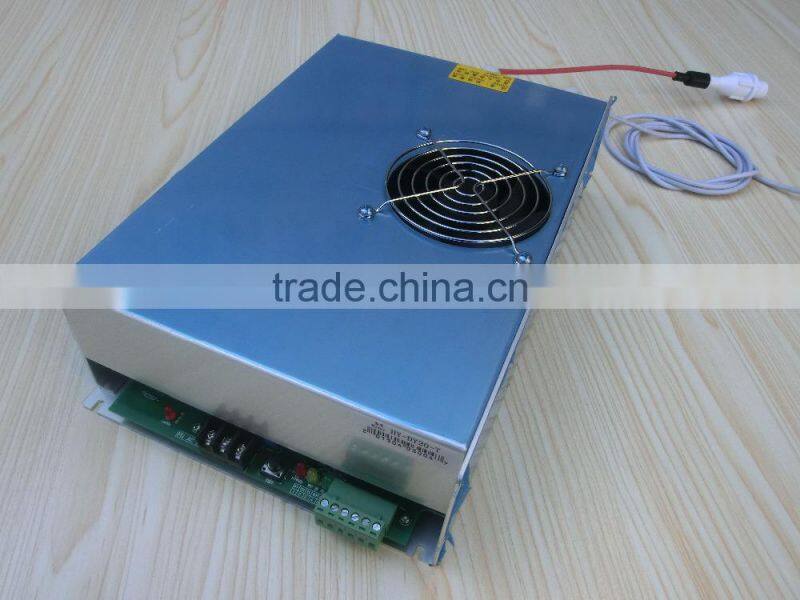

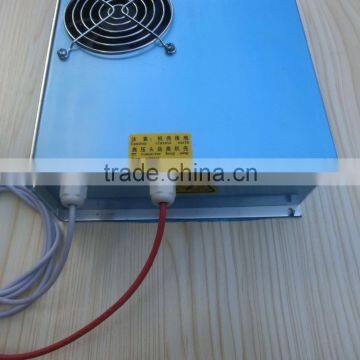

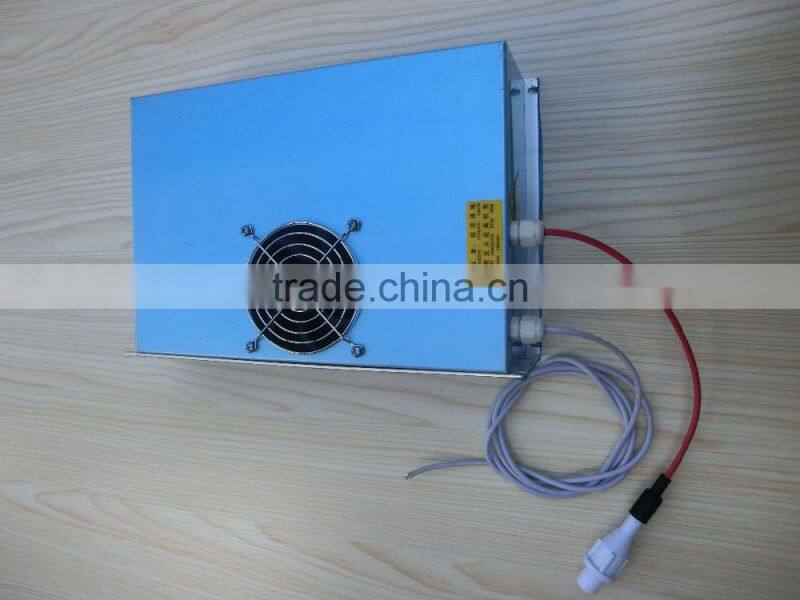

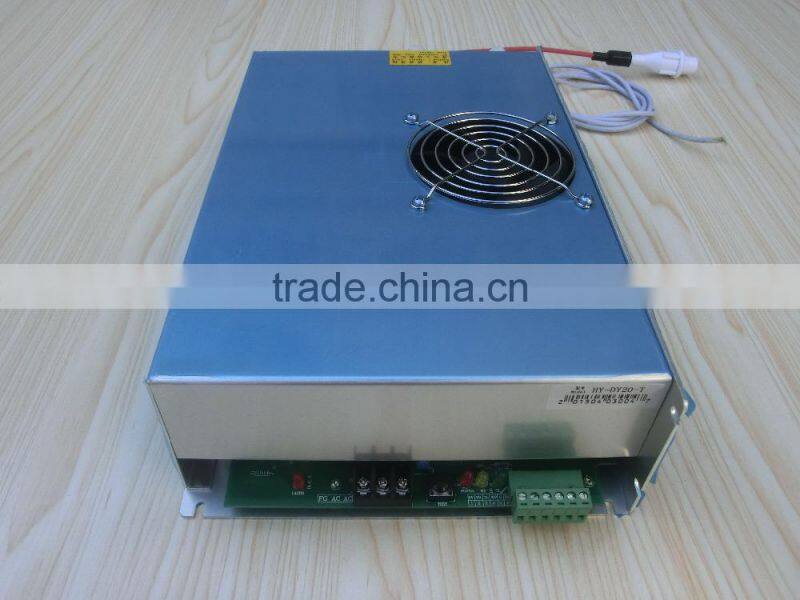

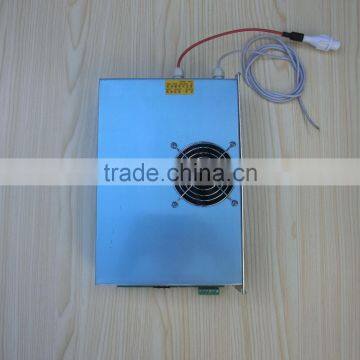

HY-DY20 laser power supply for RECI S6/S8 CO2 laser tube 130W-180W, EFR laser tube

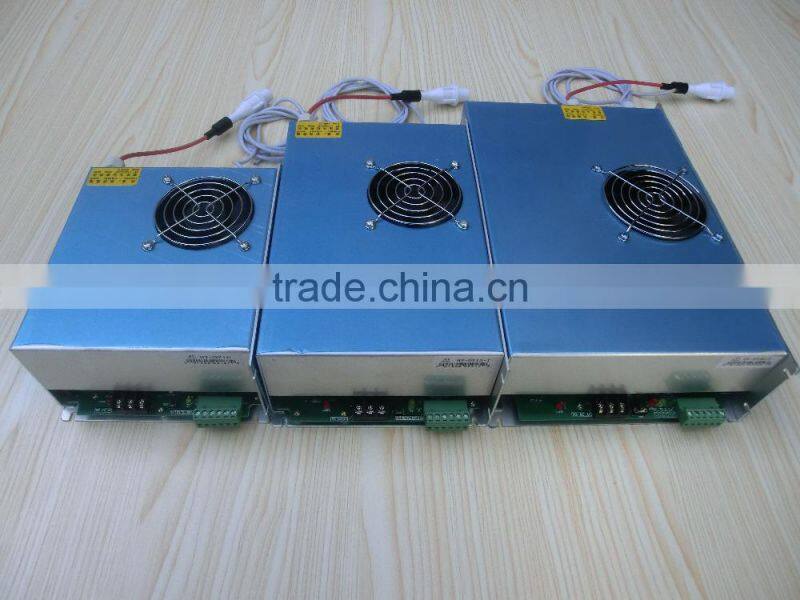

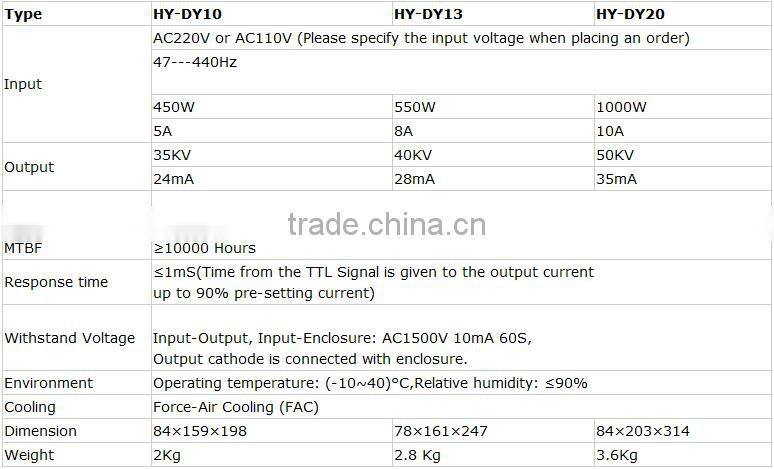

HY-DY10, HY-DY13 and HY-DY20 are specially designed for RECI S series laser tubes, including S2, S4, S6 and S8. These series of power supplies can work wellwith high-power laser tubes. They prolong the service life of laser tubes and increase the output power. HY-DY10, HY-DY13 and HY-DY20 can also work well with EFR laser tube.
Cutting model and engrving model selectable: for cutting machine, it has good power stability and adaptability; for engraving machine, it has quick response and ideal engraving effect. Significantly prolong the service life of laser tubes.
Easy control, high or low level control available: With TTL level, it can control the start and stop of laser. There is protection switch for checking the water supply and ventilation.
Easy to control laser power: Laser pwer can be controlled by both 0~5V analog signals and PWM signals.
The power supply has its own open circuit protection: When the power supply is properly grounded, it can work shortly in open circuit conditions, so that the the laser power supply is not damaged by the breaking laser tubes and the lifespan of the power supply is prolonged.
The power supply may contain feed back interface, which can be used in closed closed-loop control and for testing the actual operating current.
Newly-added fuction: fast field determing wheter the laser tube or power supply is damaged.
Application area: engraving and cutting acrylic; engraving and cutting cloth; engraving and cutting ABS; engraving and cutting rubber, and so on.

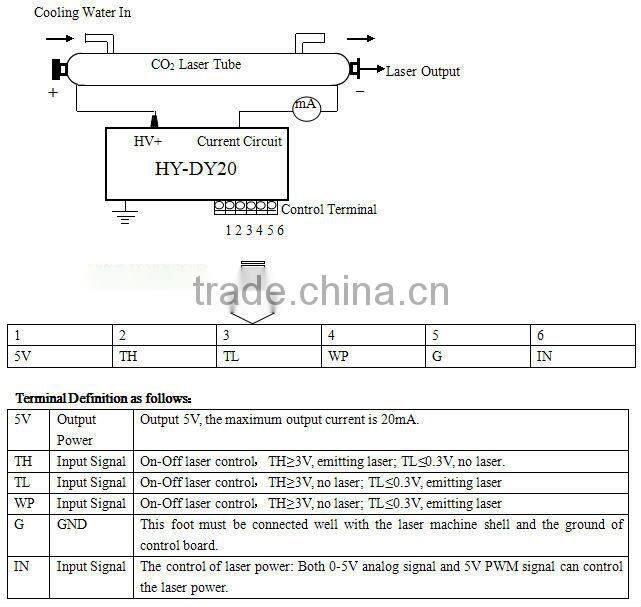

DY20 and Reci S6/S8 Laser Tube Connection diagram
The power supply comes with a full year warranty since the formal acceptance date.
Shenzhen Reliable Electromechanical Technology Company is a professional laser equipment supplier, committed to the R&D, production and sales of laser marking machine, laser cutting machines and laser engraving machines, as well as laser equipment parts.
