Specifications
1.USA import matreial2.structer:plano-convex,Meniscus
3.ZnSe material
4.High quality
5.high quality

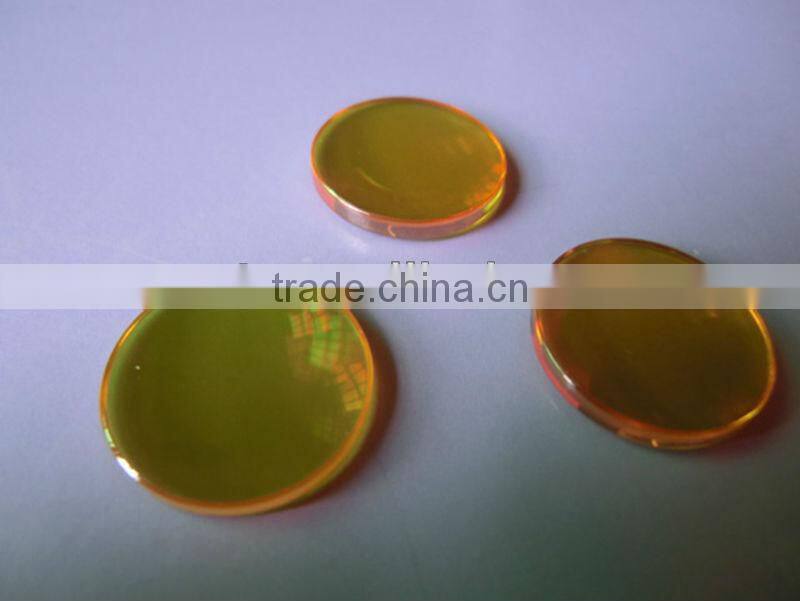

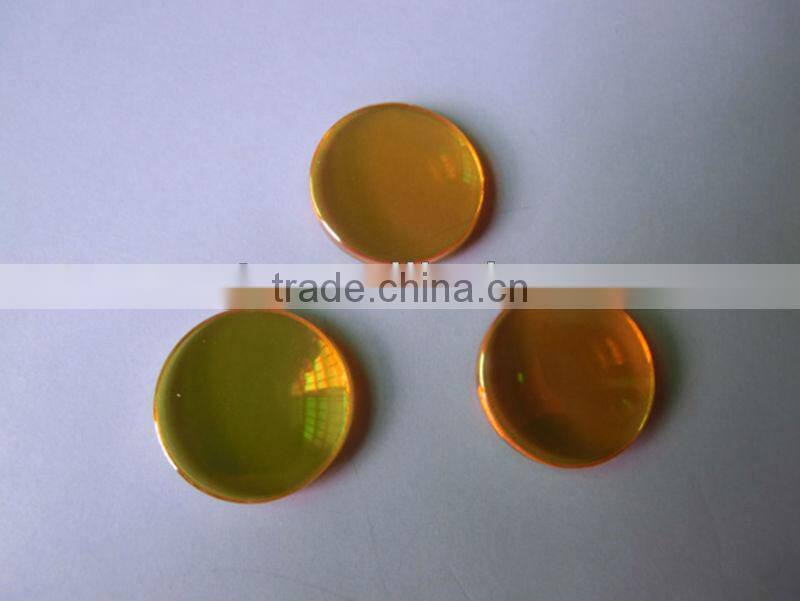

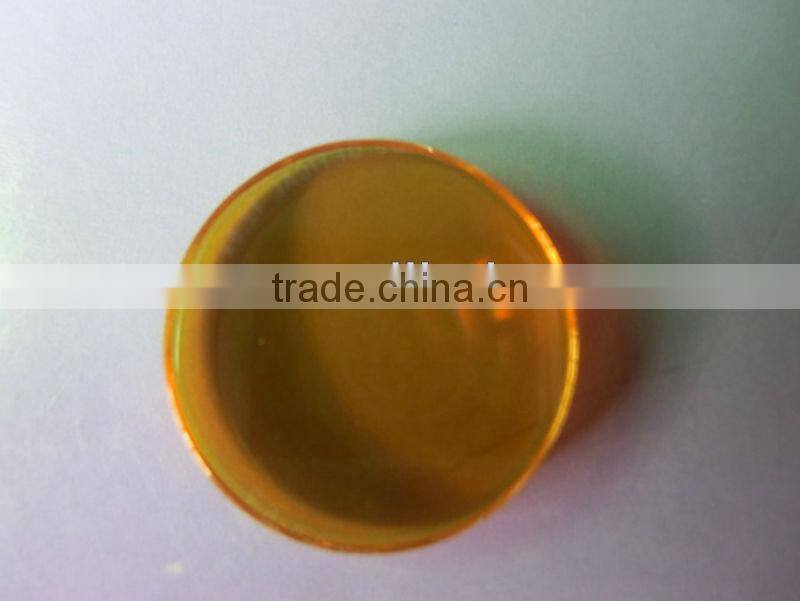

18mm/19.05mm/20mm USA ZnSe laser focus lens
for laser engraving & cutting machine
znse laser focus lens usa imported:
difference diameter lens:12mm/15mm/18mm/19.05mm/20mm
1.focus lens diameter:12mm
focus length: 2inches ET: 1.6mm
2.focus lens diameter:15mm
focus length:2inches ET: 1.8mm
3. focus lens diameter:18mm
focus length:1.5,2,2.5,3,4inches ET: 2mm
4.focus lens diameter:19.05mm
focus length:1.5,2,2.5,3,4,5,7.5inches ET: 2mm
5.focus lens diameter:20mm
focus length:1.5,2,2.5,3,4,5,7.5inches ET: 2mm
6.focus lens diameter:25.4mm
focus length:1.5,2,2.5inches ET: 2.5mm
(This type is 100USD)
Co2 laser Focus lens | |||||||
diameter | Focus length | Edge thickness | structure | Material | |||
mm | inch | mm | Inch | mm | inch | ||
12 | 0.47 | 50.8 | 2 | 2 | 0.08 | plano-convex,Meniscus | Znse |
15mm / 18mm 19.1mm/20mm | 0.59mm/0.71mm 0.75mm/0.79mm | 38.1 | 1.5 | 2 | 0.08 | plano-convex,Meniscus | Znse |
50.8 | 2 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
63.5 | 2.5 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
75 | 3 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
101.6 | 4 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
127 | 5 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
190.5 | 7.5 | 2 | 0.08 | plano-convex,Meniscus | Znse | ||
Laser engraving & cutting machine spare parts
1.laser tube difference power as:~,60W,70W,80W,100W,110W,130W.etc.
2.RECI laser tube :RECI W2.W4,W6,W8.
3.Water cooling systerm: air pump and water chiller. (CW 3000 water chiller,CW5000 water chiller etc)
4.laser mirror and focus lens : made in China and imported from UAS.
5.Laser common and RECI power supply:DY10,DY13,DY20.
6.Laser control system such as:MPC6535,6565,AWC608
7.mechanical parts and optical parts.
8.Any kind of laser engraving and cutting parts that you need.
