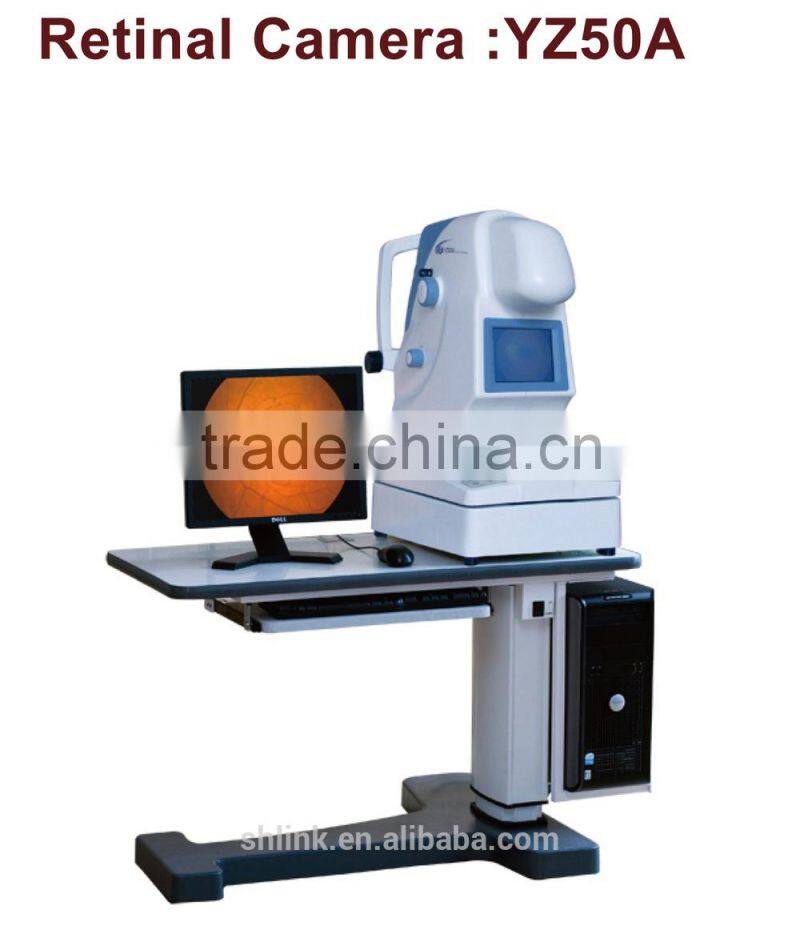

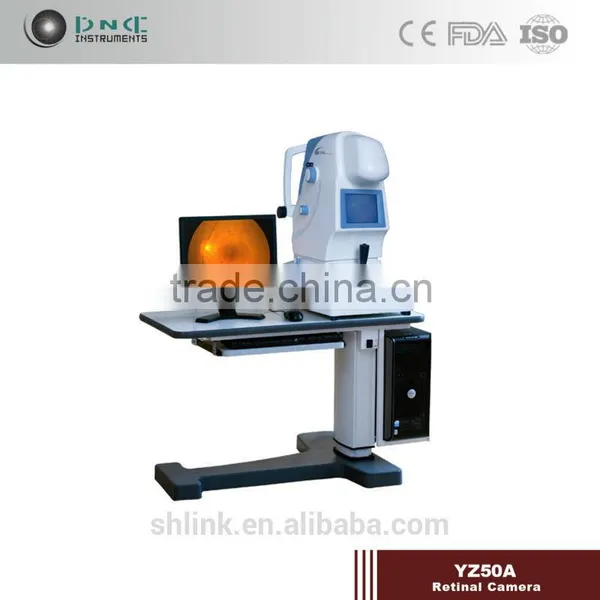

Hot Sale Ophthalmic YZ50A Retinal Camera

Name: Hot Sale Ophthalmic YZ50A Retinal Camera
Brand: LINK ophthalmic YZ50A Retinal Camera
SKU: 130477619
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

LINK ophthalmic YZ50A Retinal Camera

Model Number:

ophthalmic YZ50A Retinal Camera

Shanghai Link Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name LINK ophthalmic YZ50A Retinal Camera

Model Number ophthalmic YZ50A Retinal Camera

Product Description

Product Description

Pictures

Features

·Split line provides the function of accurate focusing and makes the focusing more accurate and convenient;

·The use of pupil alignment spots eliminates stray light effectively;

·Targeting and focusing of infrared light improves greatly the feeling of patient comfort;

·Flash strength of eight adjustable forwards ensures suitable exposure;

·Functions of using periphery internal fixation standard, object images stitching and field-of-view can expanded to 77º

·Design of no eyepiece and colorful screen can target and focus conveniently and directly.

·With the function of right/left eye auto detection.

Specification :

Images	Fundus color/red-free photography
View field	45º
Working Distance	41mm
Dioptric Compensation for Patient’s Eyes	-34D~+35D total -15D~+13D with no dioptric lens -34D~-14D with minus dioptric lens +12D~+35D with plus dioptric lens
Min Pupil Diameter	Φ3.7mm
Internal Fixation Target	3 in center, 6 in the periphery with 60 º detent interval
Backward and Forward Movement	45mm
Left and Right Movement	80mm
Up and Down Movement	30mm
Chinrest Movement	65mm
Input Voltage	AC220±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz
Input Power	300VA
Fuse	AC250V T3A
Light	12V/30W, Halogen
Electrical Safety Standard	GB9706.1-1995,ClassI Type B
Voltage Transformer Thermal Circuit Breaker	130°C
