Specifications
silicon co2 laser reflect mirror 25mm with laser mirror mountcutting and engraving
mirror diameter:25mm

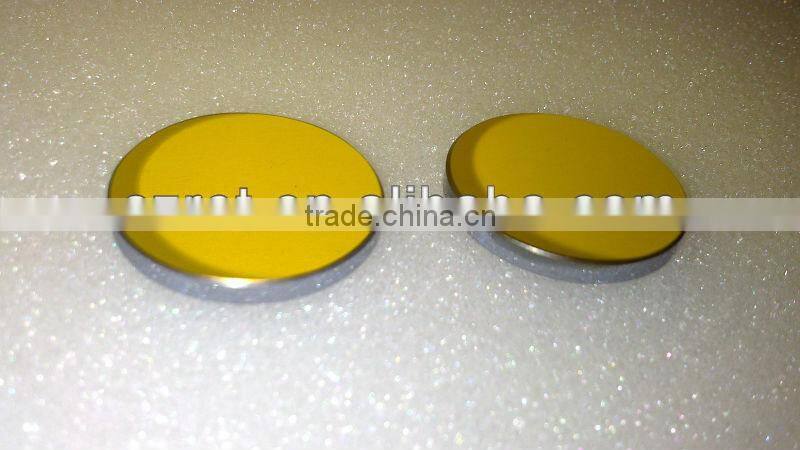

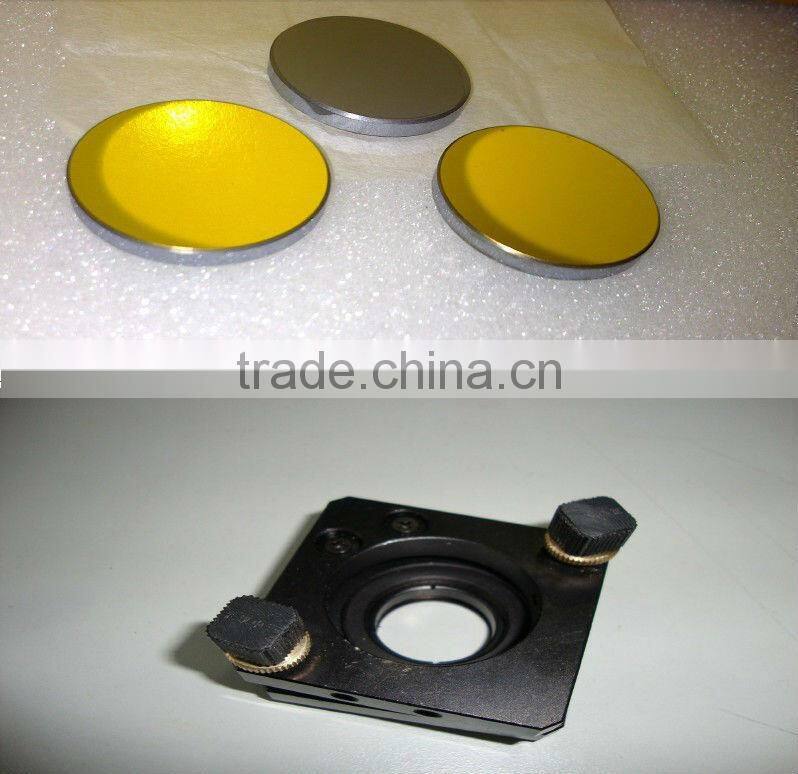

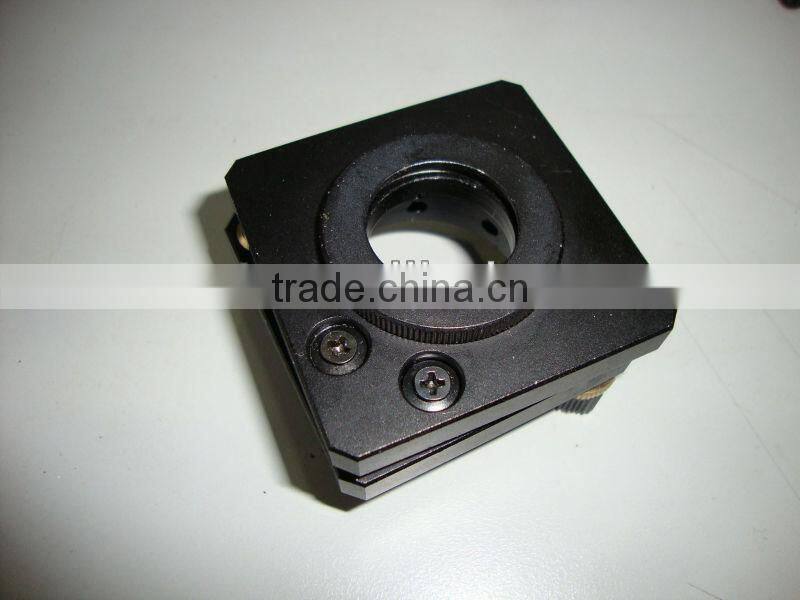

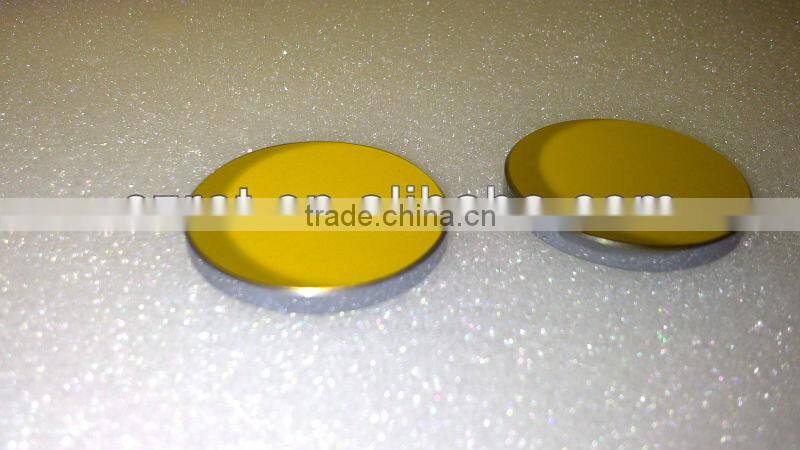

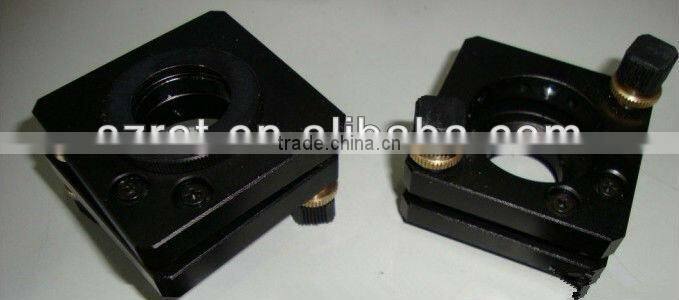

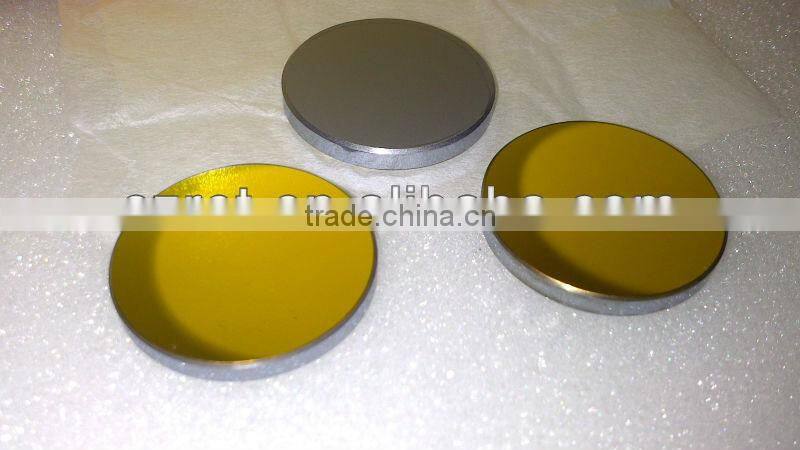

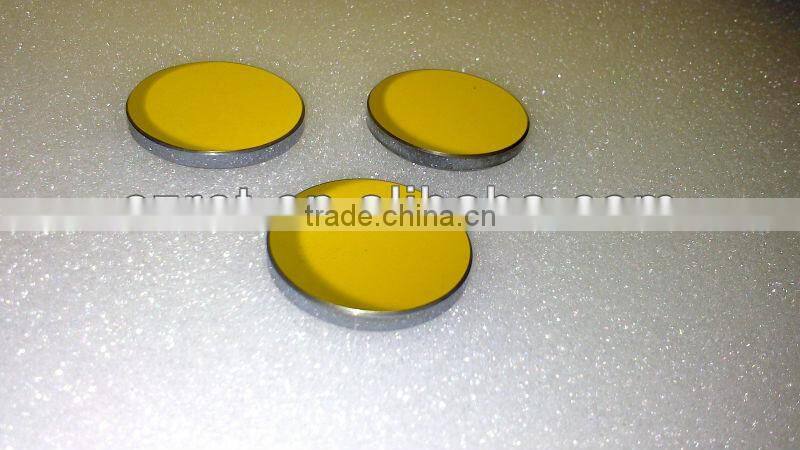

silicon co2 laser reflect mirror 25mm with laser mirror mount
Laser reflectivity mirror is a important components in laser light transmission systerm.InCO2 laser light path,there can be two ways.The application of laser tube in the mirror can be used as the mirror,the lens basement contains certain curvature,plays the role of laser shock;In some laser design,laser reflectionin laser tube can change the light,rise to reduce the role of laser tube length;In the laser tube,mirror and focus length coorperate,constitute acompletely light way,make the design of laser machines more save space and,if possible,to reduce the loss of laser,the greatest degree of laser power keep working.
Laser reflect mirror
Material:Silicon
Optional DiametersSide reflectivity>99.5%
Laser cutting,engraving machine etc.
Silicon is usually used as the material of mirror, it cost lower and durable. Moreover, it has steady thermal properties. With gold-plated and protection film on the gold, the surface is not easy to get damaged, overtheless, it enhance the reflectivity and make the mirror durable. Also the gold-plated silicon mirror is able to tolerate high-power irradiancy.
Co2 laser Reflect mirror | ||||
Diameter | Thickness | Material | ||
mm | inch | mm | ich |
|
20 | 0.79 | 3 | 0.12 | Silicon |
25 | 0.98 | 3 | 0.12 | Silicon |
30 | 1.18 | 3 | 0.12 | Silicon |
20 | 0.79 | 3 | 0.12 | molybdenum |
25 | 0.98 | 3 | 0.12 | molybdenum |
30 | 1.18 | 3 | 0.12 | molybdenum |
Laser engraving & cutting machine spare parts
1 CO2 Glass laser tube: different power such as 40W,60W,80W,100W,130W,150W etc.
2 laser reci tube W2,W4,W6.
3 Water cooling systerm: water pump and water chiller. (CW 3000 water chiller,CW5000 water chiller etc).
4 Laser mirror and focus lens : made in China and imported from USA.
5 Rotary : working for circular materials, such as , etc.
6 Air compressor
7 Laser power supply and reci power DY10,DY13,DY20.
8 Machine control card : RD control card and MPC 6515 (6535) control card.
9 Any kind of laser engraving and cutting spare parts that you need.
