80w co2 laser power supply yueming laser
- 500 Piece / Pieces per Month
- Qingdao Shenzhen Shanghai Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Mini Laser Module with APC 4x8mm
- Laser Module, 15x60mm Size 405nm-850nm 8um-110um Microbeam Laser Diode Module for Laser Positioning & Pointing
- Mini laser module for laser alignment tools
- 1-5mw 520nm Low Consumption Mini Laser Diode Module 4x8mm
- 1-5mw Mini Infrared Laser Module for Measure Tools and Medical Treatment Instrument
- Mini laser module for bar code scan instrument
Product Details
Place of Origin: | Guangdong, China | Brand Name: | szret | Model Number: | 80w |
Product Description

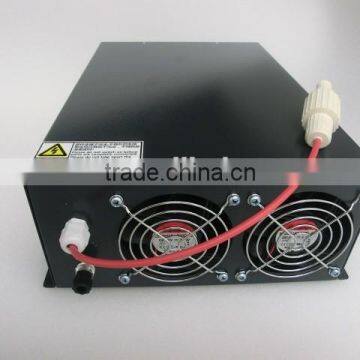

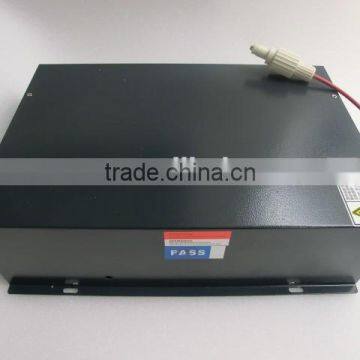

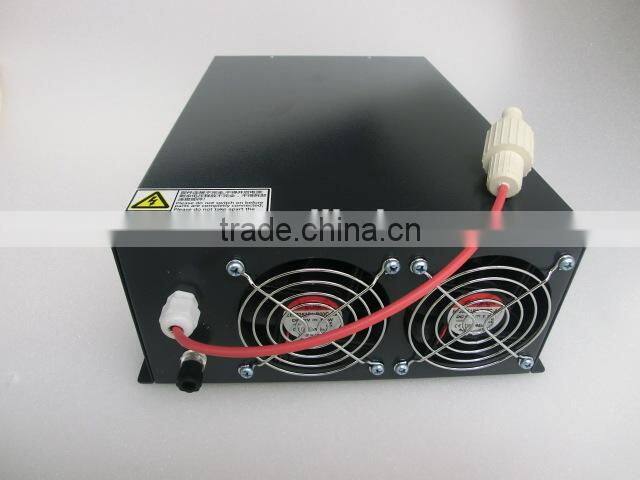

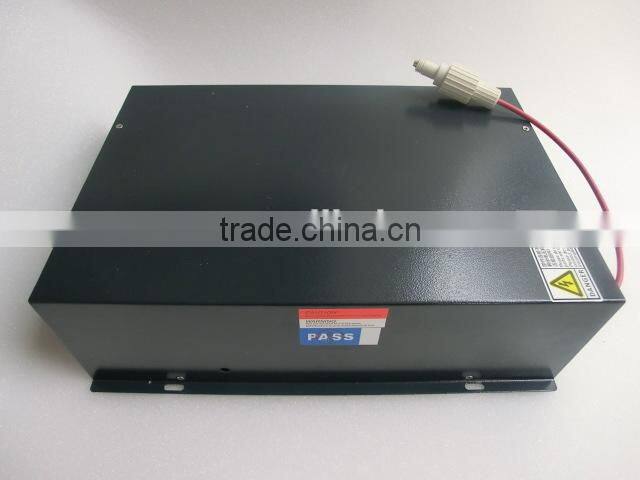

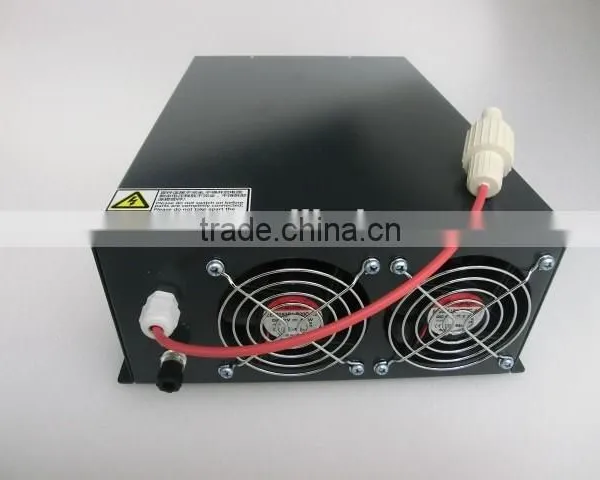

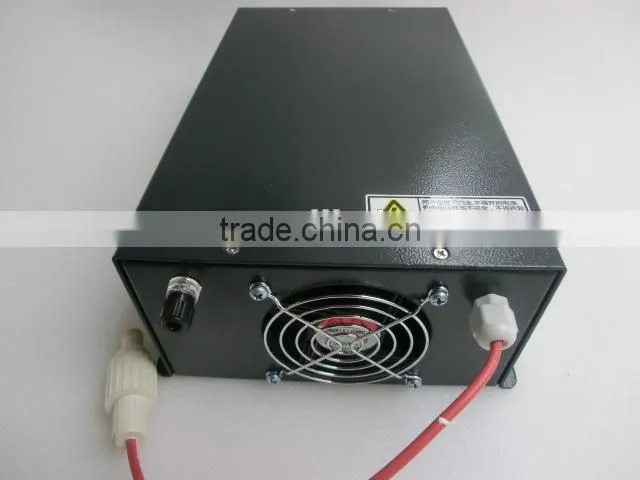

80w power supply co2 laser yueming
CE ISO certificate
used for 60w 80w yueming laser machine
Main Features:

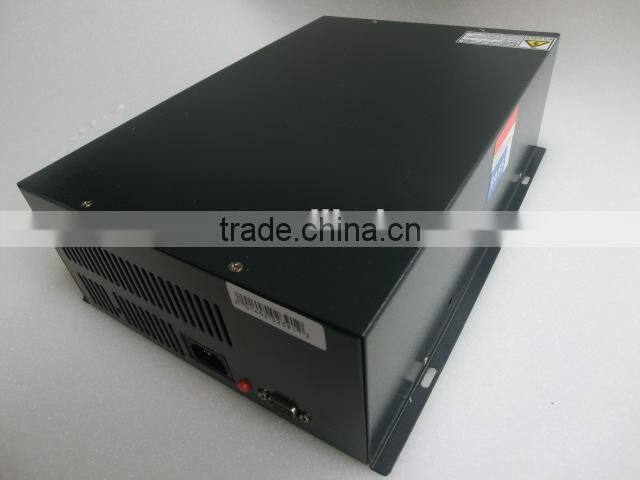

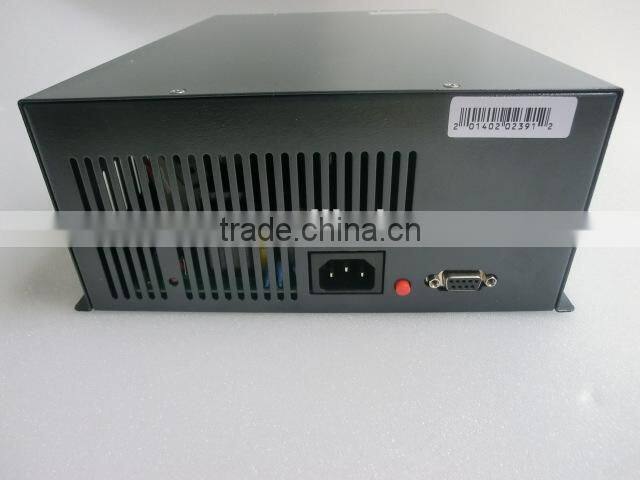

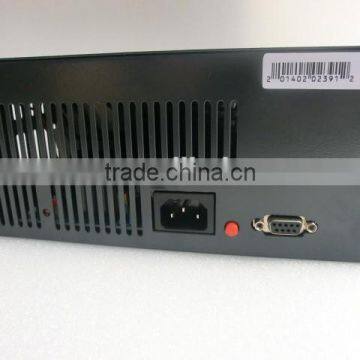

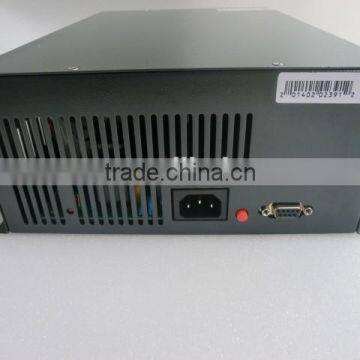

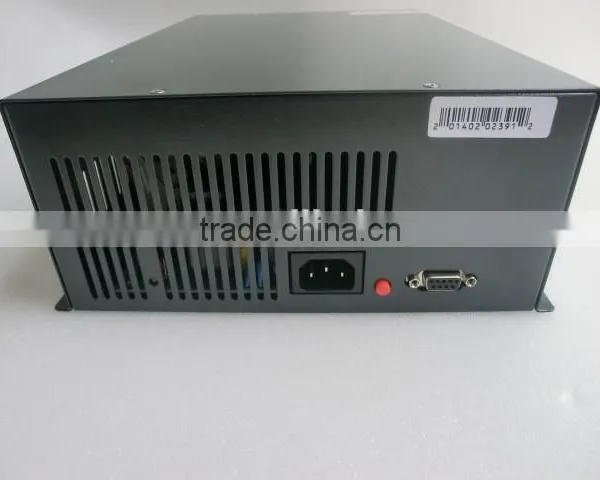

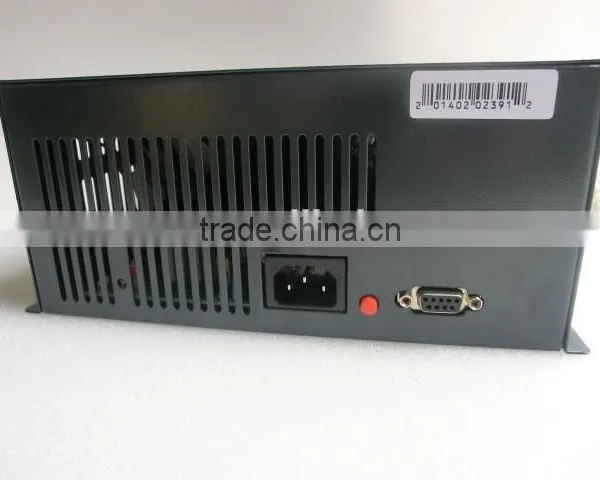

1. 80w yueming laser power supply with DB9 pin, it is controlled by 0 ~ 3.3v analog signals or PWM control signal,
Special designed for 60W,80W CMA laser cutting machine manufactured by Yueming factories.
2. High Voltage Power Supply: Input AC 220V or AC 110V Voltage ,Max output DC 40KV.
3. You can choose Cutting Type or Sculpring Type; the Cutting Type has a good power stability and strong adaptability; the Sculpring Type has a quick response speed and good engraving effect.
4. This Power Supply has the” TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability, this can prolong laser tube's service life.
Advantages:
1. Easy Control: The start and stop of laser can be easily controlled by TTL level. either 0 ~ 3.3v analog signals or PWM control signal can control the laser power.
2. The Laser Power Supply has output open circuit protection.
3. This Laser power supply has TTL signal indication, water through signal indication and laser output indication.
4. The power has feedback interface, can be used for closed-loop control, also can be used for testing the laser tube working current.
Specification:
Input | Input Voltage | AC220V or AC110V(to be specified when placing order) |
AC frequency | 47—440HZ | |
Max Input Power | 550W | |
Max Input Current | 5A | |
Output | Max Output Voltage | ≥DC40KV (AC220V input, output no-load) |
Max Output Current | ≥DC 25mA | |
Efficiency | ≥90 PERCENT(full load) | |
Mean Time Between Failure (MTBF) | ≥10000H | |
Response Speed | ≤1ms(90% time from the TTL Signal is given to the output current up to pre-setting current)) | |
Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | |
Environment | Operating Temperature:(-10~40 ℃,Relative Humidity (RH)≤90 percent | |

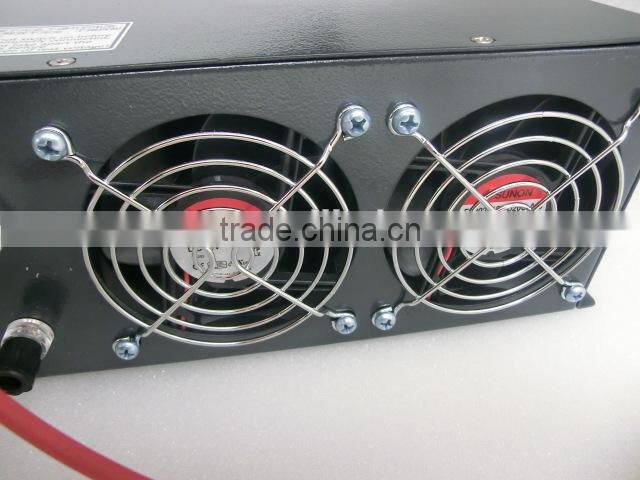

Cooling Way | Force-Air Cooling (FAC) | |
Dimension | L×W×H=280×173×97 (mm) | |
Color | Black |
