Handhold laser power meter for CO2 laser tube 0-200W
Handhold CO2 Laser Power Meter (Model: HLP-200)
I Technical Parameters:
Measurement Range: 0~200W
Minimum Resolution: 0.1W
Wavelength Calibration: 10.6μm
Spectral Range: 9~11um
Uncertainty: <±5%
Battery: 3V/3.6V 2032 button cell
Features: 1. small size, portable; 2. inside power, easy to use; 3. Visual readings and precise measurement.
II Usage:

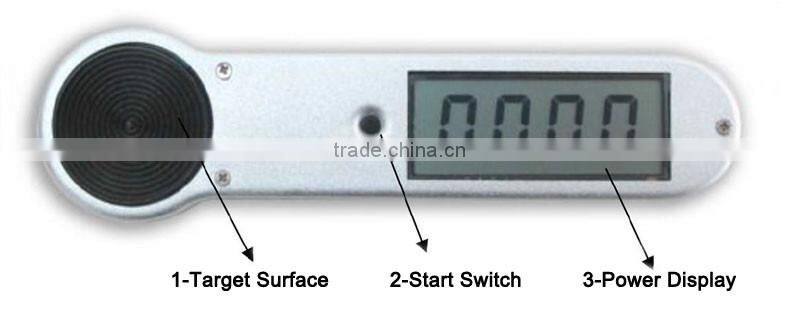

Press START button, instantly move the target surface into the area to be measured, and wait for measurement.
When you hear the first sound of beep, it starts measuring and please keep the target surface steadily.
When you hear the second sound of beep, the measurement is completed. Please remove the target surface from the area. Do not keep it there for a long time.
When you hear the third sound of beep, the system powers off automatically.
NOTE: If the beep is very long and it shows 888.8, the sensor is faulty. Please contact us, and do not disassembly it without permission. If the beep is very long and it shows 000.0 when it is used continuously, it means that the temperature is too high or the power is beyond the measurement range. Please wait until it cools down.
III Precautions:
1. Handle it gently to avoid damaging this precise instrument.
2. Try to target the laser beam at the center of the target surface.
3. In case of multiple uses, please wait until it cools down to room temperature before next measurement.
IV After-sales Service:
This product comes with 1 year of warranty and lifetime maintenance.
Exclusion clauses of free warranty:
1. Exceed the warranty period.
2. Damaged by forcemajeure or man-made factor.
3. Failure and damage caused by user’s disassembly and modification.
