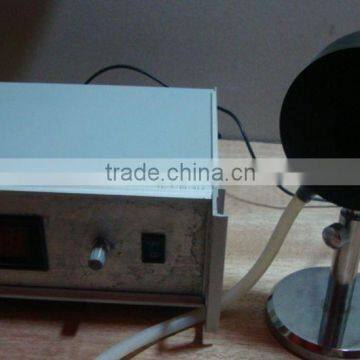

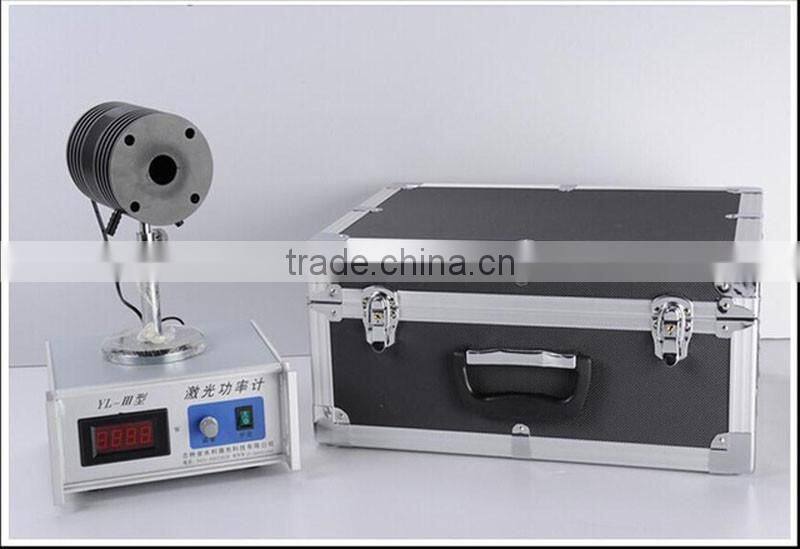

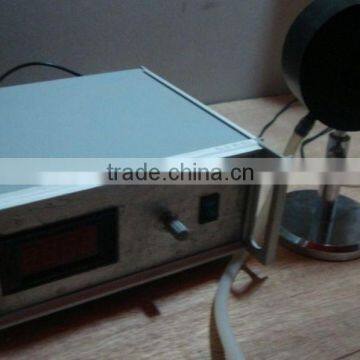

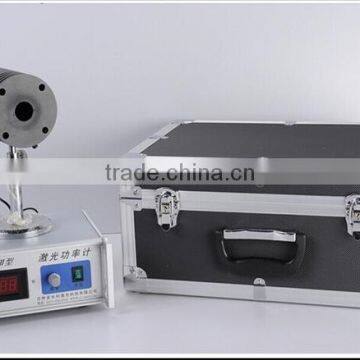

High-accuracy desktop water-cooled laser power meter 0-500W for CO2 laser tube

High-accuracy desktop water-cooled laser power meter 0-500W for CO2 laser tube

I Overview:

This CO2 laser power meter is based on the principle of calorimeter absorption measurement. The thermistor probe can detect a wide range of spectrum and power. The space distribution is even, not affected by the beam spot size, position and unevenness. It can measure both the laser output power of continuous waves and the average power of laser output of repetitive frequency pulse.

II Technical Parameters:

Measurement Range: 0~500W

Display: Dual Polarity 3-1/2 Digit LED Display

Minimum Resolution: 0.1W

Photosensitive Area: Φ28mm

Spectral Range: 9~11um

Wavelength Calibration: 10.6μm

Uncertainty: ±5%

Response Time: 1~3S

Cooling: Water-cooled

Application: CO2 laser tube

Power: AC 220V±10%, 50/60Hz
