Metal and non-metal laser cutting controller system
Model No.:
6332M
Application:
laser metal cutting, non-metal cutting
Product Abstract:
Metal and non-metal laser cutting system is based on the RDC6332M motion controller. Employed with laser metal techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.
parameter
Laser control signals, differential output, TTL, up to 20mA driving ability
PWM frequency 2.5KHz~100KHz. PWM duty ratio 1%~99%
Laser power control : analog voltage,0~5V
PULSE+DIR for motor control, differential output.
Based on USB2.0 for data transferring
General purpose input and output, photoelectric isolation
Linear and circular interpolation, interpolate precision is +/-0.5puse
Description:
System encryption on board
Non-volatile memory on board for user parameters
File storage capacity is up to 256M
The recovery of the power failure memory function
Controller program Updated by software
2 channels laser control, PWM and analog are available
Specific interface for RF CO2 laser
4 axes supported and pulse + dir for motor control
Specific interface for tracing laser head control
Linear, circular and B spline interpolation
Specific functions for metal cutting
Detail:
Environment :0 ~ 70 °C, humidity less than 80%

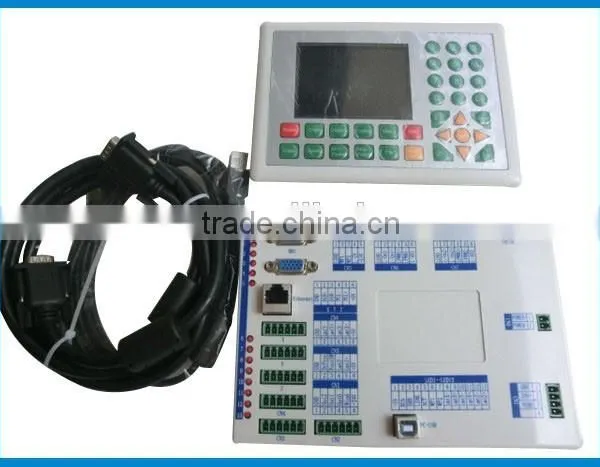

Accessories |

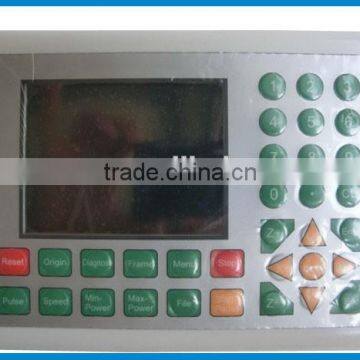

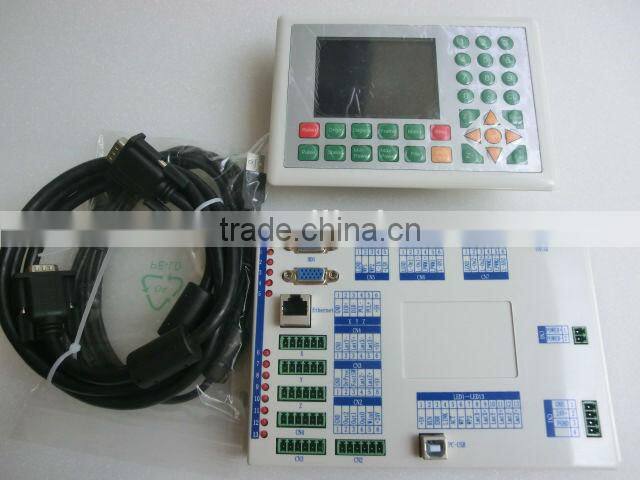

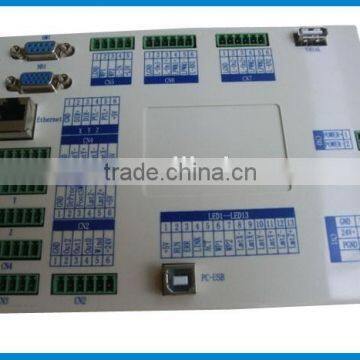

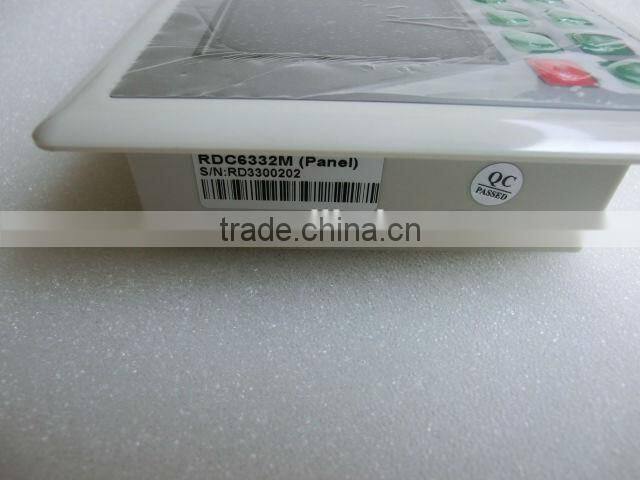

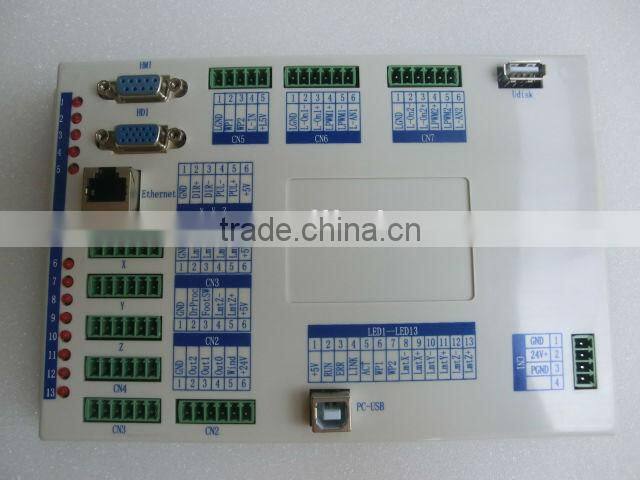

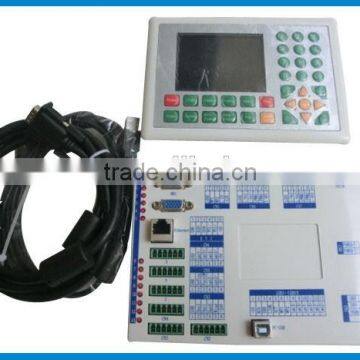

Motherboard, display board, shielded cable, shielded USB cable, 3.81mm terminal |
Master Card Size |
170mm x 120mm |
Expansion interface board size |
No |
Power supply : |
24V/3A |
