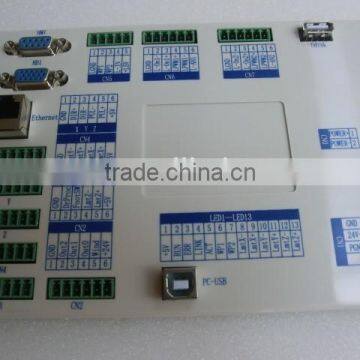

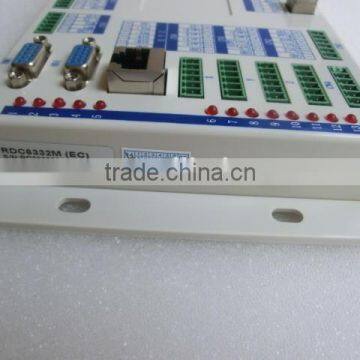

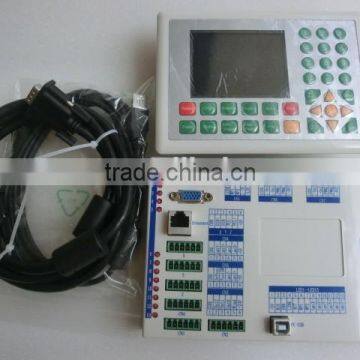

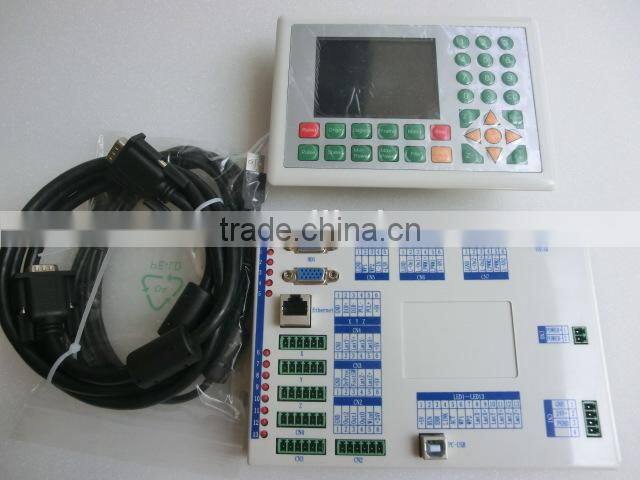

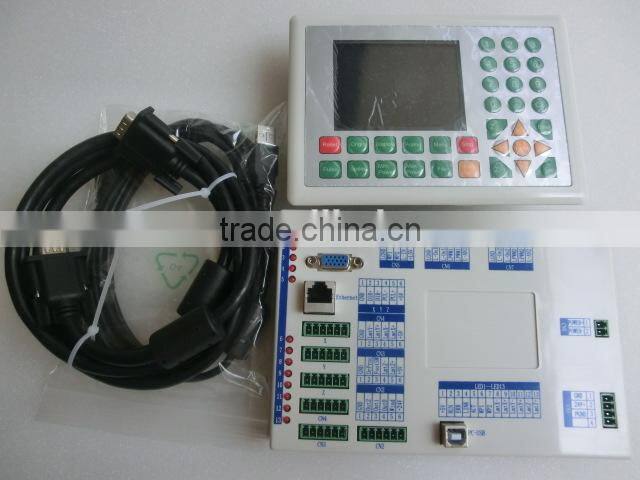

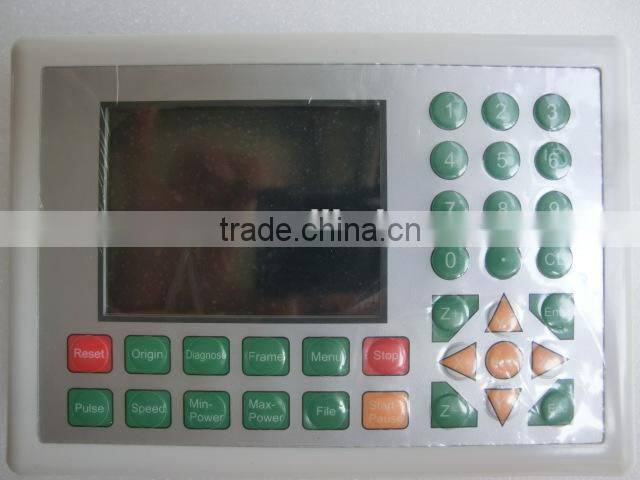

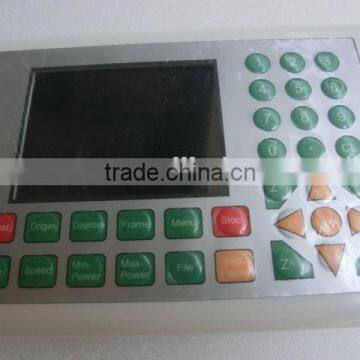

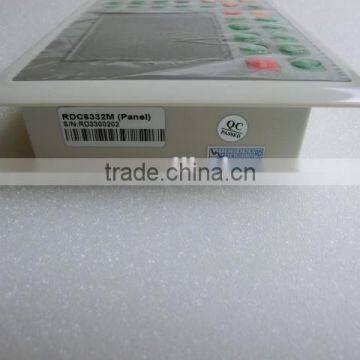

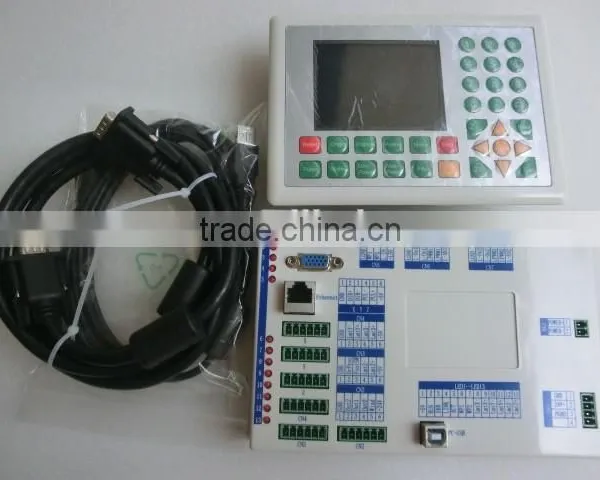

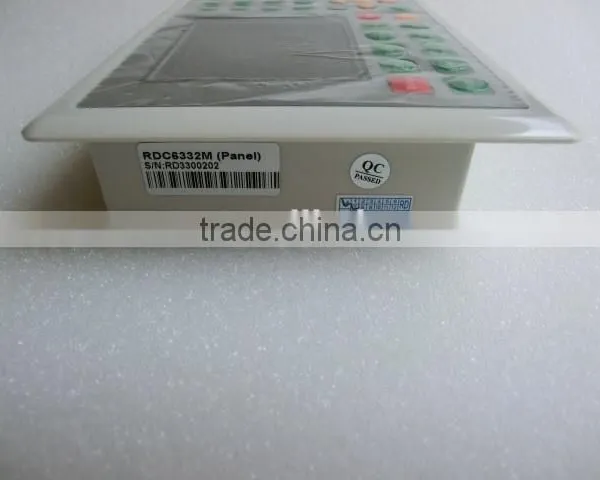

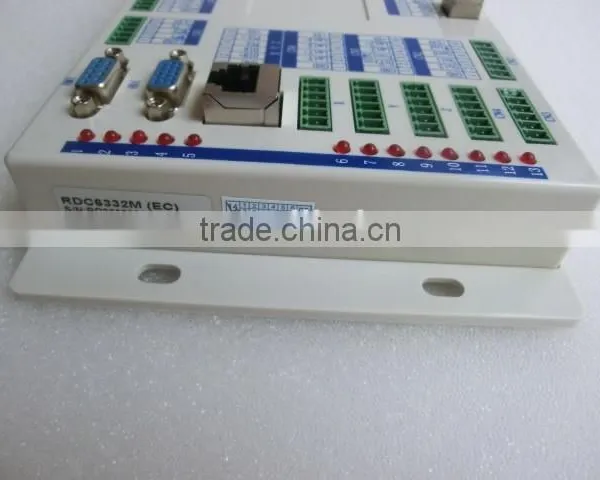

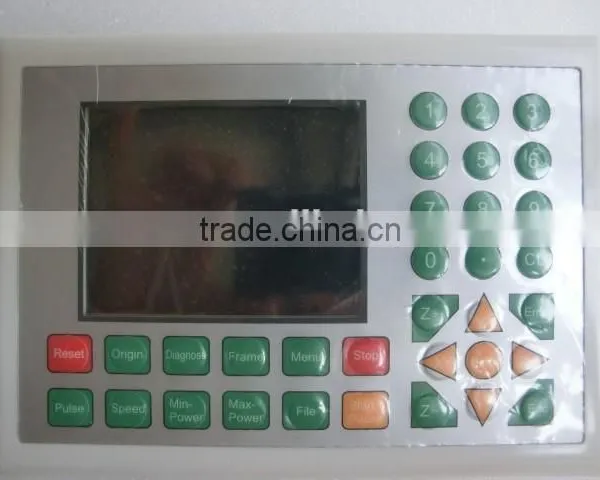

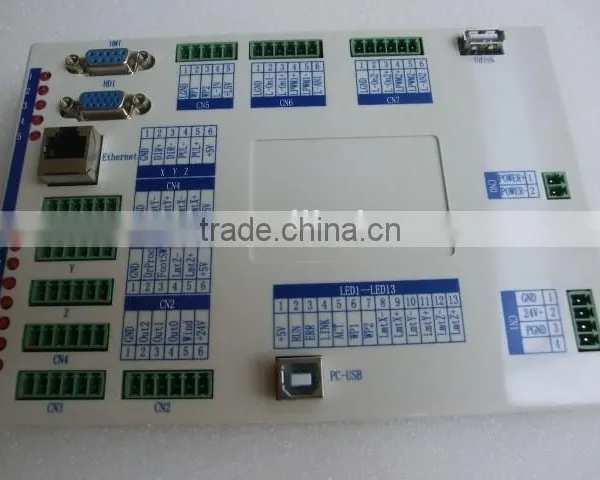

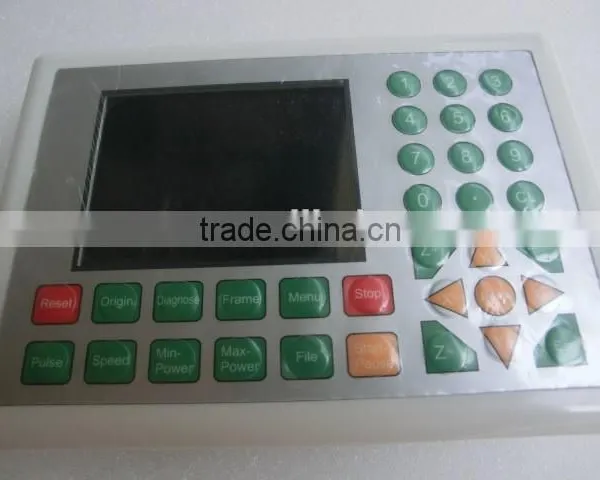

RDC6332M

RDC633xM laser metal cutting control system is a high cost performance control system which is developed
by RuiDa Technology specializing in sheet metal cutting market based on the mature RDC633xG hardware
platform, It can control following head height sensing controller and auxiliary gas control. Form a complete set of
application software designed for the special process of metal cutting of various extra functions. Including micro
joints, ins and outs setting, internal model and external model process Settings etc, which improve the flexibility
of the system application

Laser control signals, differential output, TTL, up to 20mA driving ability

PWM frequency 2.5KHz~100KHz. PWM duty ratio 1%~99%

Laser power control : analog voltage,0~5V

PULSE+DIR for motor control, differential output.

Based on USB2.0 for data transferring

General purpose input and output, photoelectric isolation

Linear and circular interpolation, interpolate precision is +/-0.5puse

System encryption on board

Non-volatile memory on board for user parameters

File storage capacity is up to 256M

The recovery of the power failure memory function

Controller program Updated by software

2 channels laser control, PWM and analog are available

Specific interface for RF CO2 laser

4 axes supported and pulse + dir for motor control

Specific interface for tracing laser head control

Linear, circular and B spline interpolation

Specific functions for metal cutting
