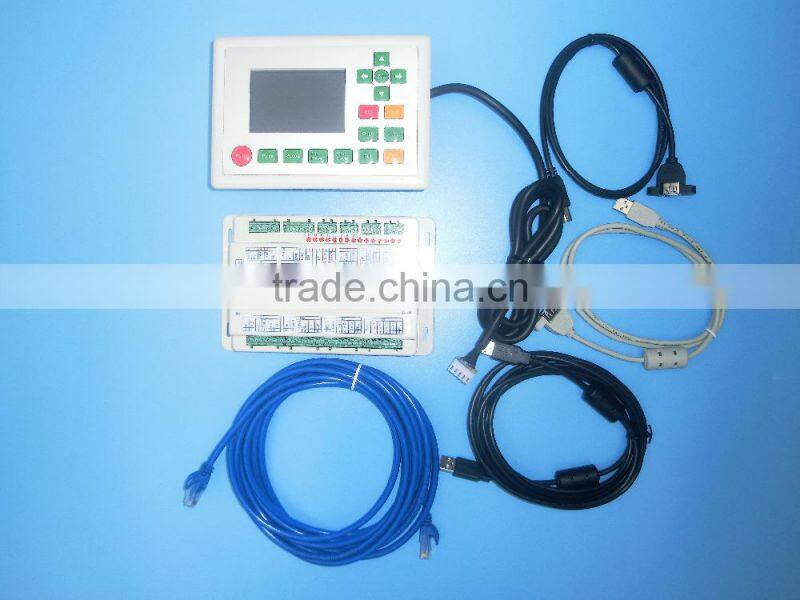

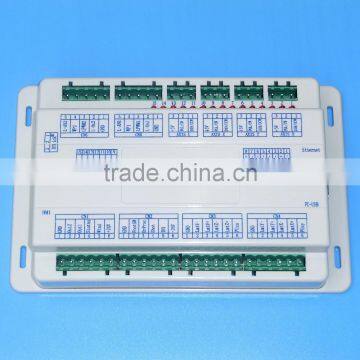

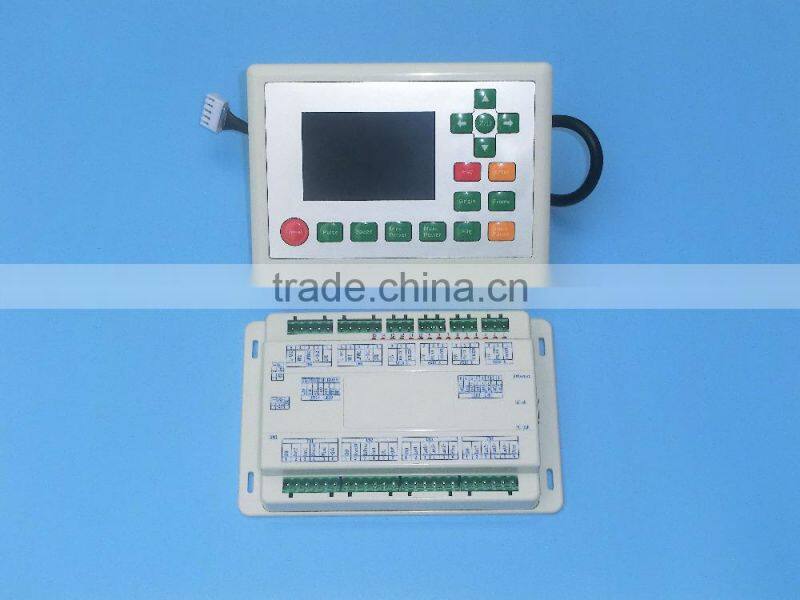

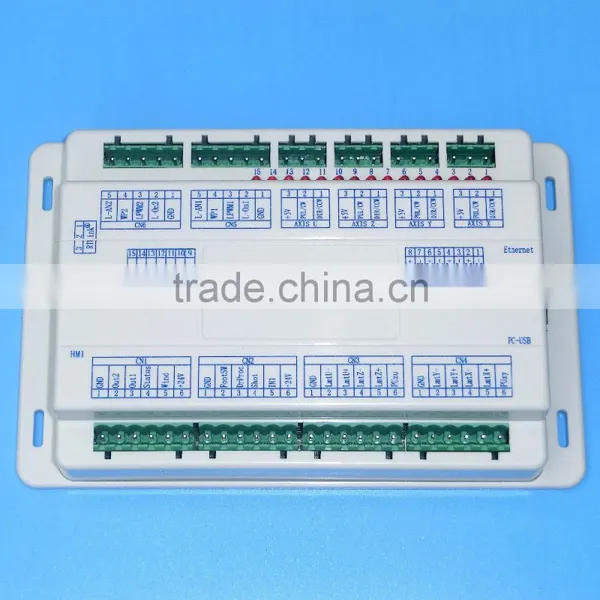

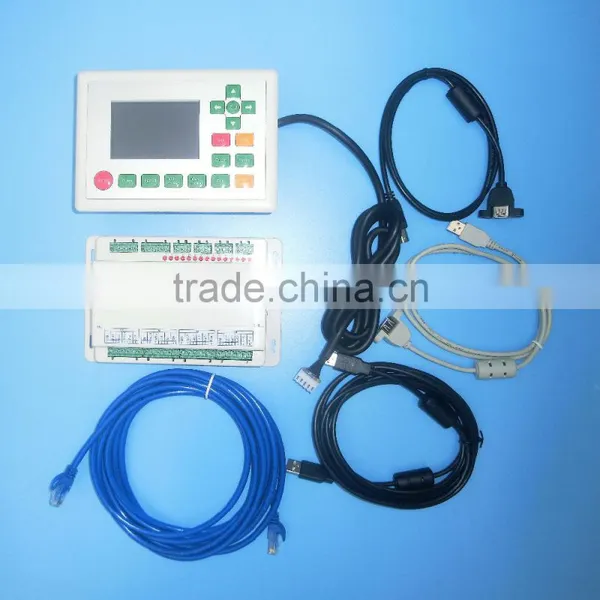

Ruida RDC6442G CO2 Laser Controller, Laser Cutting and Engraving Controlling System, Control Card, DSP Controller

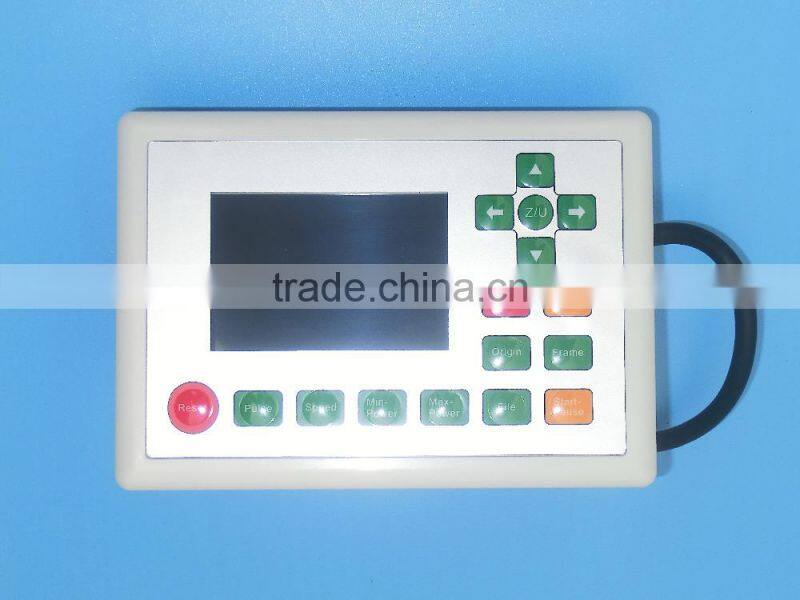

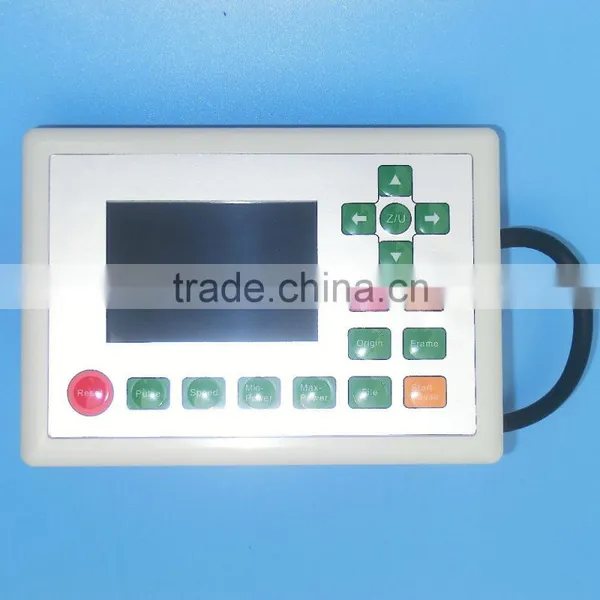

2.With true color TFT screen, the board can display the true colors of machine image, and also show the actual coordinates of the laser head.

3.The status bar can indicate the frame size of the current file, and the status of network connection, etc.

4.Preview of the file drawing saved in the memory is available. The refresh speed is incomparable in China.

5.Display the machining track and coordinates dynamically.

6.Dynamically display the machining process bar of the whole image.

7.Be able to correct the machining parameters of each layer on the operational board (e.g. speed, power, etc), and be able to save the modified layer parameters automatically for future use (this function is unavailable in the similar products from other Chinese manufacturers. ).

8.Support continuous engraving after power-down and work-hour preview (Accurate to the millisecond, and the preview values are exactly same as the real work timing, which is incomparable in China).

9.Support feed, up-and-down, rotary engraving, left-and-right moving, etc.

10.RDC644XG is the latest generation of laser engraving / cutting control system, with hardware stability, resistance to high pressure, and resistance to electrostatic interference.

11.This controller adopts enhanced motion control algorithm, the machining speed and efficiency of which are unmatched at rivals.

Digital laser control signal

(1) TTL level output , 50mA drive capability

(2) PWM Adjustable Frequency 2K ~ 50K

(3) PWM duty cycle of 1% to 99 % adjustable

OC motor control signal output , 300mA drive capability

Maximum motor control pulse frequency 500KHZ

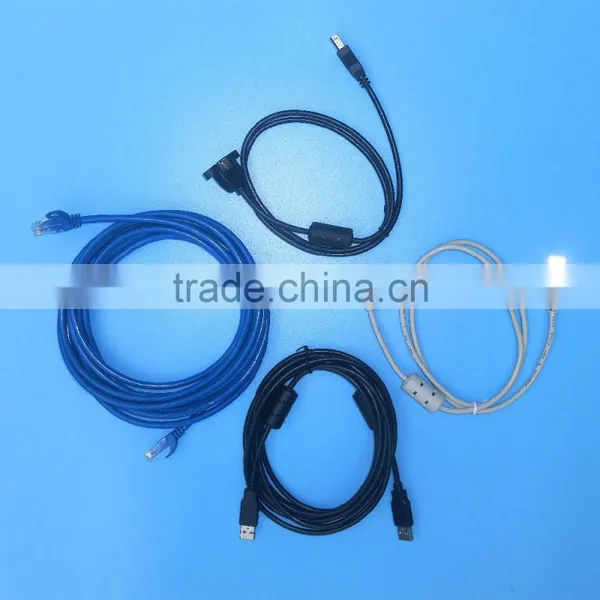

The maximum transfer rate of USB 12M, the longest distance 5 m

Line / circle / B -spline interpolation accuracy + / -0.5 pulse

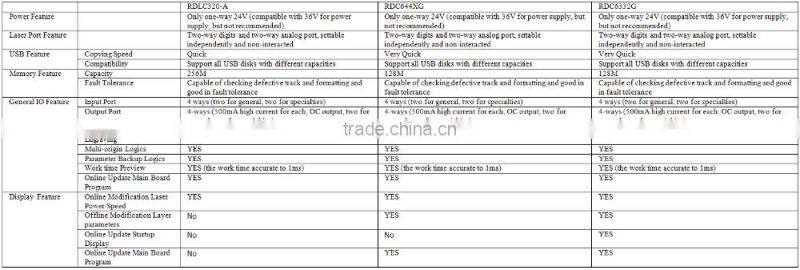

RDC644XG

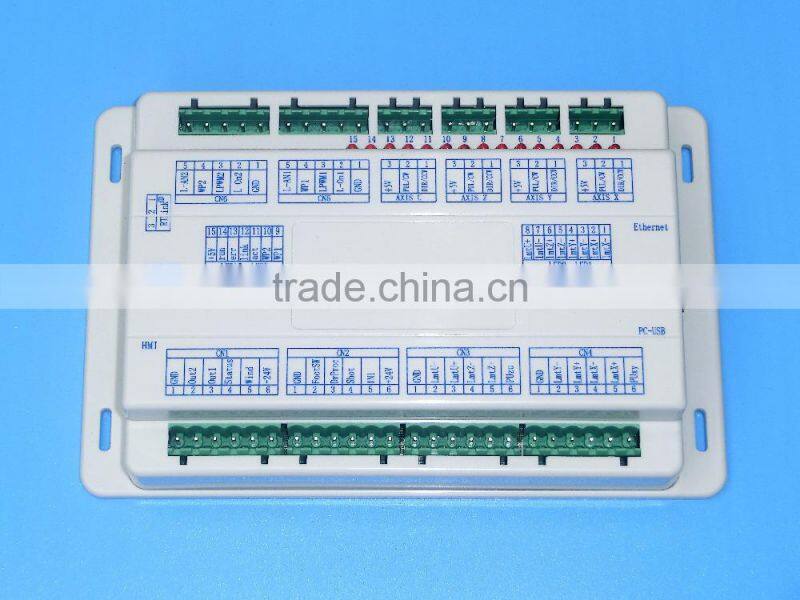

4 -way universal optical isolation OC gate output , maximum 500mA drive capability ( with freewheeling protection )

4 Universal opto-isolated inputs , compatible logic levels 5V/12V/24V

The controller comes with a full year warranty since the formal acceptance date.

Shenzhen Reliable Electromechanical Technology Company is a professional laser equipment supplier, committed to the R&D, production and sales of laser marking machine, laser cutting machines and laser engraving machines, as well as laser equipment parts.
