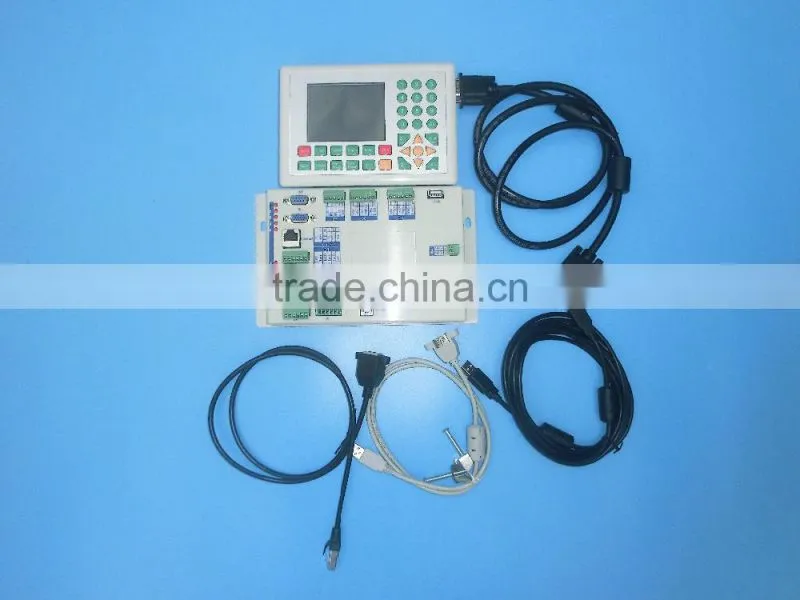

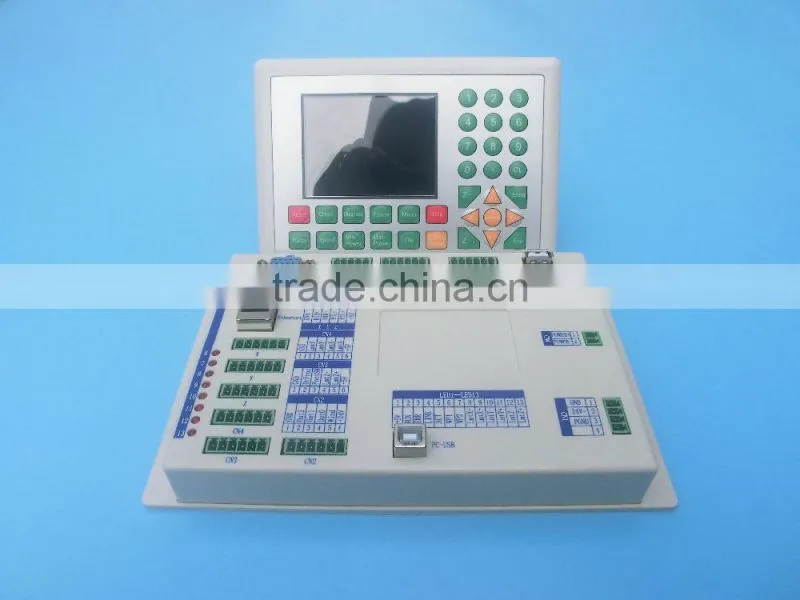

Ruida RDC6332G CO2 laser controller, laser cutting and engraving system, DSP controller, controlling two laser heads separately
1.Ethernet(10/100M) and USB2.0 transmission (three times faster than RDLC320-A).

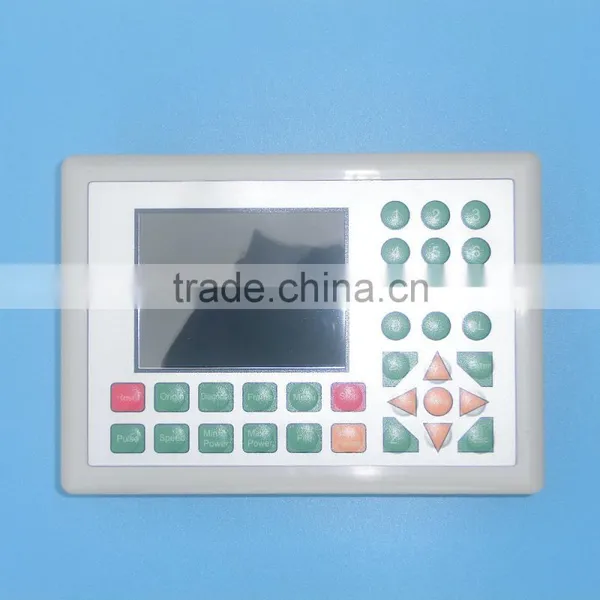

2.With true color TFT screen, the board can display the true colors of machine image, and also show the actual coordinates of the laser head.
3.Preview of the file drawing saved in the memory is available. The refresh speed is incomparable in China.
4.Display the machining track and coordinates dynamically.
5.Be able to correct the machining parameters of each layer on the operational board (e.g. speed, power, etc), and be able to save the modified layer parameters automatically for future use (this function is unavailable in the similar products from other Chinese manufacturers. ).
6. Powerful mouse actions support. (Users can operate with a mouse on our operational board, which is unavailable in the similar products from other Chinese rivals and is very popular among our foreign clients.).
7.Support continuous engraving after power-down and work-hour preview (Accurate to the millisecond, and the preview values are exactly same as the real work timing, which is incomparable in China).
8.Support feed, up-and-down, rotary engraving, left-and-right moving, etc.
9.RDC633XG is the latest generation of laser engraving / cutting control system, with hardware stability, resistance to high pressure, and resistance to electrostatic interference.
10. Based on LINUX platform, the man-machine operation system has more user-friendly interface and powerful functions.
11.This controller adopts enhanced motion control algorithm, the machining speed and efficiency of which are unmatched at rivals.

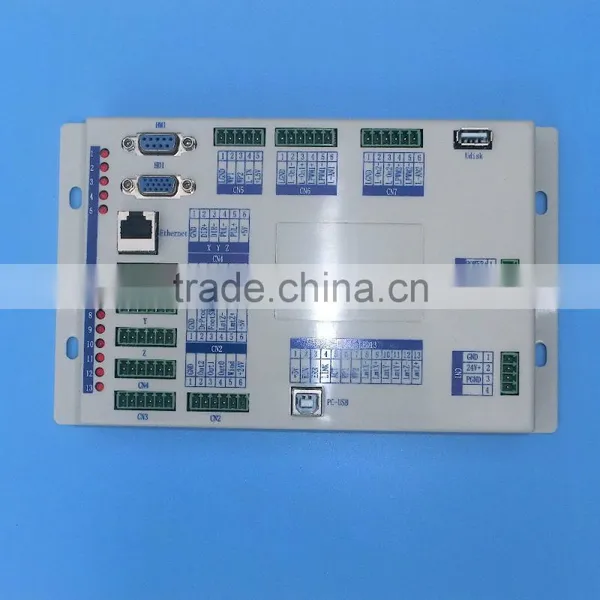

RDC633XG Core Technology Development System is the latest generation of laser engraving / cutting control system , the control system has more hardware stability, more resistance to high pressure, static interference characteristics. Based on LINUX platform, the man-machine operation system has more user-friendly interface and powerful functions. The controller includes better and more superior motion control functions , large file storage , compatibility stronger dual independently adjustable laser power control interface , compatibility stronger U disk driver , multiple generic / private IO control, integration of dedicated time system to support hardware encryption algorithm, communication with PC supports Ethernet communications and automatic optional USB communication and so on.
Digital laser control signal
(1) Differential output, TTL level, 20mA Driving ability
(2) PWM frequency 2.5K ~ 100K for adjustable
(3) PWM duty ratio 2% ~ 98% for adjustable
Analog laser control signal 0 ~ 5V automatically tracing adjust
Motor control signal differential output, TTL level, 20mA driving ability
Motor control pulse frequency maximum 500KHZ
USB maximum transmission rate 12M, the longest distance is 5 meters
Line/arc/B spline interpolation accuracy +/- 0.5 pulse
4 –way general photoelectric isolation OC gate output, the maximum 600mA driving ability
4 –way General photoelectric isolated input , TTL level
Comparison of Controller Performance
The controller comes with a full year warranty since the formal acceptance date.
Shenzhen Reliable Electromechanical Technology Company is a professional laser equipment supplier, committed to the R&D, production and sales of laser marking machine, laser cutting machines and laser engraving machines, as well as laser equipment parts.
