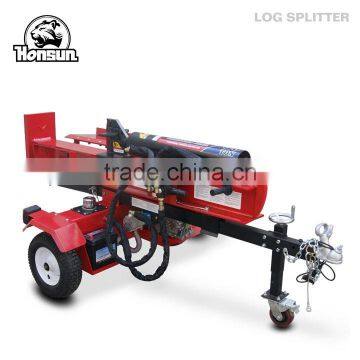

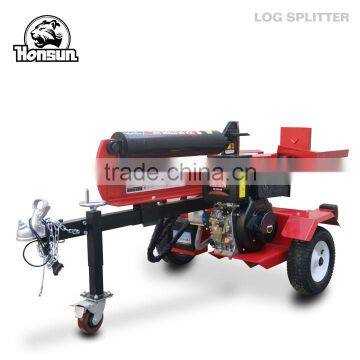

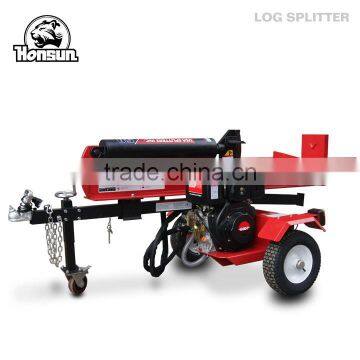

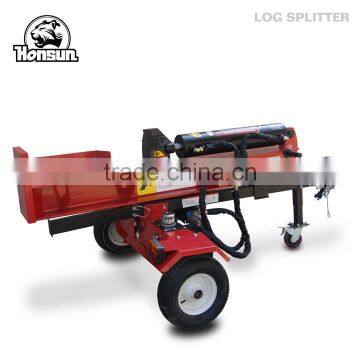

(HS-LS-50TD) With CE Cetification Kohler (USA), Koop (China) Engine Veitical and Horizontal Diesel Power Log Splitter 50ton
US$ 940 - 980
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Log Splitter
Use:
Split log wood into pieces
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
(HS-LS-50TD) With CE Cetification Kohler (USA), Koop (China) Engine Veitical and Horizontal Diesel Wood Splitter 50tonUS$ 940 - 980MOQ: 1 Piece -
(HS-LS-50TD) With CE Cetification Kohler (USA), Koop (China) Engine Hydraulic Diesel Motor Log Splitter 50 TonUS$ 860 - 900MOQ: 1 Piece
-
(HS-LS-50TD) With CE Cetification Kohler (USA), Koop (China) Engine Hydraulic Diesel Motor Wood Splitter 50 TonUS$ 920 - 980MOQ: 1 Piece
-
(HS-LS-50TD) With CE Cetification Kohler (USA), Koop (China) Engine Hydraulic Diesel Motor Log Splitter 50tonUS$ 996 - 1,112MOQ: 1 Piece
-
Germany Hanover Fair Exhibited Forestry Machinery With Hydraulic Cylinder China Cheap Diesel Engine Log Splitter 50tonUS$ 860 - 900MOQ: 1 Piece
Condition
New
Type
Log Splitter
Use
Split log wood into pieces
Power Type
Diesel
Production Capacity
50 ton
Place of Origin
Shandong, China
Brand Name
HONSUN
Model Number
HS-LS-50TD
Dimension(L*W*H)
2300*1150*960mm
Weight
285kg
Certification
CE
Warranty
2 years
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
| √ | Model No. | HS-LS-50TD |
| √ | Manufacturer | Honsun |
| √ | Pre-assembled | No |
| √ | Engine brand | Kohler (USA), Koop (China) |
| √ | Displacement | Kohler 442cc, Koop 406cc |
| √ | Horse power | Kohler 9.8hp, Koop 9.0hp |
| √ | Engine start | Electric start |
| √ | Splitting method | Vertical and horizontal |
| √ | Max log length | 25" |
| √ | Max log diameter | 25" |
| √ | Hydraulic cylinder | 5"x25" |
| √ | Ram travel | 25" |
| √ | Cycle time | 12 seconds |
| √ | Wedge | 4 way blade (2 way available), replaceable, sharpenble |
| √ | Max force | 50ton |
| √ | Control valve | 100L three position with auto-return (one or two handle available) |
| √ | Hydraulic filter | Yes |
| √ | Pump | 22 gallon, 2 stage |
| √ | Tank capacity | 36L |
| √ | Log cradles | Included |
| √ | Oil and temperature gauge | Included |
| √ | Standard tire | 16x6.5-8 |
| √ | Vacuum tire | 16x4.0-8 |
| √ | Fenders | Included |
| √ | Log guardian | Included |
| √ | Tow hitch | 2" America, Australia, Europe and New Zealand types |
| √ | OEM | Acceptable |
| √ | Consumer warranty | 24 months |
The Pro's Choice
| • | Kohler KD420 9.8hp diesel engine configuration option |
| • | With rear light and license plate light, signal synchronized with the car |
| • | Special design, oil tank can be widely opened to get rid of silt |
| • | Backplate with pierced design, deform difficulty |
| • | Front wheel with lift |
| • | Oil and temperature gauge, can see oil ullage obviously |
Engine Details
| Engine brand | KOOP |
| Type | 186SF(E) |
| Horse power | 9HP |
| Rated power | 6.3kw |
| Displacement | 406cc |
| Bore | 86mm |
| Stroke | 70mm |
| Weight | 45lbs |
