US$ 300 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wood Chipper
Use:
Chipping Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Wood Chipper
Use Chipping Wood
Power Type Diesel
Production Capacity 100%
Place of Origin Henan, China
Brand Name Yigong
Model Number YG-PX
Dimension(L*W*H) Depend on wood chipper
Weight 2.8t, 0.2-3T fow wood chipper
Certification ISO,CE,BV,SGS
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

  wood chipper price

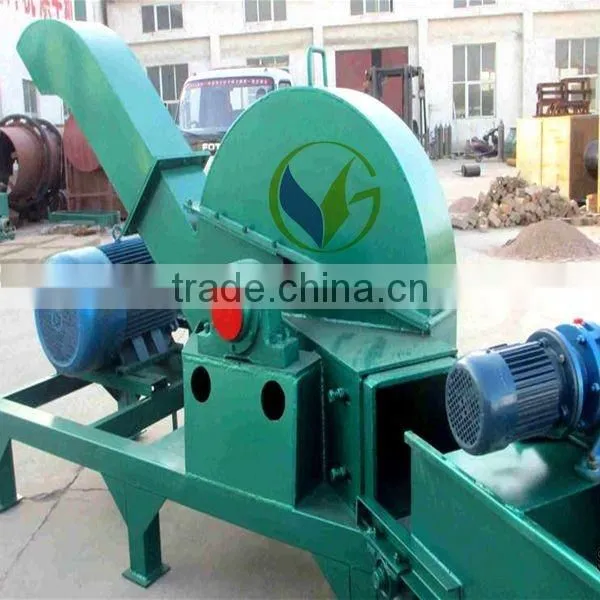

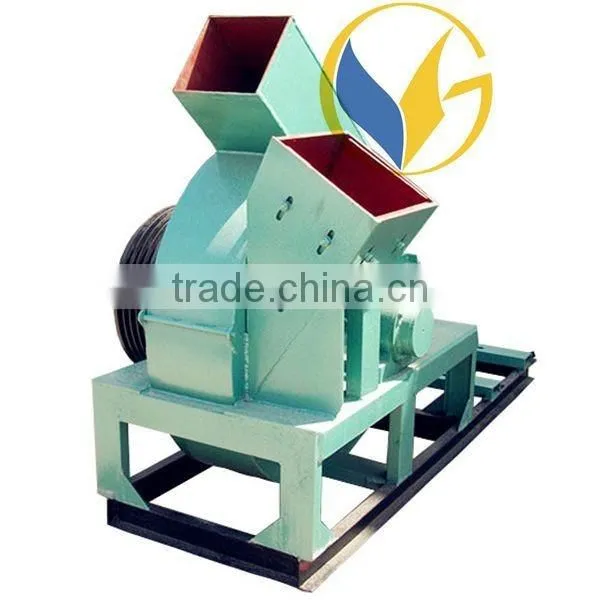

wood chipper priceIntroduction of wood chipper
Wood chipper machine also called wood slice machine, common type have disc and drum type . The size can be raw materials including logs, slab, veneer, bamboo, brushwood, corn stalk, cotton stalk, reed and other non wood fiber rod cutting into homogeneous sheet stock, stock piece length according to need to be in a certain range adjustment. Is paper industry, plank industry way before the production of ideal equipment.

wood chipper price
1.Application of wood chipper

Our company produces the chipper disc chipper, wood chipper, miscellaneous wood chipper, wood chipper is the production of high quality wood a special wood chipper, widely used in papermaking, particle board factory, and high density fiberboard factory, stubble factory, biomass power plant, wood factory, and other industrial and manufacturer of production preparation section before the preferred equipment. The main cutting raw material is peeling after the trail wood, bamboo, slab materials and cutting time fuelwood excess material, etc.

 wood chipper price

2.The principle of work of wood chipper
Timber by feed port into, when wood according to contact to peel and cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, cut cut pieces of wood in the peel and cut indoor by cutting knife plate wind leaf produced by the high speed flow send out.

 wood chipper price


3.Structure composition
Mainly by the stand, feed port, cutter, casing, chipping blade and electronic component, the machine can according to need to adjust the peel and cut blade, the production of different specifications and thickness of the chip.

4.Equipment advantage

wood chipper price
1), New chipper large disk chipper, roots chipper, plate cutting machine, wood flaking machine, wood slice machine high output, low energy consumption, wood chip high quality, cost-effective.

2), Chipper disc chipper compact structure, rational layout, easy installation, operation and maintenance convenience, high productive capacity; Cutting log, high quality wood, and wood chip length can be in within the prescribed scope of free adjustment, is the domestic advanced woodworking machinery equipment.

3), Disc chipper production, user can choose according to need model.


5.Technical parameters of wood chipper

Model

Blade

number

Input size

(mm )

Diameter

( mm )

Blade size

(mm)

production

( t/h )

Spindle speed

( r/min )

power

(kw )

Physical size

(mm)

ALS420

3

150*150

420

150*70*8

0.6-1.5

600

7.5

1200*500*800

ALS600

3

180*150

600

200*100*10

1.5-3

600

15

1500*570*1050

ALS700

3

190*200

650

230*120*12

2-6

600

18.5

1500*680*1100

ALS800

4

200*200

735

230*120*12

3-8

550

30

1850*730*1240

ALS950

4

230*250

830

250*120*12

5-10

550

37

1900*820*1800

ALS1150

4-6

300*300

1150

340*150*14

8-13

600

75

2560*1150*1800

ALS1410

4

400*400

1410

480*170*18

10-16

600

110

2900*1400*2350

wood chipper price
If you want to order the disk wood chipper, please kindly tell us several information as follows:
1. please tell us your demanded capacity, (kg/h, or CBM/h).
2. please tell us the size of your demanded wood chips, including thickness and length, (mm).
3. please tell us the diameter of your wood, (mm).
4. please tell the final usage of the wood chips.
5. please tell us your nearest port in your country.
6. if your raw material also include branch, board, waste furnature, small wood block, and wood barks, please kindly tell us, we will suggest you our wood drum chipper.
