Detailed Product Description:
1:ISO9001
2:CRCC
3: First level supplier China

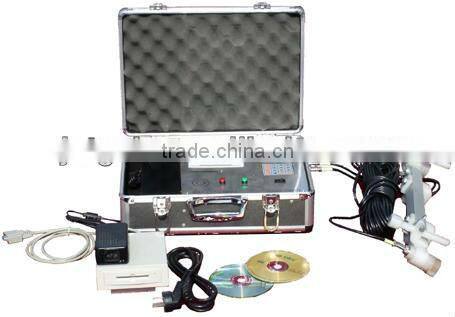

CS - Ⅱ type intelligent train velocimeter, is according to the road and line construction work of the actual need to research and development of new products. The instrument has high degree of intelligence, the function is much, simple operation, accurate speed, the use of safe, applicable scope, cost performance is good wait for a characteristic. Applicable to train amble lots of speed and monitoring, and can be used in the yard camel bee, grow up curve, electrification section and any need to test the speed of the train operation occasion. The railway line overhaul, road and other departments extensive application safety surveillance and monitoring of the ideal equipment.
This product standard reference TB/T2625-1995.
Users in the first use of this product must be carefully reading instruction.
Technical parameters:
1, speed range: 4, 200 km/h
2, speed measuring precision: acuities plus or minus 1.5% v
3, working voltage range: 12 v DC
4, static working current: acuities 35 mA DC
5, working power supply: 12 vups power supply (rechargeable)
Six, two sensor installation center distance: 400 mm ± 1 mm
7, print speed: 128 Chinese characters per minute
8, liquid crystal display digits: four
Article 9, maximum storage record number: 415 a
10, read, and write cartoon - baud rate: 9600 bit/s
11, sampling signal wire length: single root 10 m
12, main engine operating temperature: °C to + 50 °C
13, humidity: 90% RH or less
14, IC card capacity: 8 k
15, sensor to adapt to the rail type: 50,60,75 kg/m
16, weight: acuities 6 kg
17, the outlook size: 290 x 255 x 100 mm
