Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > Tool Holder ER DIN6499 Collet Chuck
Tool Holder ER DIN6499 Collet Chuck
US$ 4 - 19
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
cuttingcraft
Model Number:
ER DIN6499 Collet Chuck
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Durable 90 Degree 1/4" Hex Offset Angle DriverUS$ 1 - 20MOQ: 200 Pieces -
70W 3-10mm Electric Drill Bit Grinder Sharpening MachineUS$ 8 - 15MOQ: 300 Pieces
-
Alloy Taper Shank Milling CutterUS$ 1 - 10MOQ: 100 Pieces
-
Thread Shank Milling CutterUS$ 1 - 10MOQ: 100 Pieces
-
Shell End MillUS$ 3 - 90MOQ: 10 Pieces
Place of Origin
Sichuan, China
Brand Name
cuttingcraft
Model Number
ER DIN6499 Collet Chuck
Application
Other, ER collet chuck, Clamping the drill bit
Tool Holder ER DIN6499 Collet Chuck
Product Description
ER DIN6499 Collet Chuck
Taper Standard of the shank:
1. Material: Allyed case hardness steel, black-finished and precisely grinded.
2. Taper tolerence: <AT30
3. Hardness: HRC 56-58
4. Carbon depth: 0.8mm±0.2mm
5. Max run out: <0.005mm
6. Surface Roughness: Ra<0.005mm
7. The standard of shank: MAS 403 and B6339
8. Application: Used for clampling tools which straight shank in collets of DIN 6499.

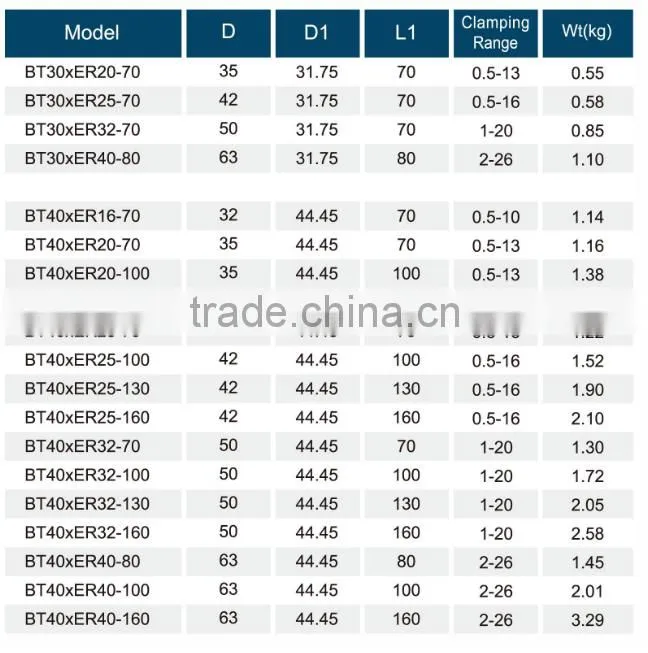

The size of the ER DIN6499 Collet Chuck :
The package : Machine Tools Accessories ER DIN6499 Collet Chuck Tool Holder
